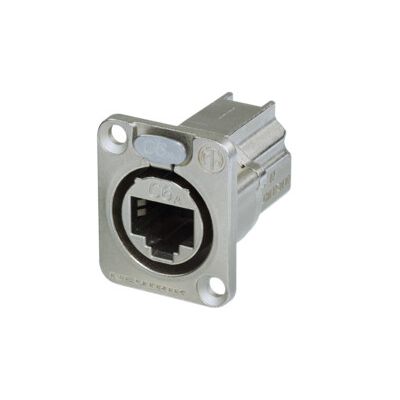

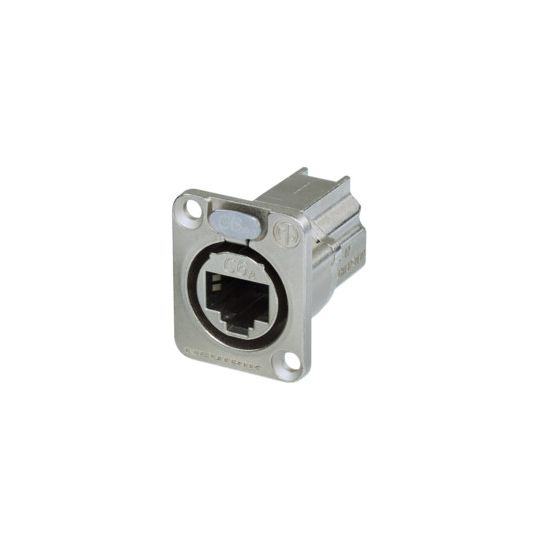

Neutrik | NE8FDX-P6 - EtherCON CAT6A chassis conn nickel Fem

Neutrik | NE8FDX-P6

D-shape CAT6A panel connector, shielded, feedthrough, Nickel housing

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Features

• Ruggedized connector with CAT6A component compliance
• 10 Gbit/s (CAT6A) transmission speed
• PoE type 4 class 8 (100W) acc. IEEE 802.3bt
• Rugged latch lock system million fold proven
• Intermateable with the existing etherCON CAT5 range
• Shielded system - high noise immunity and EMI protection

• Product: NE8FDX-P6
• Gender: Female

Electrical

• Dielectric strength: 1 kVdc
• Insulation resistance: > 0.5 GΩ
• Rated current per contact: 1.5 A
• Rated voltage: ≤ 57 V
• Transmission performance: 10 Gbit/s (CAT6A)
• Power over Ethernet: PoE type 4 class 8 (100W) acc. IEEE 802.3bt

Mechanical

• Lifetime: > 1000 mating cycles
• Wiring: Feedthrough
• Locking device: Latch lock
• Mounting direction: Front mounting

Material

• Contact plating: Au
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Locking element plating: Nickel

Environmental

• Flammability: UL 94 V-0
• Railway standard: EN 45545 R26
• Temperature range: -40 °C to +70 °C
• Standard compliance: ISO/IEC 11801-1 Ed. 1.0 (2017-11)
• Standard compliance: IEC 60603-7-3 Ed.2.0 (2010-04)
• Standard compliance: IEC 60512-99-002 Ed.2.0 (2022-01)
• Standard compliance: IEC 60512-9-3 (2011-06)
• Standard compliance: EN 45545-2:2020+A1:2023 (R26, clause 4.2, clause 4.3.2)
