Neutrik - NC3MAV - CHASS. CON. MALE 3POLE V
Neutrik - NC3MAV - CHASS. CON. MALE 3POLE V

Neutrik - NC3MAV - CHASS. CON. MALE 3POLE V

€1.13 Excl. Tax
Availability:
In stock
Art. code
NE-81.0109

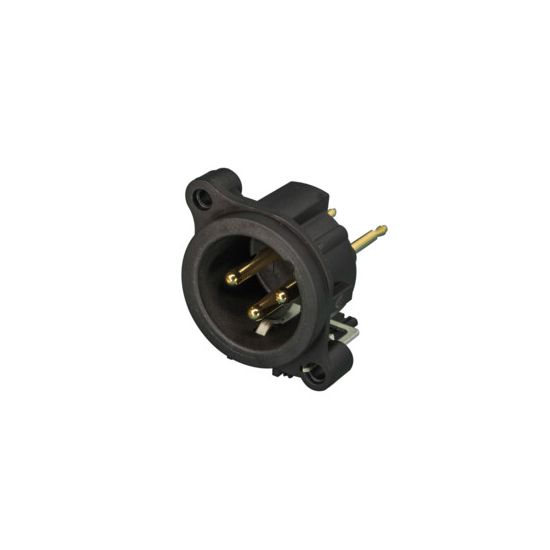

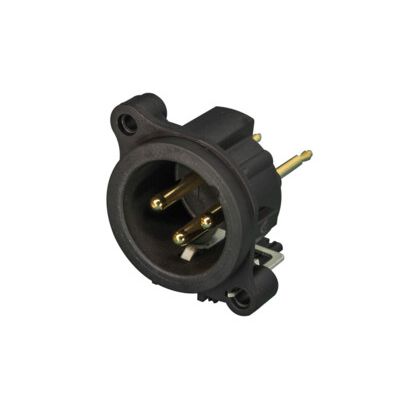

Neutrik | NC3MAV - XLR Chassis A Connector 3 Pole Male

3 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount.

The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). Hard gold plated contacts with polished contact areas. UL recognized component.

Features
  • Smallest XLR receptacles, highest packing density
  • Plastic housing
  • Polished contact areas and hard gold plating
  • Housing flammability UL94 V-0

Product: NC3MAV
Connection Type: XLR
Gender: male

Electrical

  • Capacitance between contacts: ≤ 4 pF
  • Contact resistance: ≤ 6 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 6 A
  • Rated voltage: < 50 V

Mechanical

  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize:
  • Wiring: vertical PCB mount
  • Locking device: Latch lock
  • Mounting direction: Rear mounting
  • Chassis shape: A
  • Mounting: A-Screw

Material

  • Contacts: Brass (CuZn39Pb3)
  • Shell: Polyamide (PA 6.6 30 % GR)

Environmental

  • Approvals: UL
  • Flammability: UL 94 V-0
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
More Information
Brand Neutrik
