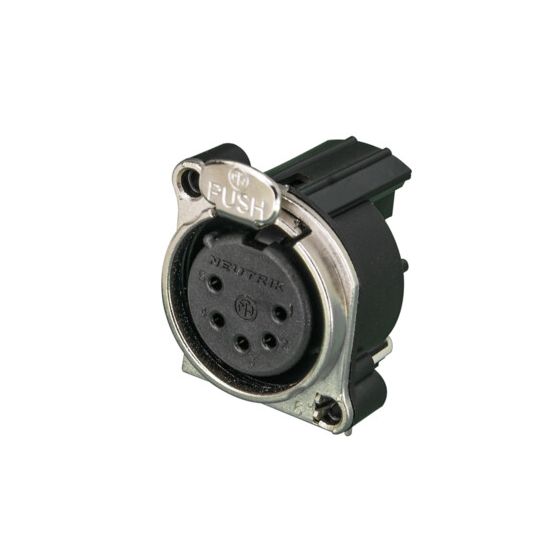

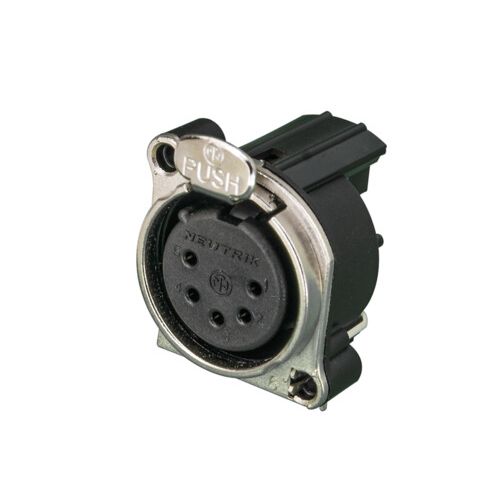

5 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount.

Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice.

• Smallest XLR receptacles, highest packing density
• Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
• Fork type female contact
• Housing flammability UL 94 V-0

Product: NC5FBH
Connection Type: XLR
Gender: female

Electrical

• Capacitance between contacts: ≤ 7 pF
• Contact resistance: ≤ 6 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 3 A
• Rated voltage: < 50 V
• Grounding Options: Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1

Mechanical

• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: Horizontal PCB mount
• Wiring: Horizontal PCB mount
• Locking device: Latch lock
• Mounting direction: Rear mounting
• Chassis shape: B
• Mounting: A-Screw

Material

• Contacts: Bronze (CuSn6)
• Insert: PA66
• Locking element: Steel Ck67
• Locking element plating: Nickel
• Ring: Zinc diecast (ZnAl4Cu1)
• Flange: Metal

Environmental

• Flammability: UL 94 V-0
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
