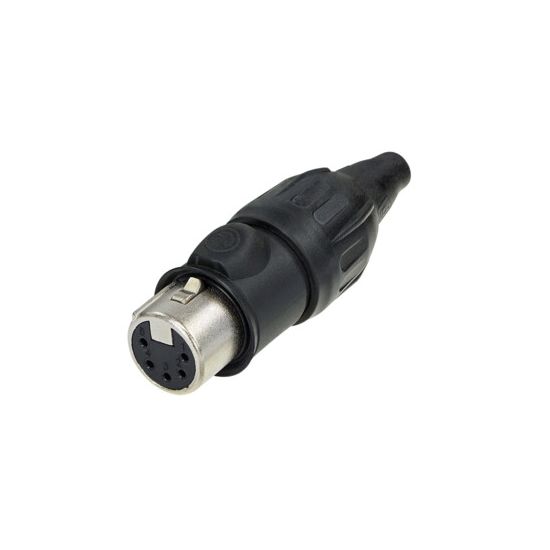

Neutrik | NC5FX-TOP - Cable Connector 5 Pole TOP Female

5 pole female cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts.

The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range.

Features:

  • IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
  • Uses high impact UV-resistant materials
  • Heavy-duty sealed XLR connector range for harsh and demanding environment

Title: NC5FX-TOP
Connection Type: XLR
Gender: female

Electrical

  • Capacitance between contacts: ≤ 4 pF
  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 1.5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 16 A
  • Rated voltage: < 50 V

Mechanical

  • Cable O.D.: 5.0 - 8.0 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.0 mm² / 18 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock

Material

  • Bushing: UV-resistant rubber
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: St3K32 (latch) / Ck 67 (spring)
  • Shell: Zinc diecast (ZnAI4Cu1)
  • Shell plating: Nickel
  • Strain relief: Polyacetal (POM)
  • Sealing jacket: UV-resistant rubber

Environmental

  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP65
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
