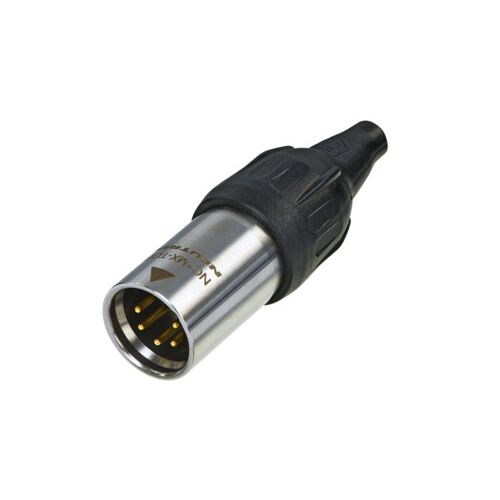

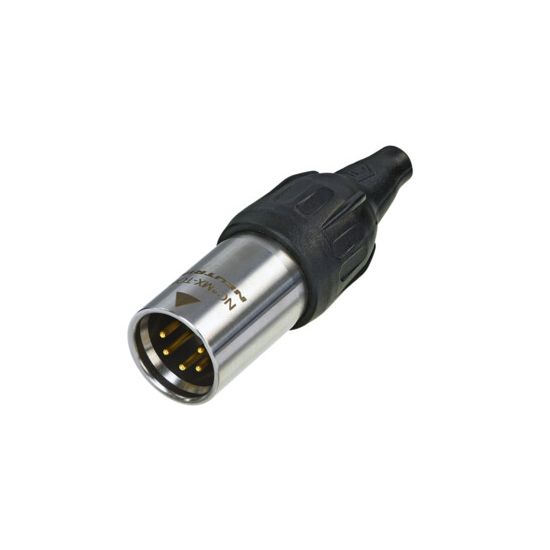

Neutrik | NC5MX-TOP - Cable Connector Male 5 Pole Top

5 pole male cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts.

The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range.

Features

  • Heavy-duty sealed XLR connector range for harsh and demanding environment
  • IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
  • Uses high impact UV-resistant materials
  • Title: NC5MX-TOP
  • Connection Type: XLR
  • Gender: male

Electrical

  • Capacitance between contacts: ≤ 4 pF
  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 1.5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 7.5 A
  • Rated voltage: < 50 V

Mechanical

  • Cable O.D.: 5.0 - 8.0 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.0 mm²
  • Wiresize: max. 18 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock

Material

  • Bushing: UV-resistant rubber
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 66)
  • Locking element: Stainless steel
  • Shell: Stainless steel
  • Strain relief: Polyacetal (POM)

Environmental

  • Approvals: UL
  • Flammability: UL 94 V-0
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP65
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
More Information
Brand Neutrik
