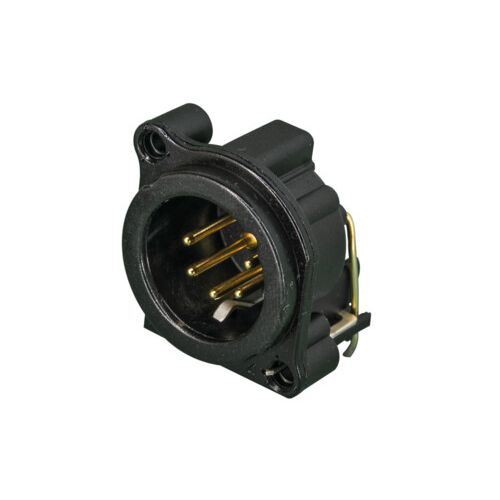

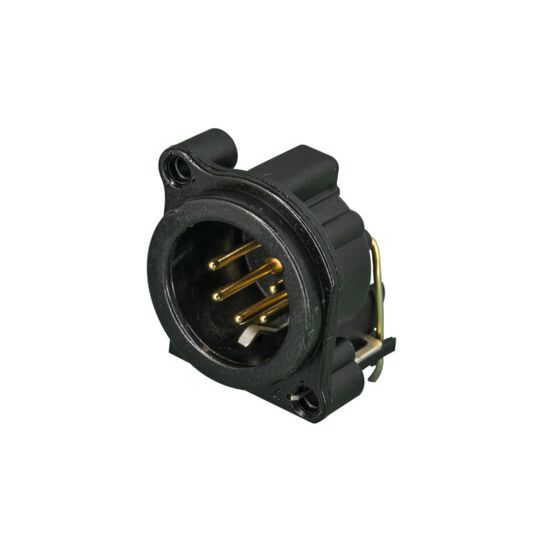

Neutrik | NC5MBH-B - XLR Chassis B Conn. 5 Pole Male Black
Neutrik | NC5MBH-B - XLR Chassis B Connector 5 Pole Male Black
5 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount , black chrome shell.
Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice.
Features
- Smallest XLR receptacles, highest packing density
- Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
- Housing flammability UL 94 V-0
Product: NC5MBH-B
Connection Type: XLR
Gender: male
Electrical
- Capacitance between contacts: ≤ 7 pF
- Contact resistance: ≤ 6 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 3 A
- Rated voltage: < 50 V
- Grounding Options: Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
Mechanical
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wiring: Horizontal PCB mount
- Locking device: Latch lock
- Mounting direction: Rear mounting
- Chassis shape: B
- Mounting: A-Screw
Material
- Contacts: Brass (CuZn35Pb2)
- Insert: Polyamide (PA66)
- Locking element: Steel Ck67
- Ring: Zinc diecast (ZnAl4Cu1)
- Flange: Black Chromium
- Shell coating: Black KTL
Environmental
- Flammability: UL 94 V-0
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
