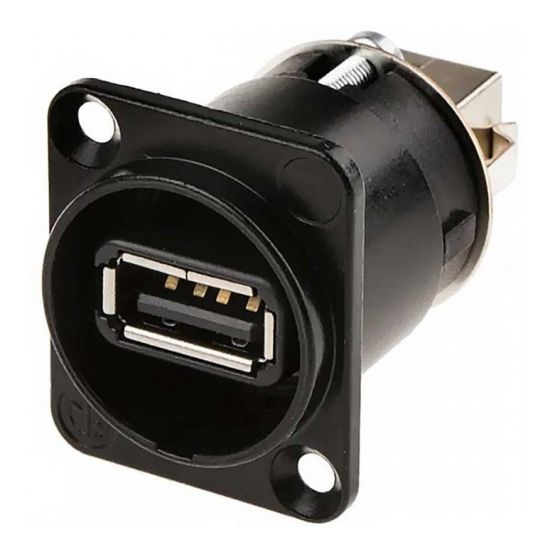

Neutrik | NAUSB-W-B - USB 2.0 gender changer black type A/B

Neutrik | NAUSB-W-B - USB Adapter Chassis D Connector Female

Reversible USB 2.0 gender changer (type A and B), black D-housing.

Due to the rising digitisation the interface problems between audio/video networks, IT equipment, MP3 camcorders, etc. increase. A rugged solution is needed.

Neutrik's reversible USB gender changer, mounted in the standardized D-shape housing, and the rugged patch cables solve this problem.

• Ideal for audio networking and integration of computerbased equipment into audio systems
• IP65 ingress protection in mated condition with NKUSB-* and SCDP-* sealing gasket
• Optional screen to chassis grounding
• USB 2.0 gender changer type A-B (B-A)
• Reversible insert offering type A or B on front or rear end
• Universally accepted standard D-shape housing

Product: NAUSB-W-B
Connection Type: Adapter
Gender: female

Mechanical

• Mounting direction: Front mounting
• Chassis shape: D
• Lifetime: > 1000 mating cycles

Material

• Contact plating: Au
• Contacts: Bronze (CuSn)
• Insert: PVC
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black chromium

Environmental

• Flammability: UL 94 V-0
• Standard compliance: USB 2.0 specifications
• Temperature range: -25 °C to +85 °C
