Neutrik | NAC3MX-W-TOP-L-D - PowerCON TRUE1 M [100 pieces]
Neutrik | NAC3MX-W-TOP-L-D - PowerCON TRUE1 M [100 pieces]

Neutrik | NAC3MX-W-TOP-L-D - PowerCON TRUE1 M [100 pieces]

List price:
€840.63 Excl. Tax
Your price:
€798.60 Excl. Tax
Your discount: 5%
Last stock:
1000 pieces
Art. code
NE-81.4157

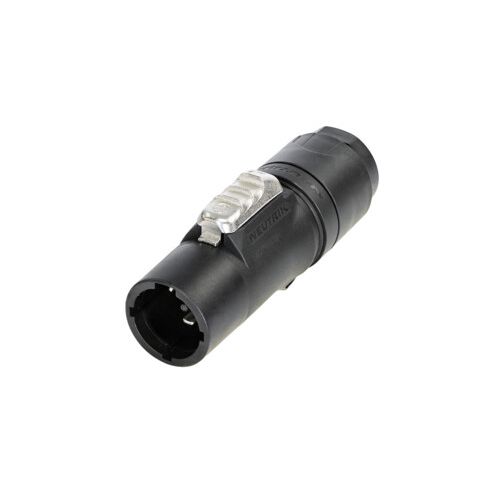

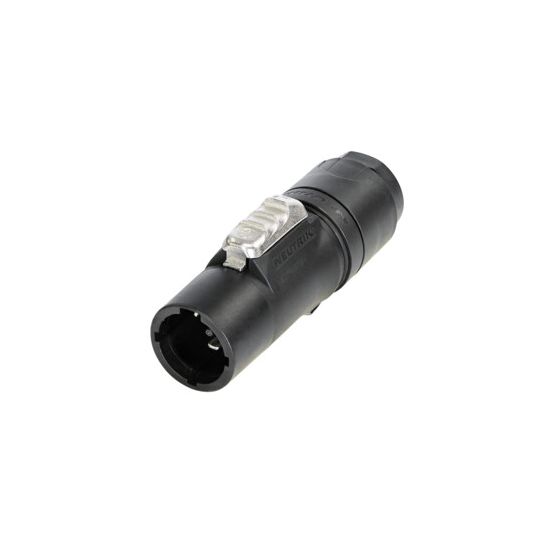

Neutrik | NAC3MX-W-TOP-L-D - PowerCON TRUE1 TOP Male IP65 [100 pieces]

Locking cable connector for large power cords with outer diameters from 10–16 mm (0.39 – 0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3, SOOW 14/3 and SJOOW 12/3. Certified according to EN/UL & CSA 60320-1.

Keyed for Power OUT, screw terminals, IP65, up to 16 A (USA: 20A).

The powerCON TRUE1 TOP is a lockable single-phase connector with breaking capacity (CBC) for outdoor applications.

Features

  • IEC EN 60320-1, UL 60320-1 and C22.2 No. 60320-1:19 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL817 and equipment acc. to IEC 62368-1
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm (0.39 – 0.63 inches)
  • Heavy duty sealed power connector for harsh and demanding environment
  • IP65 rating and approved for outdoor protection
  • Uses high impact UV-resistant materials
  • Extremely robust and reliable cable retention
  • TOP True Outdoor Protection
  • Lockable, single phase connector with Circuit Breaking Capability (16A resp. 20 A 250 VAC)
  • Superior NEUTRIK quality standard

Product Title: NAC3MX-W-TOP-L
Connector series: powerCON TRUE1

Electrical

  • Dielectric strength: 2.8 kVac
  • Insulation resistance: > 0.1 GΩ
  • Number of electrical contacts: 2 + PE
  • Rating Europe: IEC EN 60320-1: 16 A 250 V AC
  • Certified with cable types: H07RN-F3G2.5
  • Rating USA: UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC
  • Certified with cable types:
    • SOOW 12/3, SOOW 14/3
    • SJOOW 12/3

Mechanical

  • Cable O.D.: 10 – 16 mm (0.39 – 0.63 inches)
  • Lifetime: Typically 5,000 mating cycles
  • Wire size (mm²): 2.5 mm²
  • Wire size (AWG): 14 – 12 AWG

Material

  • Contact plating: 2 µm Ag
  • Contacts: Bronze (CuSn0.2)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: ZuAl4Cu1
  • Shell: Polyamide (PA 6.6 30 % GR)
  • Strain relief: Polyacetal (POM)

Environmental

  • Temperature range: -30 °C to +80 °C
  • Flammability: UL94 V-0
  • Protection class: IP65
  • UV resistance: F1 rated material withstands UV exposure
More Information
Brand Neutrik
