Neutrik | NAUSB3-B - Reversible USB 3.0 Gender Changer Black

Neutrik | NAUSB3-B - Reversible USB 3.0 Gender Changer Black

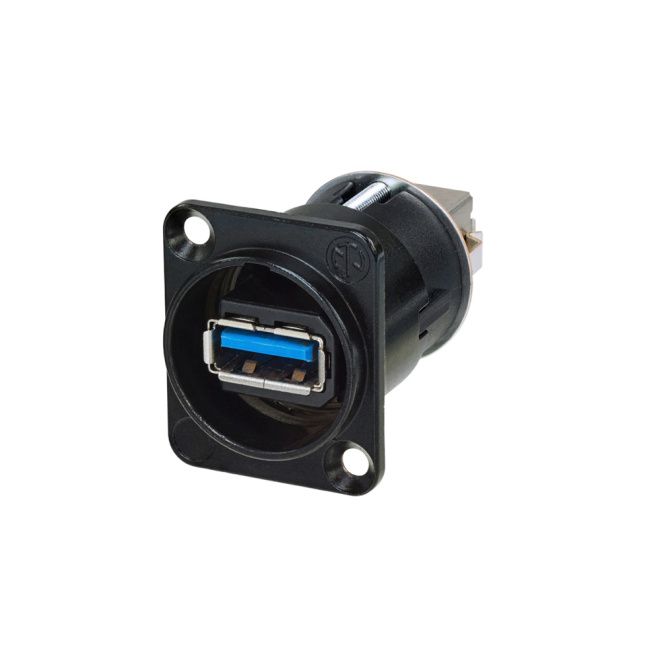

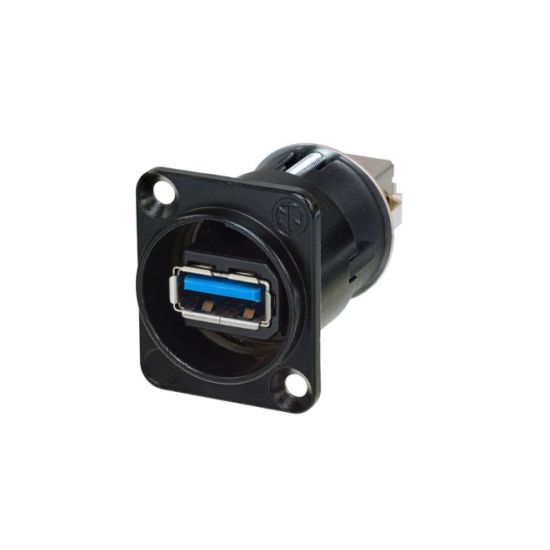

Reversible USB 3.0 gender changer (type A and B), black D-housing.

The NAUSB3-B is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector.

Not compatible with NKUSB-* cables

Features

• USB 3.0 feedthrough adapter
• Reversible insert offering type A or B on front or rear end
• Standard D-shape housing
• Removable screen for chassis grounding
• Meets USB 3.0 specifications

Product: NAUSB3-B
Connection Type: Adapter
Gender: female

Electrical

• Reading / Writing speed: >200 MB/s

Mechanical

• Mounting direction: Front mounting
• Chassis shape: D
• Lifetime: > 1000 mating cycles

Material

• Contact plating: Au
• Contacts: Bronze (CuSn)
• Insert: PBTP 15 % GR
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel

Environmental

• Flammability: UL 94 V-0
• Standard compliance: USB 3.0 specifications
• Temperature range: -25 °C to +85 °C
