L-Acoustics - 5XT

L-Acoustics 5XT

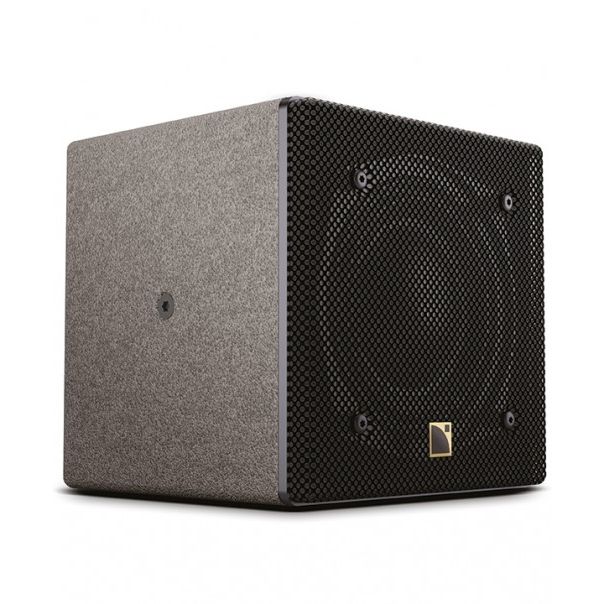

The 5XT is an ultra-compact enclosure from the L-ACOUSTICS^® XT coaxial series.

The 5XT loudspeaker enclosure is based on a 2-way passive design with a nominal impedance of 16 ohms. It contains a 1" diaphragm compression driver coaxially-loaded by a 5» low-mid frequency transducer mounted in a bass-reflex tuned enclosure. The cabinet is made of first grade Baltic birch plywood to ensure maximum acoustical and mechanical integrity. A 3/8" insert for a microphone stand and two M6 inserts for the ETR5 flying bracket are integrated into the cabinet.

The 5XT operates over a frequency range of 95 Hz to 20 kHz. This response can be extended down to 40 Hz with the SB15m subwoofer. The coaxial transducer arrangement produces a 110° axi-symmetric directivity output along with a smooth tonal response free of secondary lobes over the entire frequency range.

Its design makes the 5XT perfectly suited to various sound reinforcement applications, as a main or fill system.

The 5XT enclosure is driven and amplified by the LA4 or the LA8 controller with a single factory preset. This ensures linearization, protection, and optimization for the loudspeaker system.

• Description: Passive 2-way coaxial enclosure, controlled and amplified by LA4X / LA8
• Usable bandwidth (-10dB): 95 Hz – 20 kHz ([5XT] preset)
• Maximum SPL: 121 dB ([5XT] preset)
• Nominal directivity: 110° axisymmetric
• Transducers: LF: 1 x 5" weather resistant, bass-reflex
  HF: 1 x 1" Compression driver
• Nominal impedance: 16 Ω
• Connectors: IN: 1 x 4-point SpeakON^® and screw terminal
  LINK: 1 x 4-point SpeakON^® and screw terminal
• Rigging and handling: 1 x 3/8" insert for microphone stand
  2 x M6 inserts for ETR5 U-bracket
• Weight (net): 3.5 kg / 7.7 lbs
• Cabinet: First grade Baltic birch plywood
• Finish: Dark Grey brown PANTONE^® 426C
  Pure white RAL^® 9010
  Custom RAL^® code on special order
• IP: IP30
