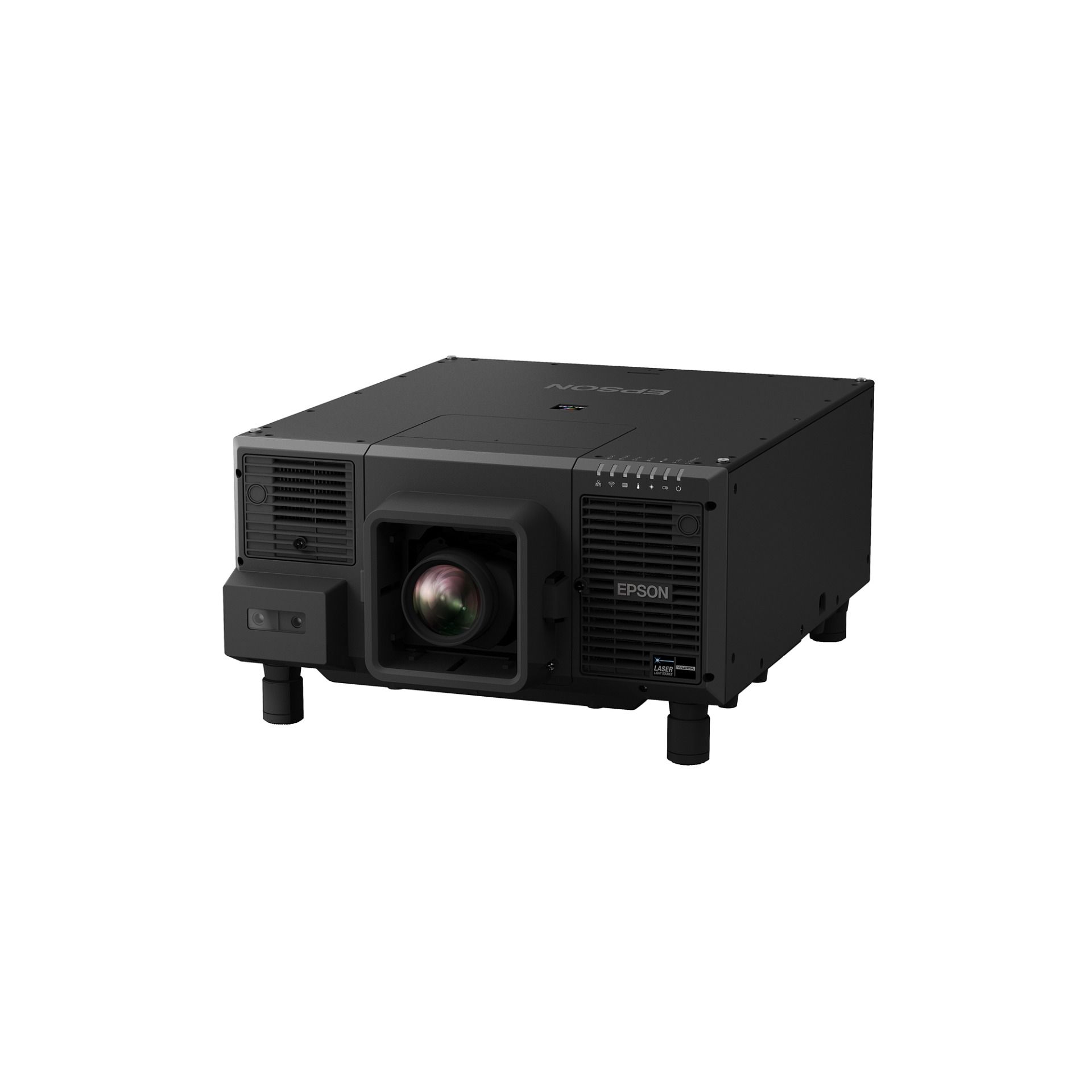

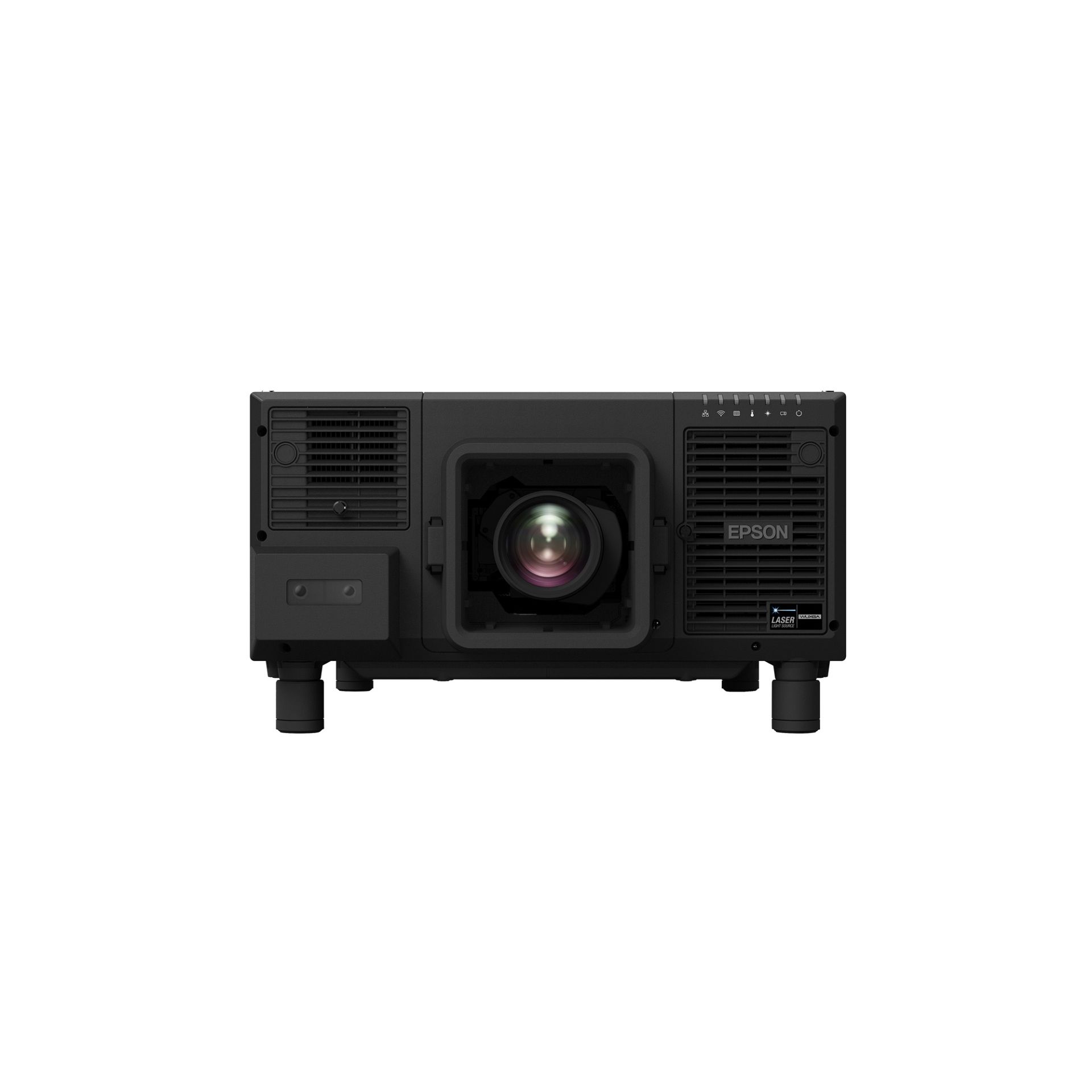

Epson - Laserprojector EB-L20000U, 20.000 Lumens, WUXGA

Epson - EB-L20000U Projector

Compact 20,000-lumen WUXGA laser installation projector that offers fit-and-forget reliability and great performance.

• 20,000-lumen brightness
• WUXGA native resolution
• Compact design
• Easy installation

The EB-L20000U is designed to be used at events, festivals, visitor attractions, large auditoriums, trade shows and shopping centres, as well as for corporate and educational purposes.

A futureproof 20,000 lumen projection solution
Easily slots into an existing infrastructure. It uses the same lenses as Epson's popular EB-L1000 series projectors that are native-4k compatible.

Easy installation
Light, compact and easy for a single person to transport and install. The EB-L20000U offers 360-degree installation and can project from any angle, as well as in portrait mode. It also features built-in camera for automatic edge-blending.

Trusted reliability
A five-year, 20,000-hour warranty, coupled with inbuilt self recalibration means these projectors can be installed and forgotten about. The built-in camera enables remote adjustment and troubleshooting.

Key Features

• Impressive brightness: 20,000 lumens
• Resolution: Native WUXGA resolution
• Compatibility: Epson Projector Professional Tool software
• Built-in high resolution camera: For diagnostics, set-up, adjustment and automatic edge-blending
• Durable reliability: Sealed optical unit to protect against dust and smoke

Technology

• Projection System: 3LCD Technology
• LCD Panel: 1,03 inch with C2 Fine


• Colour Light Output: 20.000 lumen- 14.000 lumen (economy) in accordance with IDMS15.4
• White Light Output: 20.000 lumen - 14.000 lumen (economy) in accordance with ISO 21118:2012
• Portrait Colour Light Output: 20.000 lm
• Portrait White Light Output: 20.000 lm
• Resolution: WUXGA, 1920 x 1200, 16:10
• High Definition: Full HD
• Aspect Ratio: 16:10
• Contrast Ratio: 2.500.000 : 1
• Native Contrast: 2.000 : 1
• Light source: Laser
• Laser Light source: 20.000 Hours Durability High, 30.000 Hours Durability Eco
• Keystone Correction: Manual vertical: ± 45 °, Manual horizontal ± 30 °
• Colour Reproduction: upto 1.07 billion colours

Optical

• Projection Ratio: 1,57 - 2,56:1
• Zoom: Motorized, Factor: 1 - 1,6
• Projection Lens Zoom Ratio: 1,57 - 2,56 : 1
• Lens: Optical
• Lens Shift: Motorized - Vertical ± 60 %, horizontal ± 18 %
• Lens position memory: 10 positions
• Image Size: 60 inches - 1.000 inches
• Projection Distance Wide: 2 m - 24,4 m
• Projection Distance Tele: 3,3 m - 55,6 m
• Projection Distance Wide/Tele: 1,99 m - 55,63 m
• Projection Lens F Number: 1,8 - 2,3
• Focal Distance: 36 mm - 57,3 mm
• Focus: Motorized
• Interchangeable Lens: Yes

Connectivity

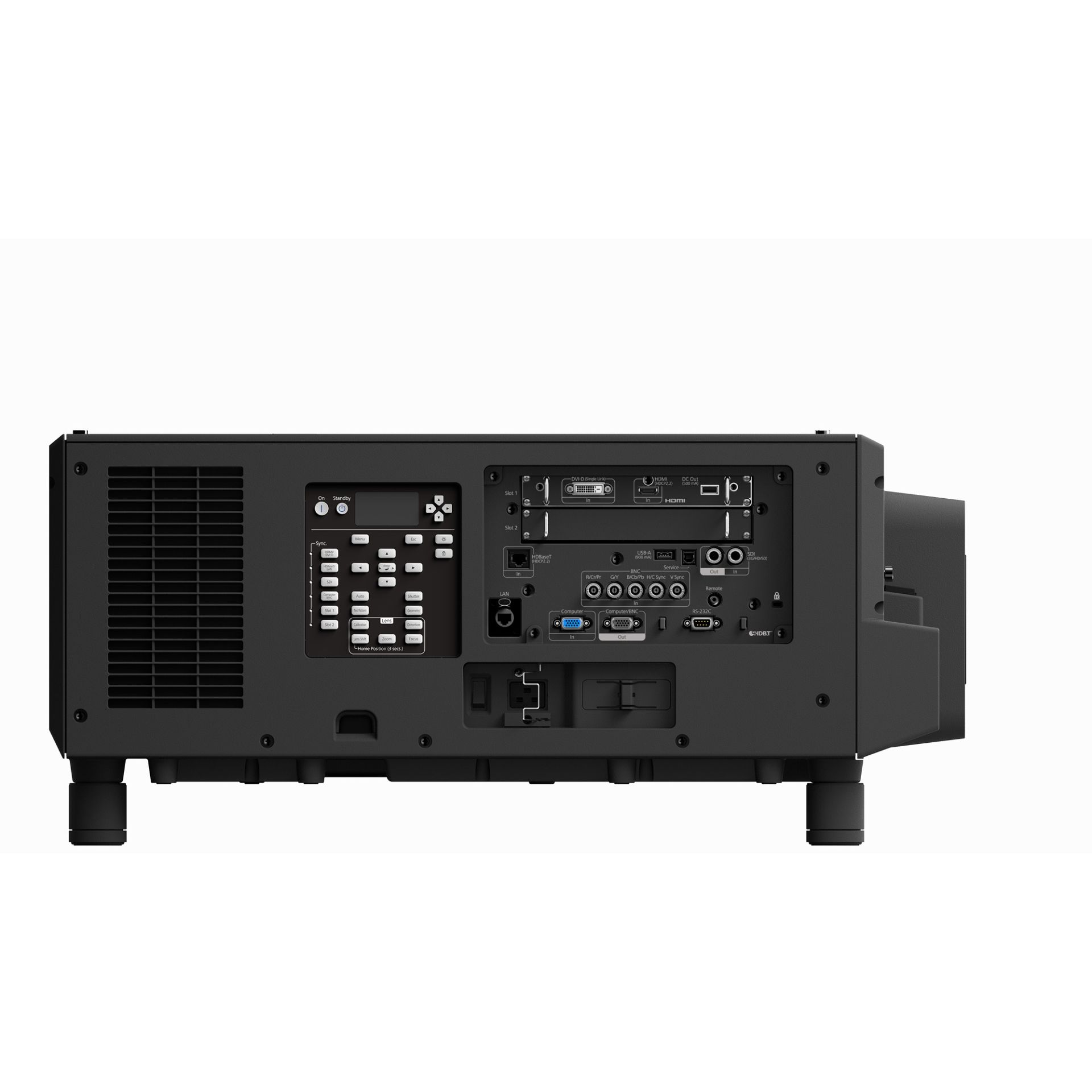

• Interfaces: HDBaseT, BNC in, DVI in, VGA out, VGA in, Ethernet interface (100 Base-TX / 10 Base-T), RS-232C, USB 2.0 Type B (Service Only), Wireless LAN b/g/n (2.4GHz) (optional), HDMI (HDCP 2.2), 3G-SDI Input, DC Power Output (900mA), 3G-SDI Output, Ethercon LAN
• Epson iProjection App: Ad-Hoc / Infrastructure

Advanced Features

• Security: Kensington lock, Security bar, Wireless LAN security, Password protection
• Features: Absolute Black, Auto calibration, Customizable user logo, Frame interpolation, Integrated camera for image calibration & image capture, Lens position memory
• Video Colour Modes: Cinema, Dynamic, Presentation, DICOM SIM, Multi Projection, BT709
• Projector control: via: AMX, Crestron (Network), Extron

General

• Energy Use: 1.860 W, 1.123 W (economy), 0,5 W (standby), On mode power consumption as defined in JBMS-84 1.743 W
• Heat Dissipation: 6.324 BTU/hour (max)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product dimensions: 620‎ x 790 x 358 mm (Width x Depth x Height)
• Product weight: 49,6 kg
• Noise Level: Normal: 45 dB (A) - Economy: 38 dB (A)
• Temperature: Storage -10° C - 60° C
• Humidity: Operation 20% - 80%, Storage 10% - 90%
• Included Software: Epson Projector Management Software, EasyMP Multi PC Projection
• Options: HDBaseT Transmitter, Wireless LAN unit
• What's in the box: CD Manual, Cable cover, Power and signal cable (3 m), Quick Start Guide, Remote control incl. batteries
• Room Type / Application: Boardroom, Large Meeting Room / Auditorium, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction
• Positioning: Ceiling Mounted, Flying Frame
• Colour: Black

Other

• Warranty: 60 months Carry in or 20.000 h
