Epson - EB-L1505UH

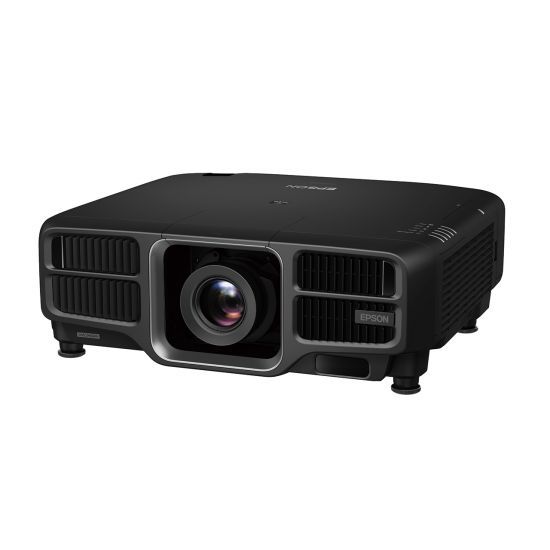

Epson - EB-L1505UH Projector

Powerful 12,000-lumen WUXGA 3LCD laser projector offering outstanding image sharpness and brightness, and a long-lasting, low maintenance performance.

• Laser light source
• 12,000 lumens
• WUXGA resolution
• Black housing

The EB-L1505UH installation laser projector offers powerful 12,000-lumen WUXGA performance with rich, vivid colours, for large rooms and venues, as well as reliable fit and forget performance. With flexible installation and low maintenance, this 4K-enhanced projector offers a perfect solution for scenarios where only maximum performance and durability will do.

Laser-sharp images
Ensure that your presentations, images and video pack a punch with the vivid, sharp projection offered by this 3LCD laser projector. Designed for larger venues, its high resolution WUXGA images are vivid and bright, even in daylight, while inorganic phosphor wheel technology provides superior light and heat resistance to deliver excellent reliability that lasts for up to 83,000 hours¹.

4K enhancement
For a next-level viewing experience, the projector features ingenious 4K enhancement technology, giving images exceptional sharpness and clarity, and ensuring that text in presentations is clearly legible.

Flexible positioning
Thanks to a wide range of motorised lenses, including optional ultra-short-throw (UST) lens, the projector benefits from true 360° installation flexibility, allowing it to be placed virtually anywhere - without loss of brightness or distortion of image. The projector also has a built-in camera to ensure accurate calibration and capture diagnostic images (this can be fully disabled to prevent remote access).

Versatile new software
All models in the EB-L1000 series can take advantage of free Epson Professional Projector Tool software from December 2017. It allows you to set up multi-projector installations straight out of the box, simply and quickly, as well as utilising advanced techniques such as projection-mapping and edge-blending.

Key Features

• Laser light source technology: Outstanding brightness and colour, with fit and forget reliability
• HD images with 4K enhancement: Exceptional sharpness, clarity and detail for crisp images and legible text
• Versatile new software: Set up multiple projector installations and utilise advanced projection techniques
• Flexible 360° installation: True flexibility without distortion or loss of brightness
• Added peace of mind: Product comes with five-year, 20,000-hour warranty

1. - Laser life of up to 83,000 hours in custom mode.

Technology

• Projection System: 3LCD Technology
• LCD Panel: 1,03 inch with C2 Fine


• Colour Light Output: 12.000 lumen- 8.400 lumen (economy) in accordance with IDMS15.4
• White Light Output: 12.000 lumen - 8.400 lumen (economy) in accordance with ISO 21118:2012
• Portrait Colour Light Output: 12.000 lm
• Portrait White Light Output: 12.000 lm
• Resolution: WUXGA, 1920 x 1200, 16:10
• High Definition: 4K enhancement
• Aspect Ratio: 16:10
• Contrast Ratio: 2.500.000 : 1
• Native Contrast: 2.000 : 1
• Light source: Laser
• Laser Light source: 20.000 Hours Durability High, 30.000 Hours Durability Eco
• Keystone Correction: Manual vertical: ± 45 °, Manual horizontal ± 30 °
• Colour Reproduction: upto 1.07 billion colours

Optical

• Projection Ratio: 1,57 - 2,56:1
• Zoom: Motorized, Factor: 1 - 1,6
• Projection Lens Zoom Ratio: 1,57 - 2,56 : 1
• Lens: Optical
• Lens Shift: Motorized - Vertical ± 60 %, horizontal ± 18 %
• Lens position memory: 10 positions
• Image Size: 60 inches - 500 inches
• Projection Distance Wide: 2 m - 17,2 m
• Projection Distance Tele: 3,3 m - 27,8 m
• Projection Distance Wide/Tele: 1,99 m - 27,77 m
• Projection Lens F Number: 1,8 - 2,5
• Focal Distance: 36 mm - 57,35 mm
• Focus: Motorized
• Connectivity: Interfaces
• Stereo mini jack audio in (3x), Stereo mini jack audio out, HDBaseT, BNC in, HDMI in, DVI in, VGA out, VGA in, Ethernet interface (100 Base-TX / 10 Base-T), RS-232C, USB 2.0 Type B (Service Only), HD-SDI, Wireless LAN b/g/n (2.4GHz) (optional)
• Epson iProjection App: Ad-Hoc / Infrastructure

Advanced Features

• Security: Kensington lock, Security bar, Wireless LAN unit lock, Wireless LAN security, Password protection
• Features: 4K enhancement, Absolute Black, Auto calibration, Customizable user logo, Frame interpolation, Integrated camera for image calibration & image capture, Lens position memory
• Video Colour Modes: Cinema, Dynamic, Presentation, DICOM SIM, Multi Projection, BT709
• Projector control: via: AMX, Crestron, Extron

General

• Energy Use: 908 W, 597 W (economy), 0,3 W (standby), On mode power consumption as defined in JBMS-84 833 W
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product dimensions: 586‎ x 492 x 211 mm (Width x Depth x Height)
• Product weight: 23,8 kg
• Noise Level: Normal: 37 dB (A) - Economy: 30 dB (A) (4K enhancement OFF)
• Temperature: Storage -10° C - 60° C
• Humidity: Operation 20% - 80%, Storage 10% - 90%
• Included Software: Epson Projector Management Software, EasyMP Multi PC Projection
• Options: HDBaseT Transmitter, Quick wireless USB key, Wireless LAN unit
• What's in the box: CD Manual, Cable cover, VGA cable, Power and signal cable (3 m), Quick Start Guide, Remote control incl. batteries
• Room Type / Application: Boardroom, Large Meeting Room / Auditorium, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction
• Positioning: Ceiling Mounted, Flying Frame
• Colour: Black

Other

• Warranty: 60 months Carry in or 20.000 h
