CLF - Ares

CLF - Ares

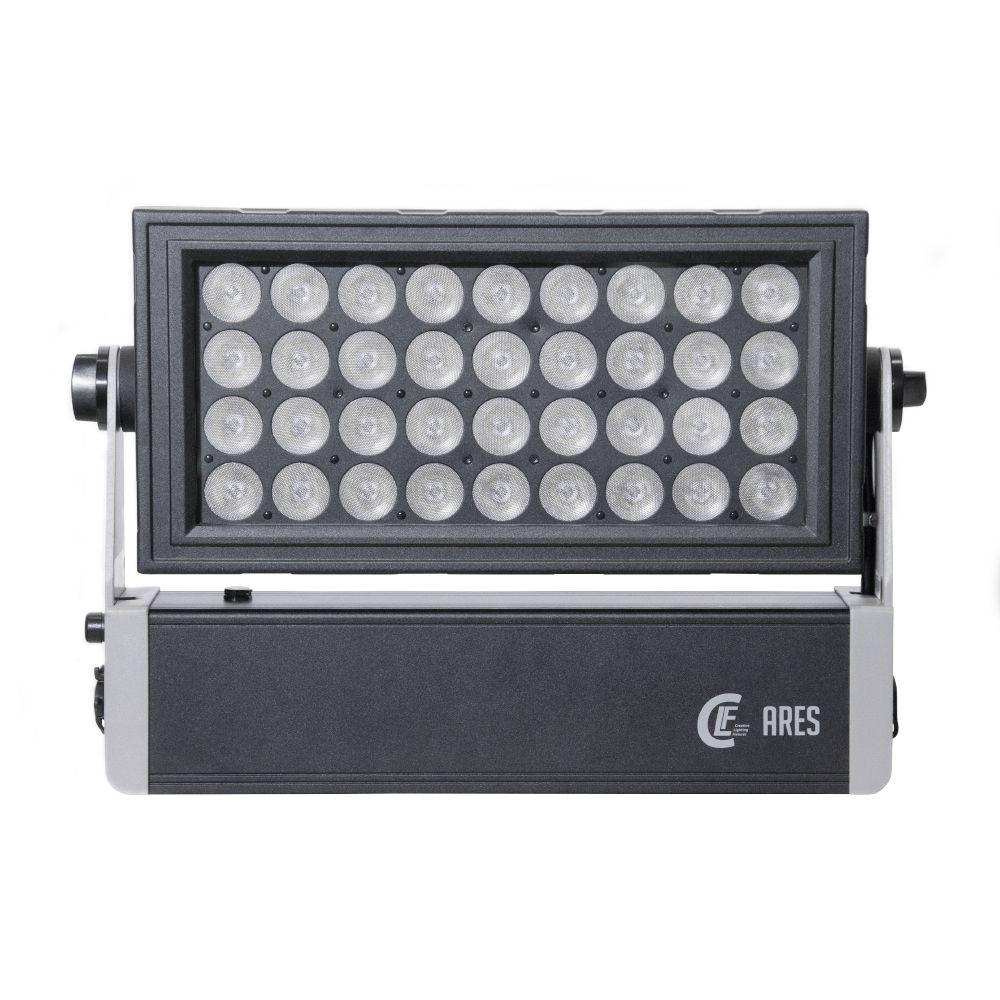

The CLF Ares is an extremely powerful LED wash fixture which is perfect for illuminating large surfaces in- and outdoor. Extreme brightness and an extraordinary even projection makes the Ares a true LED alternative for traditional wash lights. An array of 36 calibrated high power RGBW LED’s are divided in four individually controllable segments.

Standard the Ares is equipped with a punchy 21° beam angle, which can be easily adapted to a 43° wash with the Smart Filter System®. The unique LED boost mode offers 140% output when only using two colours simultaneously. For TV and theatre use the Ares comes with an intelligent cooling system which provides extensive fan control. All in all, the Ares is a versatile LED wash that can be used for multiple applications.

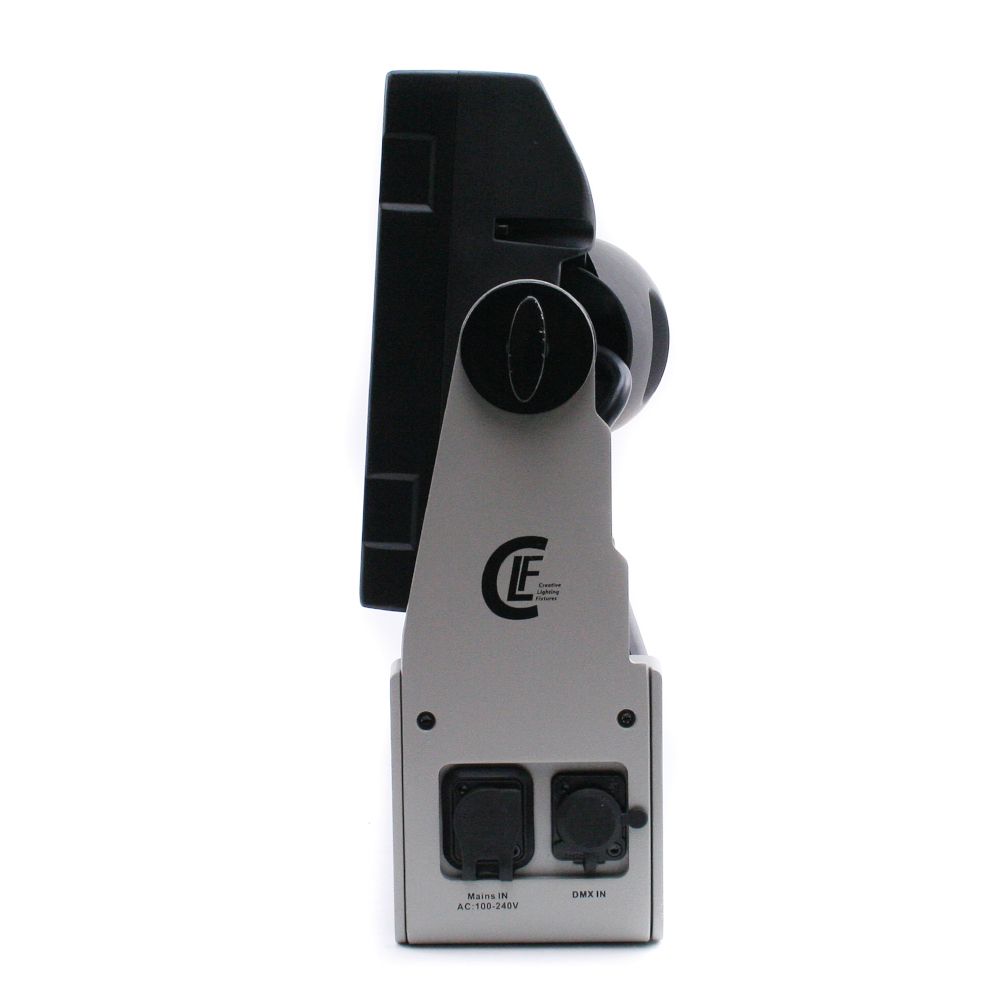

The CLF Ares comes with filterframe, barndoor and a Wireless Solution W-DMX™ receiver on board, but can also be connected with 3-pin XLR connectors. Power can be connected through a Neutrik® TRUE1 connector.

Features

• Adjustable beam angle
• IP65 rating
• Deep and saturated colours
• Wireless DMX
• Designed for multiple applications
• Solid housing

• DMX channels: 4-9-11-16-27-30
• Beam angle: 21° (adjustable with smart filter system)
• Power supply: 100-240 VAC
• Power: Max. 360 watt
• Cooling: Intelligent cooling system
• DMX connection: 5p XLR in & out (3p Optional)
• Dimensions: 495x222x365mm (hxwxd)
• Weight: 11,9KG
• Certification mark: CE
• Rating: IP65
• Cooling: special intelligent regulated fans
• Including: Power cable, barndoor and filterholder
