CLF - Ares XS

CLF - Ares XS

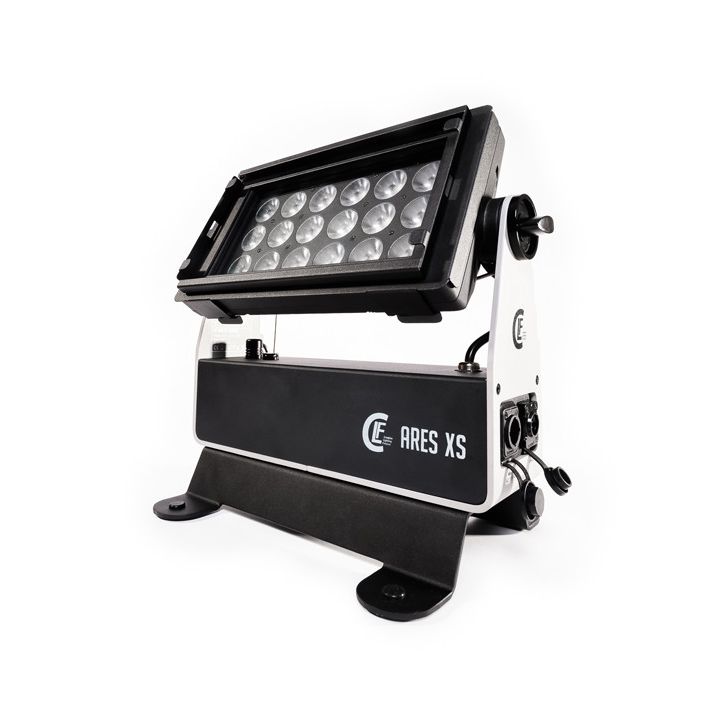

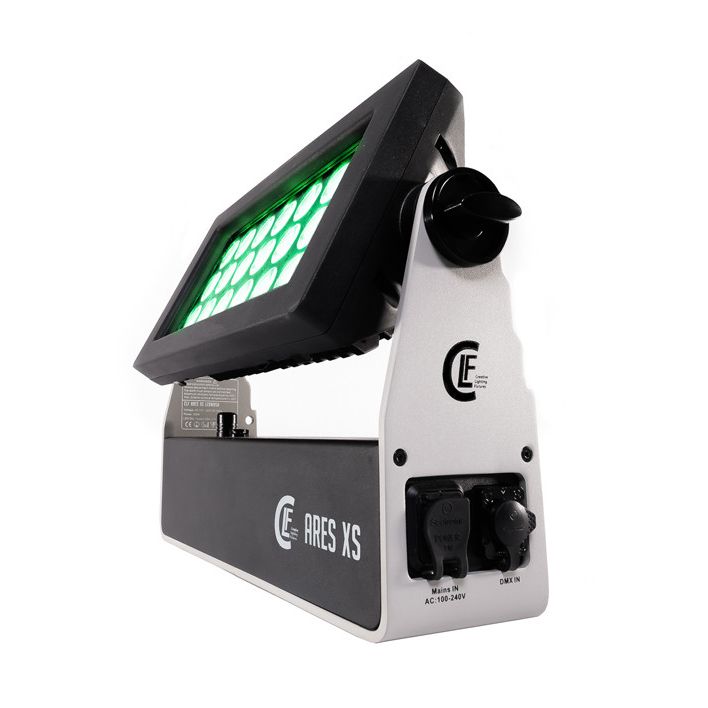

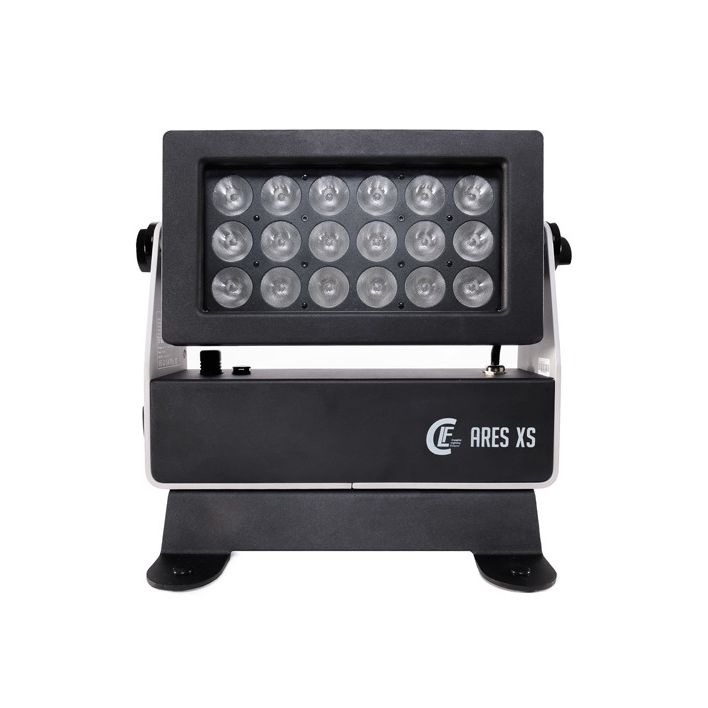

The Ares XS is the smaller brother of the Ares, which has been proven to be a lighting essential for many different purposes. The powerful LED wash fixture is perfect for illuminating large surfaces both in- and outdoor. Extreme brightness and an extraordinary even projection make the Ares XS a true LED alternative for traditional wash lights. An array of 18 calibrated high power RGBW LEDs is divided in three individually controllable horizontal segments.

The Ares XS is equipped with a punchy 21° beam angle, which can be easily adapted to other beam angles, even elliptical, by using the Smart Filter System® The intelligent cooling system makes sure that the Arex XS is ready for TV and theatre productions. All in all, the Ares is a versatile LED wash that can be used for many applications.

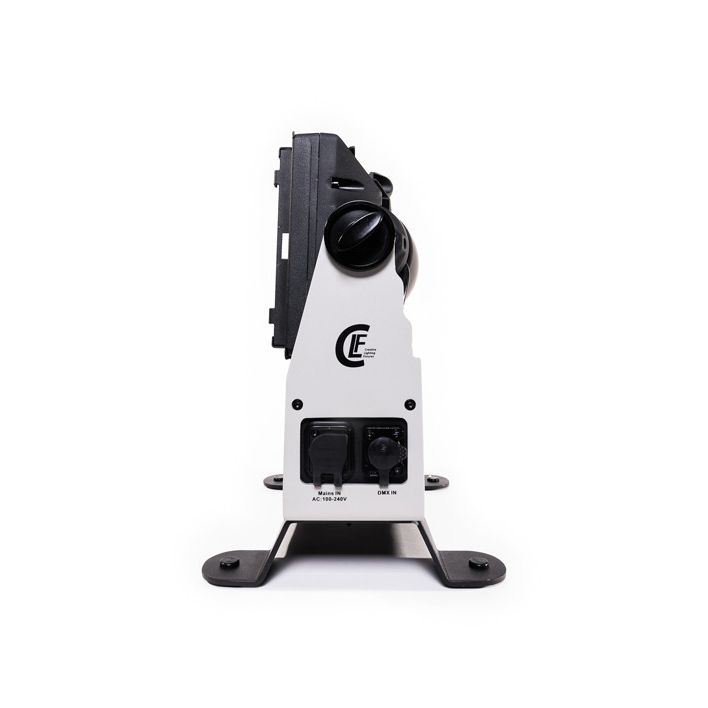

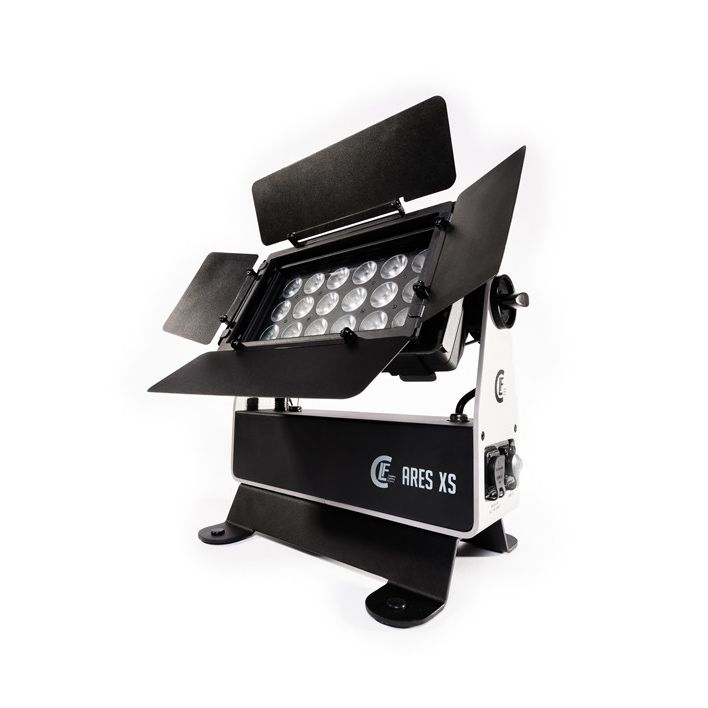

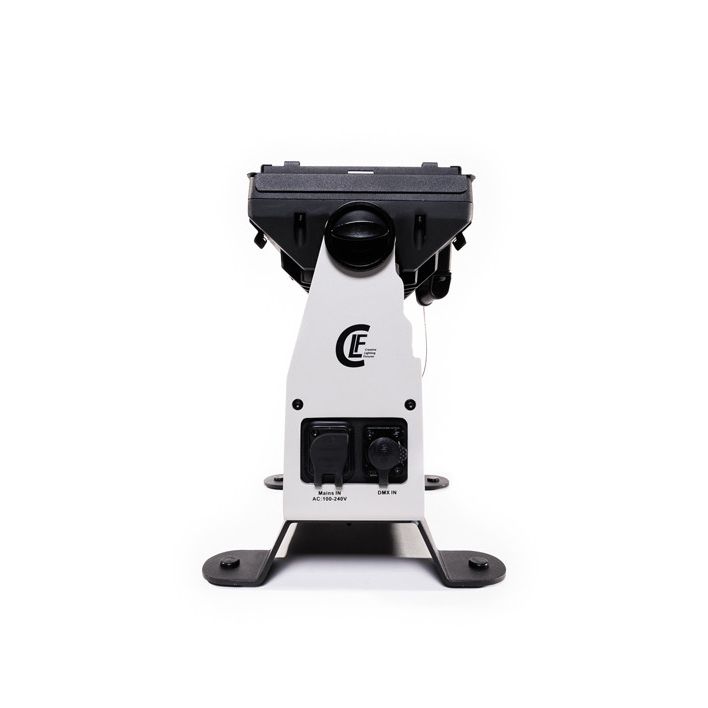

The fixture comes with a filterframe, barndoor and a Wireless Solution W-DMX™ receiver on board, but can also be connected with 5-pin XLR connectors. Power is connected through a PowerCON TRUE1 connector.

• DMX channels: 4-9-11-12-17-23-24
• Beam angle: 21° *
• Power supply: 100 – 240 VAC
• Power consumption: Max. 300 Watt

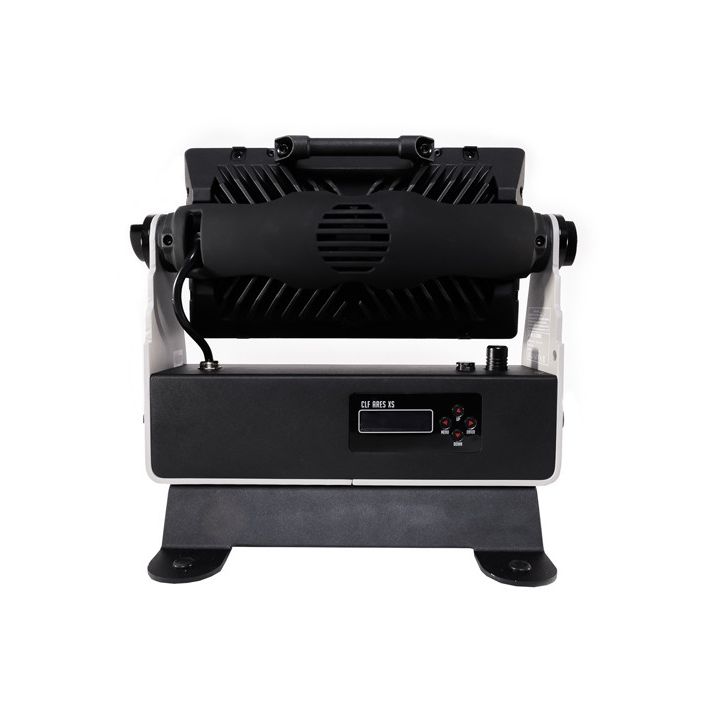

• Cooling: Intelligent cooling system
• DMX connection: 5p XLR in & out (3p Optional)
• Dimensions: 381 x 111 x 290 mm (hxwxd)
• Dimensions (with stand): 381 x 233 x 336 mm (hxwxd)
• Weight: 8,7 Kg
• Certification: CE, RoHS
• Included: items Cable, barndoor, filterframe & stand
• IP rating: IP65
