Yamaha - CSDR7 (PM7) - Control Surface

Yamaha - CSD-R7 - Control Surface

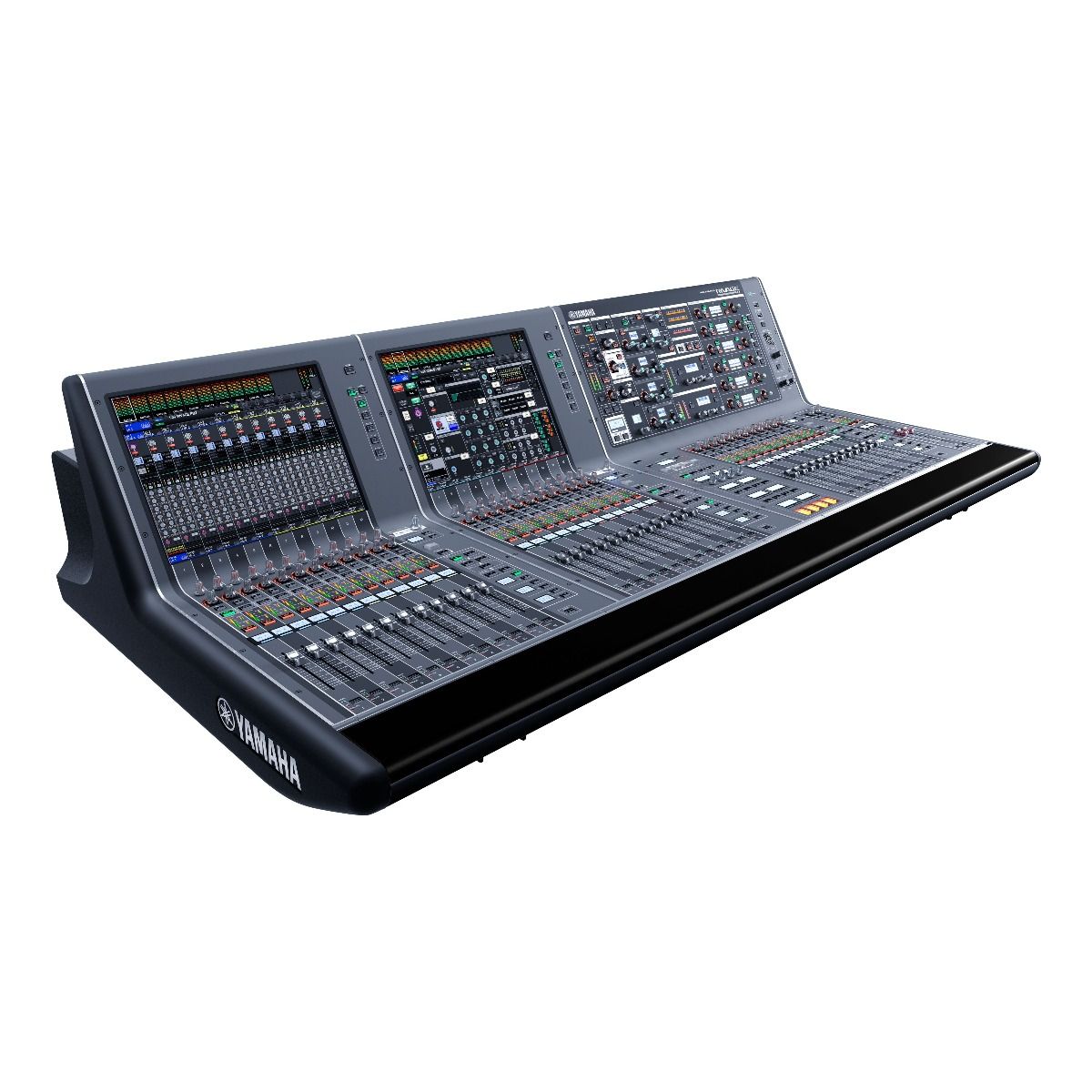

The RIVAGE PM7 is a digital mixing system consisting of the CSD-R7 Digital Mixing Console, one or more I/O racks for input and output, and dedicated interface cards for network connectivity. The CSD-R7 is the same size as the our flagship RIVAGE PM10 system CS-R10 Control Surface and has the same control layout. With built-in DSP it offers similarly high standards of operation and workflow efficiency in a relatively compact, portable system.

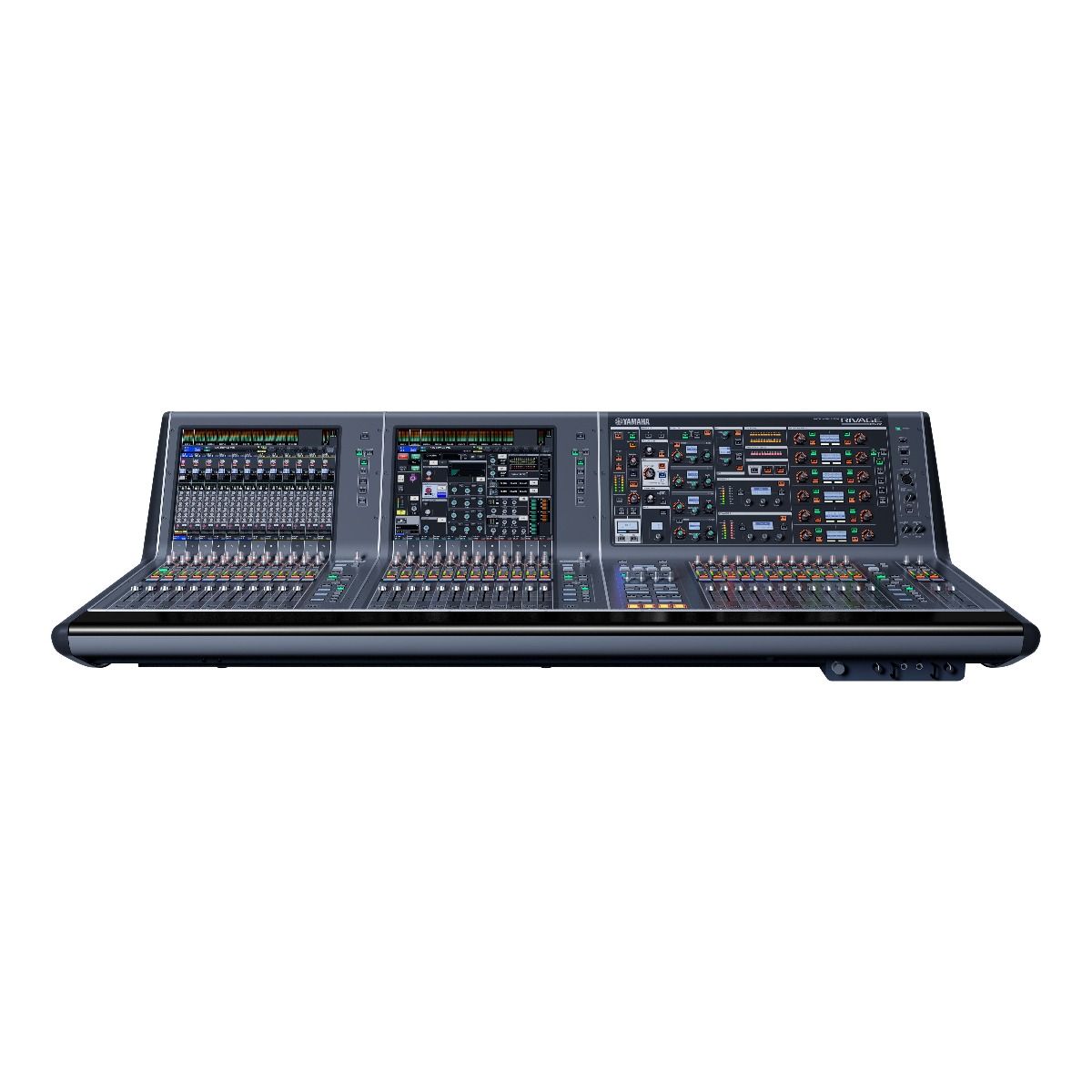

The CSD-R7 Digital Mixing Console is the core component of any RIVAGE PM7 system, with 96 kHz processing, 120 monaural inputs, and a versatile complement of mixing busses (60 MIX, 24 MATRIX, and 2 STEREO). The console has three 12-faders bays for flexible setup and configuration, and dual power supply units are built in for enhanced reliability.

• Display: 15" touch panel x 2
• Faders: 38 (12+12+12+2)
• Selected Channel section: comprehensive channel parameters
• Custom Fader banks: 6 x 5 on each bay
• User Defined keys: 12 x 4 banks
• User Defined knobs: 4 x 4 banks
• Touch and Turn knobs: 2
• Analog I/O: 8 in / 8 out
• Slot: 3 HY slots, 2 MY slots
• AES/EBU: 8 in / 8 out (with SRC)

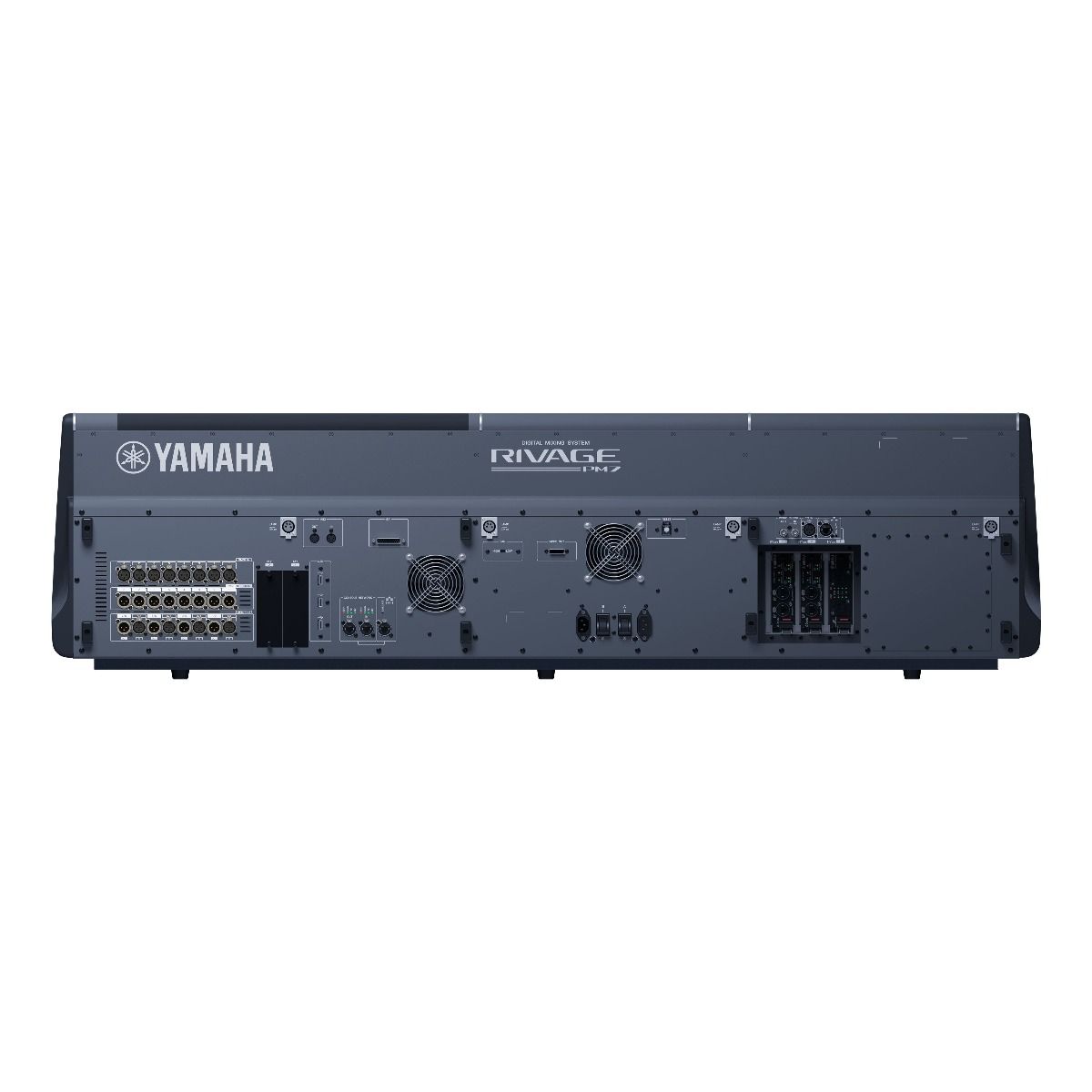

• Ports: GPI (8 in / 8 out), Word Clock In/Out, MIDI In/Out, 5 USB (1 for 2-track recording), Video Out (DVI-D), TC In
• Power supply: Dual redundant power supply built-in
• Power consumption: 415W
• Dimensions (WxHxD): 1,549 x 417 x 848mm (61.0" x 16.4" x 33.4")
• Net Weight: 94 kg (207 lbs)
