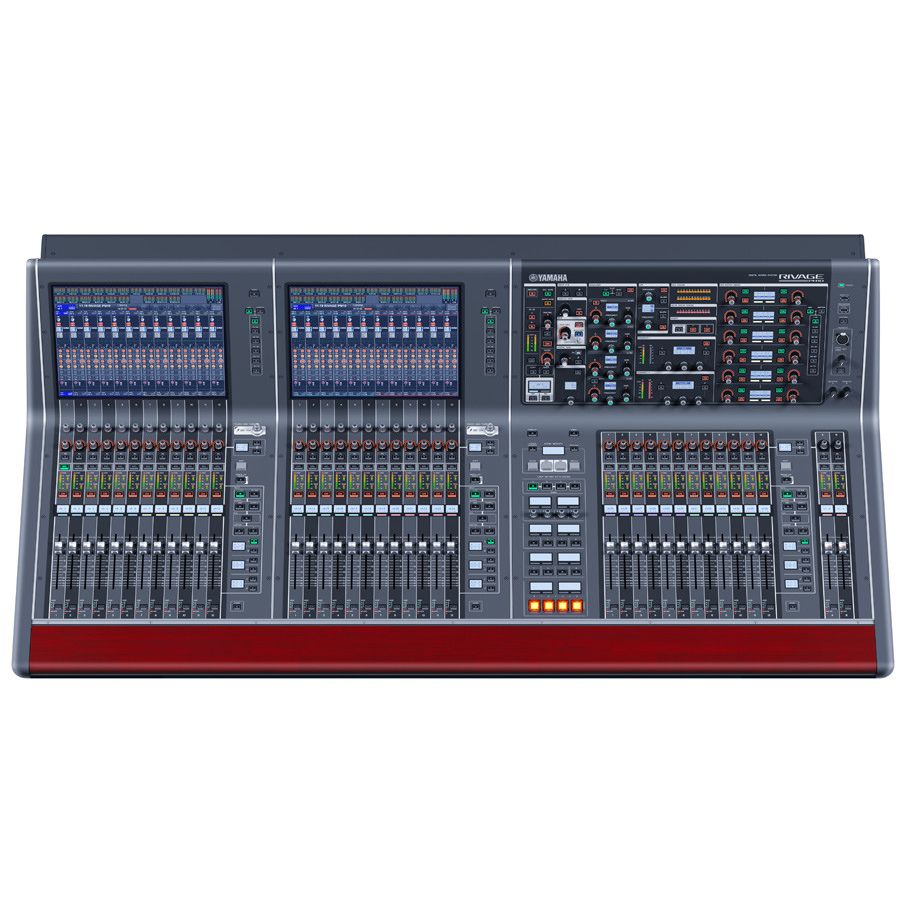

Yamaha | CSR10 (PM10) - Control Surface

Yamaha - CS-R10 - Control Surface

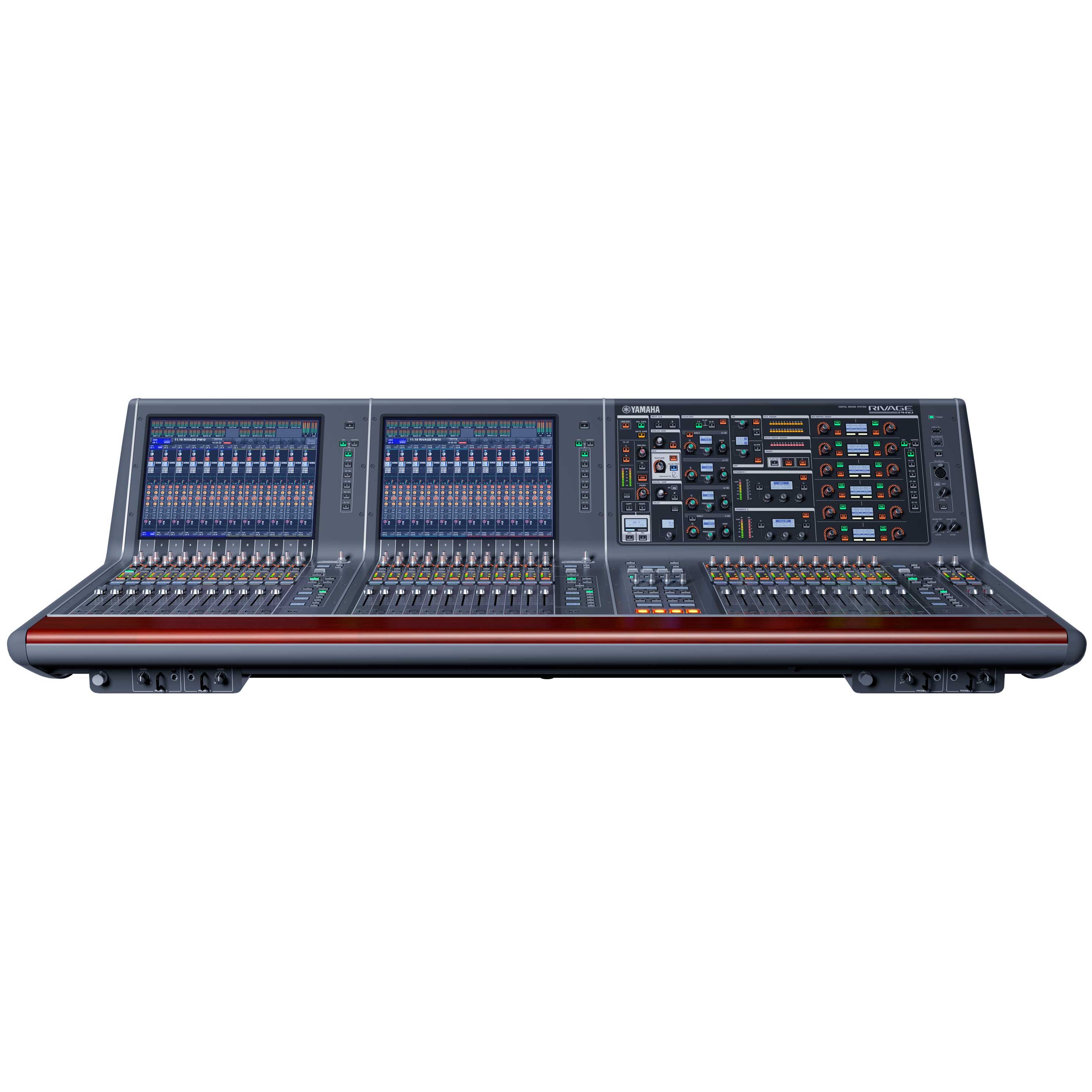

A New PM Generation

In the more than 40 years that have passed since Yamaha's first professional live sound console was released, the PM series has been responsible for a number of important milestones in the history of sound reinforcement. Many of those innovations have become standard tools that professionals depend on to this day. And now, launching a new generation of PM consoles, the RIVAGE PM10 is here. In terms of sound quality, operation, functionality, reliability, expandability, and more, the RIVAGE PM10 is a thoroughly refined flagship that defines the direction for future generations. It is a worthy heir to the PM name that brings true innovation to the evolving live sound scene.

• Display: 15" touch panel x 2
• Faders: 38 (12+12+12+2)
• Selected Channel section: comprehensive channel parameters
• Custom Fader banks: 6 x 2 on each bay
• User Defined keys: 12 x 4 banks
• User Defined knobs: 4 x 4 banks
• Touch and Turn knobs: 2

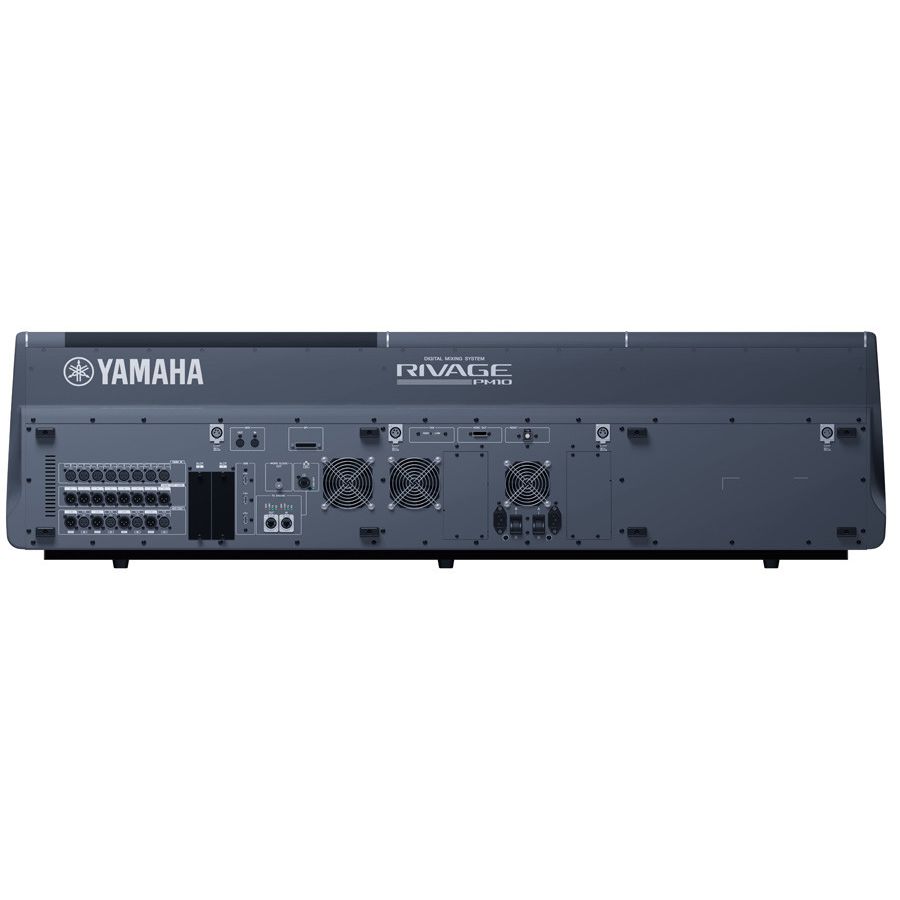

• Analog I/O: 8 in / 8 out
• Slot: 2 MY slots
• AES/EBU: 4 in / 4 out (with SRC)
• Ports: GPI (8 in / 8 out), Word Clock Out, MIDI In/Out, 5 USB (1 for 2-track recording), Video Out (DVI-D)
• Dual redundant power supply built-in
