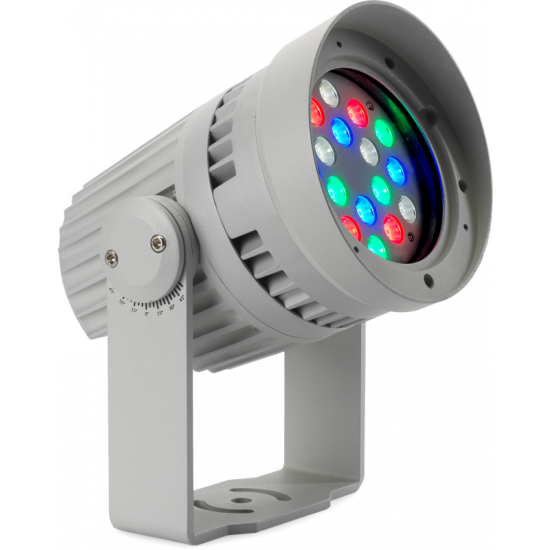

Exterior™ Wash 100 is a powerful, compact and energy-efficient LED lighting fixture designed to illuminate smaller structures, features of a building and landscaping. A discreet, optional snoot integrates seamlessly with the slick design of the fixtures. It has built-in display for ease-of-use, a wide selection of beam angles and is fully IP-rated for permanent outdoor use.

The Exterior Wash 100 is designed for narrow beam applications and is based on separate LEDs for red, green, blue and white.

Features

• Narrow beam configuration with 6 beam angle options
• Functional and discreet optional snoot which integrates with the design of the fixtures
• Control via DMX, RDM and OLED display

Physical

• Length: 240 mm (9.5 in.)
• Width: 198 mm (7.8 in.)
• Height: 257 mm (10.2 in.)
• Weight: 5.0 kg (11.1 lbs.)

Dynamic Effects

• Color mixing: RGBW
• Intensity: 0 - 100%

Control and Programming

• Control systems: DMX, RDM
• Setting, addressing, standalone programming: Control panel with OLED display
• DMX channels: 3-5 depending on DMX mode
• Receiver: RS-485
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• Firmware update: Serial upload via DMX link

Optics

• Light source: 4 x R, 5 x G, 4 x B, 5 x W single-color LEDsMinimum LED lifetime: 50,000 hours (to >70% luminous output)*LED manufacturer: CreeBeam Angle Options:
• No diffuser: 7.5°
• Narrow diffuser: 11.5°
• Medium diffuser: 22°
• Wide diffuser: 50°
• Very wide diffuser: 60°
• Asymmetric diffuser: 61° x 15°

*Figure obtained under manufacturer's test conditions

Construction

• Housing: Cast aluminum
• Color: Light grey (white, black or other colors available on request)
• Ingress protection rating: IP66
• Surface treatment:
• Anodized and electrostatic powder-coated
• Effective Projected Area (EPA): 0.05 m² including snoot
• Impact resistance: IK08 (with display panel cover plate installed)
• Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
• RoHS compliant

Installation

• Mounting: Adjustable yoke
• Orientation: Any
• Minimum distance to illuminated surfaces: 0.2 m (0.6 ft.)

Connections

• Power connection: 1.8 m (5.9 ft.) cable tail without connector
• Power input cable type, EU models: H05RN-F 300/500V, 3 x 0.75 mm2, Ø 7 mm
• Power input cable type, US models: SJOW 18AWG, 300V, WL F1, Ø 8 mm
• Data connection: 1.8 m (5.9 ft.) open ended 5-conductor combined input + output cable tail
• All cable entries: IP68 cable gland

Electrical

• AC power: 100 - 240 / 277 V nominal, 50/60 Hz
• Power supply unit: Integrated, auto-sensing multi-voltage
• Power Consumption: 5 W (steady state, all LEDs at zero intensity)
• Typical half-cycle RMS inrush current: 9.7 A
• Surge protection: 4 KV
• Maximum total power consumption: 50 W

Typical Power and Current

• 100 V, 60 Hz: 0.45 A, 42 W, PF 0.99
• 120 V, 60 Hz: 0.35 A, 42 W, PF 0.99
• 230 V, 50 Hz: 0.2 A, 42 W, PF 0.93
• 277 V, 60 Hz: 0.2 A, 42 W, PF 0.85

Thermal

• Cooling: Convection
• Maximum ambient temperature (Ta max.): 45° C (113° F)*
• Minimum ambient temperature (Ta min.): -30° C (-22° F)**
• Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F)
• Total heat dissipation (calculated, +/- 10%): 160 BTU/hr

Approvals

• EU safety: EN60598-2-5 (EN60598-1), EN62471, EN62493, EN60598-2-1
• EU EMC: EN55015, EN61547, EN61000-3-2, EN6100-3-3, EN61000-4-2, EN6100-4-4, EN6100-4-5
• US safety: ANSI/UL 1598
• US EMC: 47 CFR Part 15 Class A
• Canadian safety: CSA C.22.2 No. 250
• Australia/NZ: RCM
