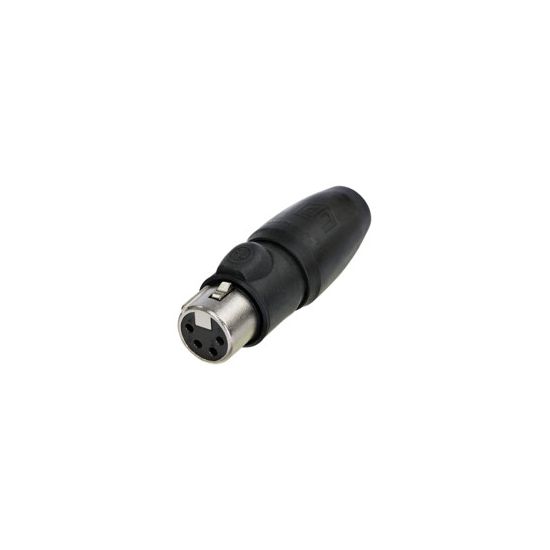

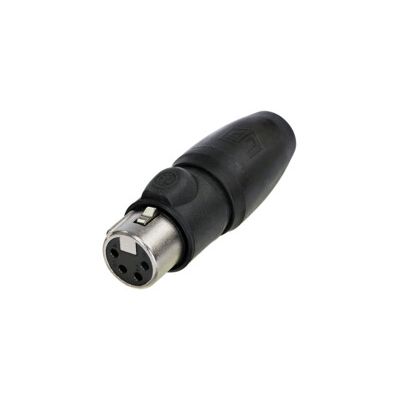

Neutrik | NC4FX-TOP - XLR 4P cable connector IP65 Female
Beschikbaarheid: Niet op voorraad
Neutrik | NC4FX-TOP
4 pole female cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts
The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable connector of the XLR TOP range (IP65).
Gold contacts are standard.
Features
Heavy-duty sealed XLR connector range for harsh and demanding environment
Outdoor protection according to IP65
Uses high impact UV resistant materials
IEC 61984 certified
Product : NC4FX-TOP
Connection Type : XLR
Gender : Female
Electrical
Contact resistance: ≤ 3 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 10 A
Rated voltage: 50 V
Mechanical
Cable O.D.: 5.0 – 8.0 mm
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wiresize: < 2.5 mm²
16 AWG
Wiring: Solder contacts
Locking device: Latch lock
Material
Bushing: UV-resistant rubber
Contact plating: Gold (Au) over Nickel (Ni)
Contacts: Brass
Insert: Polyamide
Locking element: St3K32 (latch) / Ck 67 (spring)
Shell: Zinc diecast
Shell plating: Nickel
Strain relief: Polyacetal
Sealing jacket: UV-resistant rubber
Environmental
Flammability acc. to UL94: V-0 (insert)
Standard compliance: IEC 61076-2-103
Protection class acc. IEC 60529: IP65 (mated)
Solderability acc. to: IEC 60068-2-20
Temperature range: -30 °C to +80 °C
Pollution degree acc. to IEC 60664-1: II
