Neutrik | NC4MX-TOP - XLR 4P cable connector IP65 Male
Neutrik | NC4MX-TOP - XLR 4P cable connector IP65 Male

Neutrik | NC4MX-TOP - XLR 4P cable connector IP65 Male

€ 12,41 Excl. BTW
Beschikbaarheid:
Niet op voorraad
Art. code
NE-81.0066

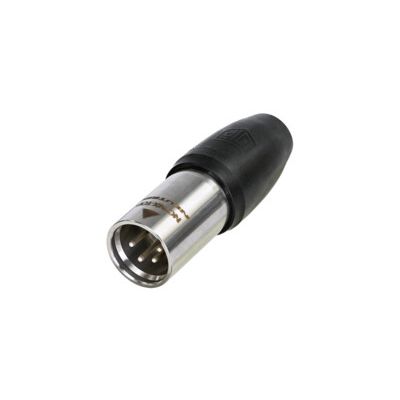

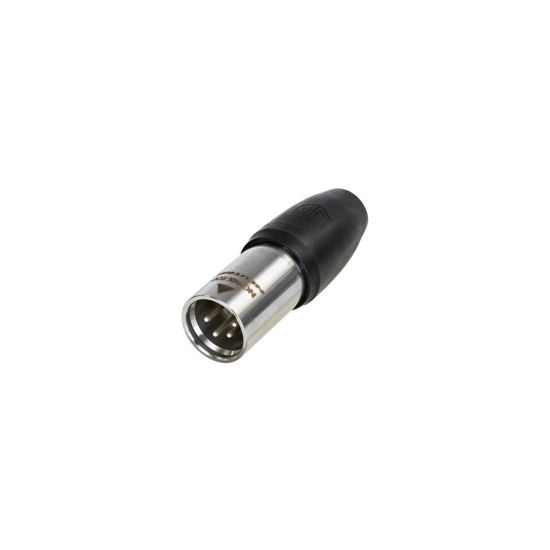

Neutrik | NC4MX-TOP

4 pole male cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts

The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable connector of the XLR TOP range (IP65).

Gold contacts are standard.

Features

  • Heavy-duty sealed XLR connector range for harsh and demanding environment
  • Outdoor protection according to IP65
  • Uses high impact UV resistant materials
  • IEC 61984 certified



  • Product: NC4MX-TOP
  • Connection Type: XLR
  • Gender: Male

Electrical

  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 10 A
  • Rated voltage: 50 V

Mechanical

  • Cable O.D.: 5.0 – 8.0 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: < 2.5 mm²
  • 16 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock

Material

  • Bushing: UV-resistant rubber
  • Contact plating: Gold (Au) over Nickel (Ni)
  • Contacts: Brass
  • Insert: Polyamide
  • Locking element: St3K32 (latch) / Ck 67 (spring)
  • Shell: Zinc diecast
  • Shell plating: Nickel
  • Strain relief: Polyacetal
  • Sealing jacket: UV-resistant rubber

Environmental

  • Flammability acc. to UL94: V-0 (insert)
  • Standard compliance: IEC 61076-2-103
  • Protection class acc. IEC 60529: IP65 (mated)
  • Solderability acc. to: IEC 60068-2-20
  • Temperature range: -30 °C to +80 °C
  • Pollution degree acc. to IEC 60664-1: II
Meer informatie
Merk Neutrik
nc4mx-top (66.92 kB)
