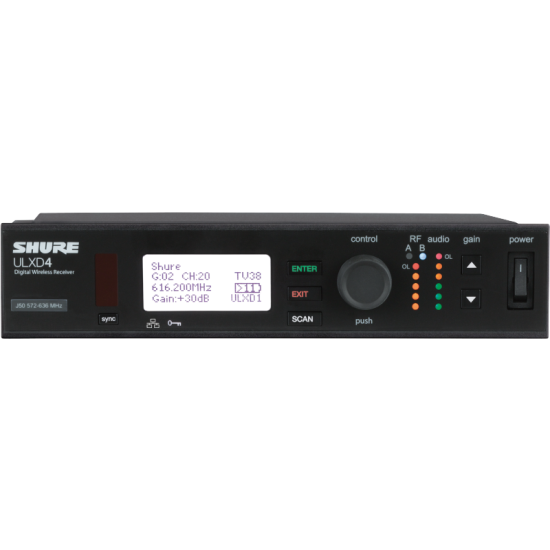

Shure | ULXD4

Shure | ULXD4

Digital wireless receiver offers a spectrum and RF intelligent option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 72 MHz tuning range, and AES 256 encryption for security.

• Digital Predictive Switching Diversity
• Up to 72 MHz tuning range (region dependent)
• Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync
• Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications
• Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel
• Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control
• Compatible with AMX and Crestron control systems
• Interference detection and alerts
• Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator
• Removable half wave antennas
• 24 bit / 48 kHz digital audio
• 20 Hz – 20 kHz frequency range with flat response
• Greater than 120 dB dynamic range
• Up to 22 active transmitters in one 8 MHz TV channel in standard mode; High Density mode enables up to 63 active transmitters in one  8 MHz TV channel
• AES-256 bit encryption equipped for secure wireless transmission

• Product series: ULX-D
• Component: Wireless receiver
• Receiver type: Single
• Usage environments: Theater stage
• Frequency band: G51 (470–534 MHz), H51 (534-598 MHz) or K51 (606-670 MHz)
• Dante audio network interface: No
• Network ability: DHCP, link-local, static
• Antenna cascade: No
• Line/Mic switch: Yes
• Image rejection: 70 dB
• Phantom power protection: Yes
• Media control system connection: No
• Connector: 3-pin XLR
• Included power supply: EU
• On/Off switch: Yes
• Mute switch: No
• Status indicator: LED
• Logic output: No
• Weight: 913 g
• Dimensions (WxHxD): 197 × 42 × 171 mm
• Color: Black
• Optional accessories: PS43
