Shure | UA221 - Passive 2-way Antenna Splitter Kit Shure | UA221 - Passive 2-way Antenna Splitter Kit
Shure | UA221 - Passive 2-way Antenna Splitter Kit

Shure | UA221 - Passive 2-way Antenna Splitter Kit

€ 190,00 Excl. BTW
Beschikbaarheid:
Op voorraad
Art. code
SU-39.0021

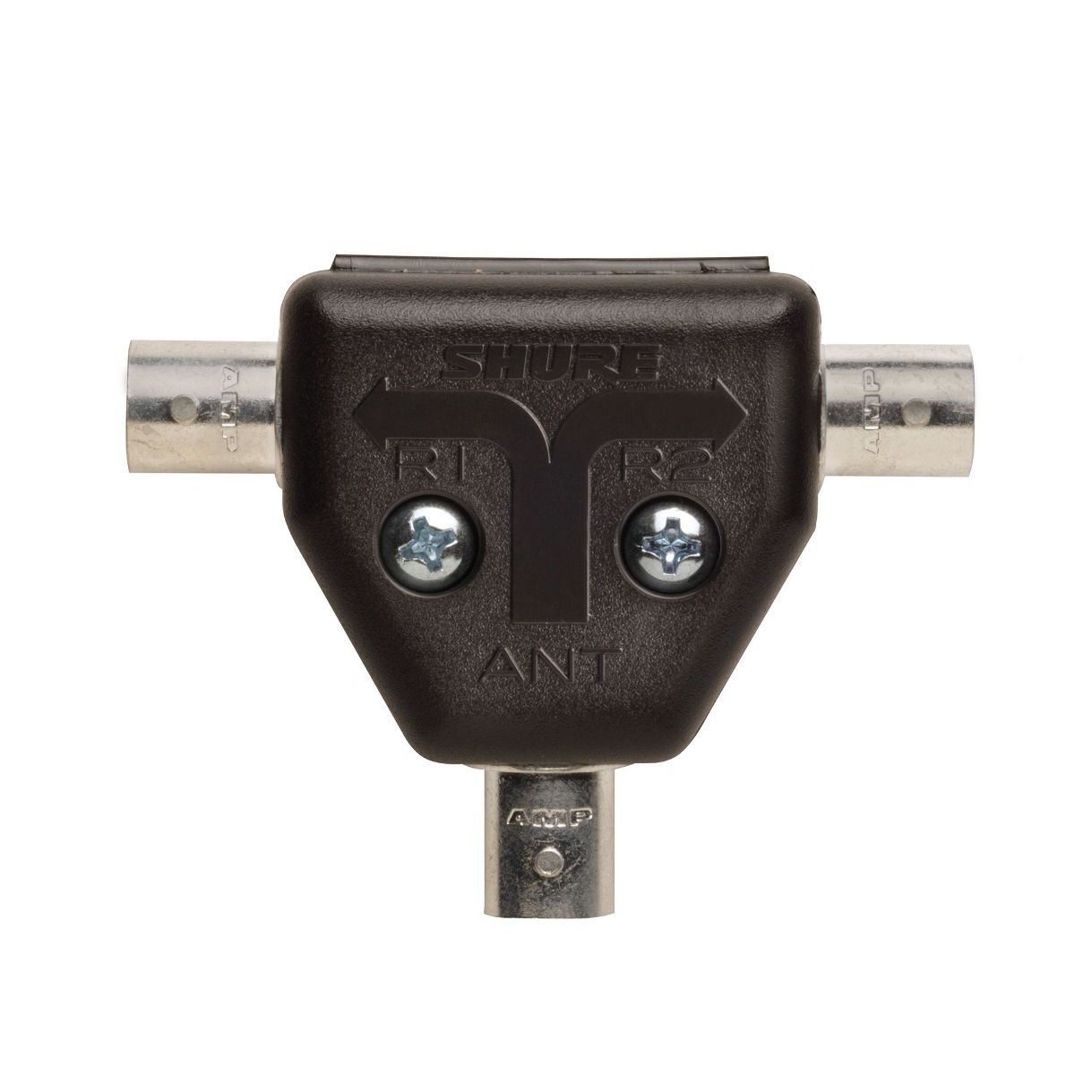

Shure - UA221 - Antenna splitter/combiner kit

Antenna Splitter/Combiner Kit, Passive, for UC4, SLX4, ULXS4, ULXP4, QLXD4, U4S, U4D, UR4S, UR4D, ULXD4, ULXD4D, and ULXD4Q.
In the box: 2x UA221 splitter/combiner, 4 coaxial cables and attaching hardware

Features

  • The UA221 Kit lets you split an incoming signal into two outgoing signals or combine two incoming signals into one signal. Each kit includes two UA221 Splitter/Combiners, four coaxial cables, and attaching hardware.
  • The UA221 Splitter/Combiners are designed for use with Shure Model UA8 1/2 wave omnidirectional receiver antenna, UA400 1/4 wave UHF antennas, UA820 1/2 wave antennas (discontinued), and UA802/UA825/UA850/UA8100 50 ohm low loss antenna cable.
  • Frequency Range: UA221/UA221-C-J 10 MHz-1000 MHz
  • Voltage Standing Wave Ratio (VSWR): 2:0
  • Impedance: 50 Ω
  • Isolation: 20 dB
  • Insertion Loss: 2 dB (3 dB splitter loss not included)
  • Dimensions: 64 x 48 x 22 mm (H x W x D)
  • Weight: 45.3 g (1.6oz.)
Meer informatie
Merk Shure
