The MFN300-B is a multifunction box with various functions, such as power switch control, sensor connection, and
audio output.

Features

• RS232 serial port or Gigabit Ethernet port communication
• Connected via Ethernet port before the first receiving card, or after the last receiving card
• Timer function, able to replace a timer and delayer
• Temperature detection of the power distribution box

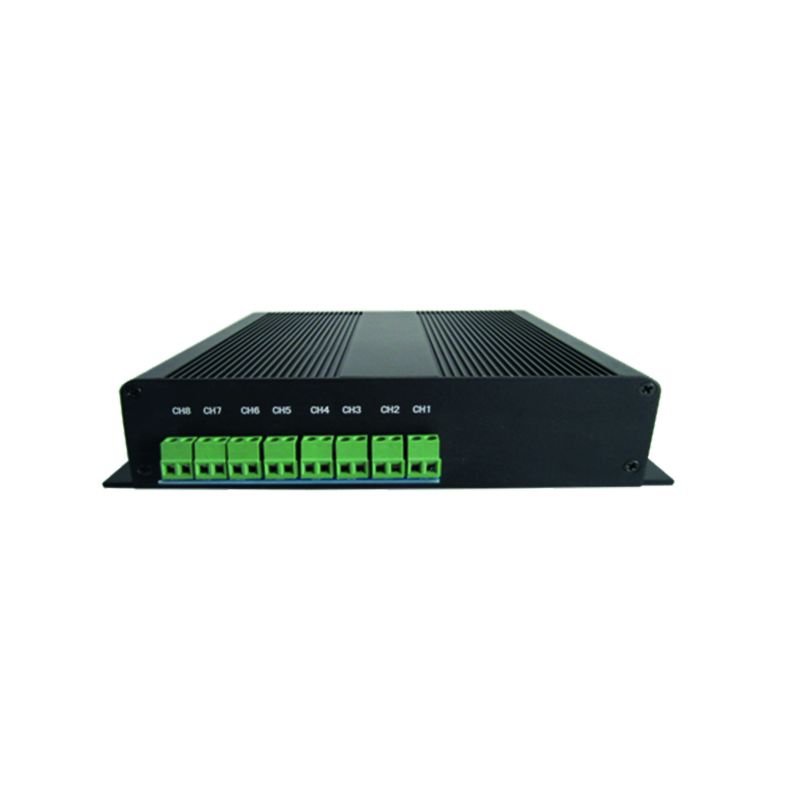

• 8x Channels of power switch control

• 2x Sensor ports to connect light sensors for automatic brightness adjustment, or connect other peripherals, such
  as temperature sensors
• 1x Audio output port

Electrical Specifications

• Input voltage: AC 100V–240V, 50/60Hz
• Rated current: 0.05 A
• Maximum power consumption: 5 W

Operating Environment

• Temperature: –20°C to +75°C
• Humidity: 0% RH to 90% RH, non-condensing

Physical Specifications

• Dimensions: 204.0 mm × 163.0 mm × 48.0 mm
• Net weight: 1154.6 g

Packing Information

• Packing box dimensions: 280.0 mm ×120.0 mm ×217.0 mm
• Packing list: 1x Power cord, 1x Signal cable, 1x Certificate of Approval

Power Switch Control

• Rated voltage: AC 250 V / DC 30 V
• Rated current: 3 A

Certifications

• FCC, IC
