NovaStar - T50 NovaStar - T50 NovaStar - T50 NovaStar - T50
NovaStar - T50

NovaStar - T50

Prijs op aanvraag
Levertijd:
Ca. 2 weken*
Art. code
NS-60.0002

NovaStar - T50

The Novastar Taurus T-50 is both an LED Processor and Multimedia Player suitable for small to medium LED screens up to 1,300,000 pixels. Thanks to the innovative configuration software and cloud control, you can control an LED screen with great ease from any PC, laptop, smartphone or tablet.

Features:

  • All-in-one solution: media player and sending card with scaling function
  • Suitable for small to medium LED screens up to 1,300,000 pixels

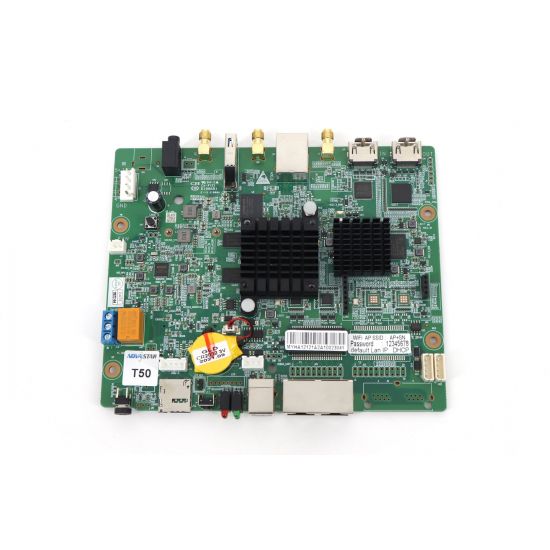

  • PCB version (no housing)
  • Connect via Ethernet, Wi-Fi or 4G
  • Upload new content and change screen settings remotely via Mobile/PC

Inputs

  • HDMI 1.4a: 1
  • Light Sensor Port: 1
  • Temperature Sensor Port:1

Outputs

  • Main Output Connector: TRS balanced 3.5 mm
  • HDMI 1.4a (Loop): 1

Playback

  • Internal Media Player: Yes
  • Processor: 1.8 GHz Quad-core
  • Operating Memory: 1 GB
  • Internal Storage Space: 16 GB
  • Local Content Upload: Ethernet, USB

Software Specifications

  • Control Software: Novastar LCT, VIPLEX Express, VIPLEX Handy, VNNOX

Wireless Specifications

  • Wi-Fi Mode: AP, STA

Extra Features

  • Scaling Function: Yes

Control and Programming

  • Control System: Novastar
  • Maximum Loading Capacity: 1.3 Mpx
  • Maximum Input Resolution: 1920 x 1080
  • Control Options: 4G mobile network, Ethernet, Wi-Fi

Electrical Specifications and Connections

  • Power Supply: 5 V DC
  • Power Consumption: 18 W
  • Power Connector In: Terminal
  • Data Connector In: RJ45, USB
  • Data Connector Out: RJ45

Mechanical Specifications

  • Length (Without Handles): 135 mm
  • Width (Without Handles): 165 mm
  • Height (Without Handles): 25 mm
  • Weight: 0.213 kg
  • IP Rating: IP20 (indoor use only)

Thermal Specifications

  • Maximum Ambient Temperature: 60 °C
  • Minimum Ambient Temperature: -20 °C
  • Operating Humidity: 0-80 %rH

Included Items

  • Included Accessories: WiFi antenna
Meer informatie
Merk NovaStar
