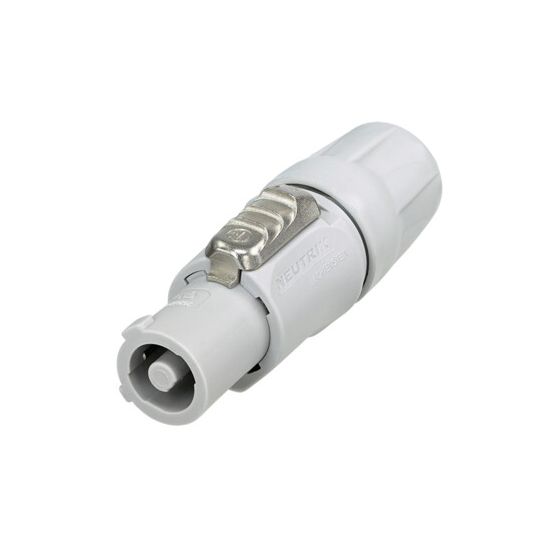

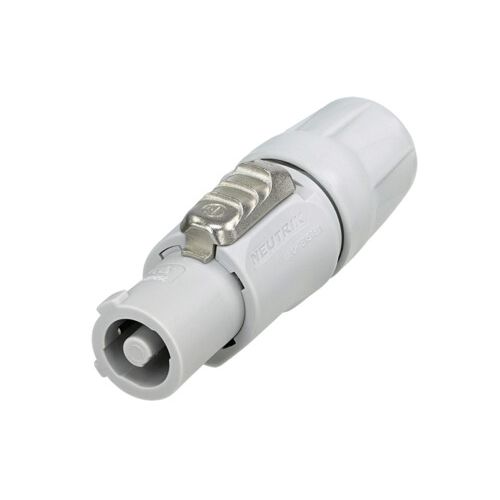

Neutrik | NAC3FCB - PowerCON Cable Connector 3 Pole Female
Lockable cable connector, power-out, screw terminals, grey.
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: This powerCON is a connector without breaking capacity, i.e. it must not be connected or disconnected under load or live!
Features
- Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Fast and easy twist lock latching system
- Extremely robust and reliable
- Ergonomic design
- Unique Neutrik chuck type strain relief
- Improved kink protection by two-component bushing
- UL, cUL recognized components
- VDE certified
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product Title: NAC3FCB
Gender: female
Electrical
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 4 kVdc / 2.8 kVac
- Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
- Number of electrical contacts: 2 + PE
- Rating Europe: EN 61984: 20 A 250 V AC
- Rating USA: UL 1977: 20 A 250 V AC
Mechanical
- Cable O.D.: 6 - 15 mm (limited to 6 - 14 mm according to VDE)
- Lifetime: > 1000 mating cycles
- Wiresize: 2.5 mm² / 12 AWG
- Locking device: Quick Lock
Material
- Contact plating: 4 µm Ag
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6 30 % GR)
- Locking element: Zinc diecast (ZnAl4Cu1)
- Shell: Polyamide (PA 6 30 % GR)
- Strain relief: Polyacetal (POM)
Environmental
- Temperature range: -30 °C to +80 °C
- Protection class: IP20
- Flammability Rating: UL 94 HB
