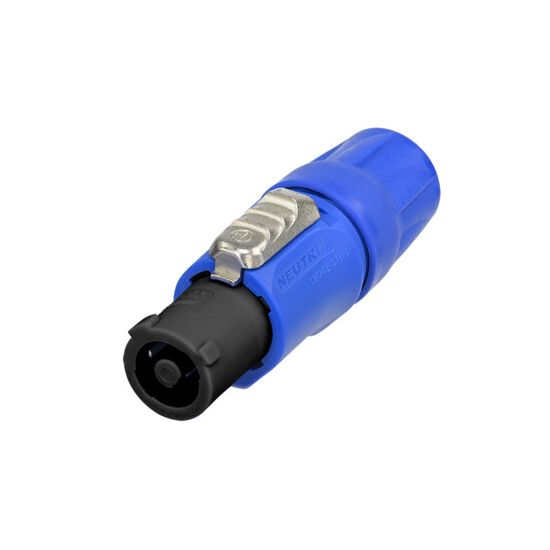

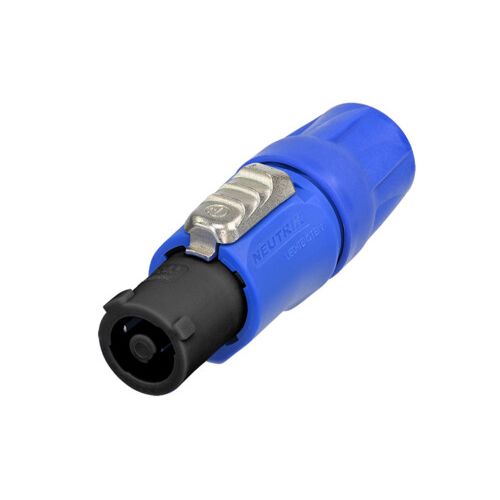

Neutrik | NAC3FCA-1 - PowerCON Connector V-0 Female Blue

Neutrik | NAC3FCA-1 - PowerCON Connector V-0 Female Blue

Lockable cable connector, power-in, screw terminals, blue, V-0 Insert.

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Features

• Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Fast and easy twist lock latching system
• Extremely robust and reliable
• Ergonomic design
• Unique Neutrik chuck type strain relief
• Improved kink protection by two-component bushing
• UL, cUL recognized components
• VDE certified
• V-0 Flammability rated insert
• Circuit Breaking Capability (IEC 61984) when mated with powerCON XX Series Receptacles

Product Title: NAC3FCA-1
Gender: Female

Electrical:

• Contact resistance: ≤ 2 mΩ
• Dielectric strength: 4 kVdc / 2.8 kVac
• Insulation resistance: > 10 GΩ (initial)
• Number of electrical contacts: 2 + PE
• Rating Europe: EN 61984:20 A 250 V AC
• Rating USA: UL 1977:20 A 250 V AC

Mechanical:

• Cable O.D.: 6 - 15 mm (1)
• Lifetime: > 1000 mating cycles
• Wiresize: 2.5 mm²
• Wiresize: 12 AWG
• Locking device: Quick Lock
• (1) Cable O.D. range limited to 6 mm - 14 mm acc. VDE

Material:

• Contact plating: Ag
• Contacts: Copper Alloy
• Insert: Polyamide (PA 6.6)
• Locking element: Zinc diecast
• Shell: Polyamide (PA 6.6)
• Strain relief: Polyacetal

Environmental:

• Temperature range: -30 °C to +80 °C
• Protection class: IP 20
• Flammability Rating: UL 94 V-0
