Neutrik | NE8FDY-C6-B - EtherCON Connector CAT6 Female Black

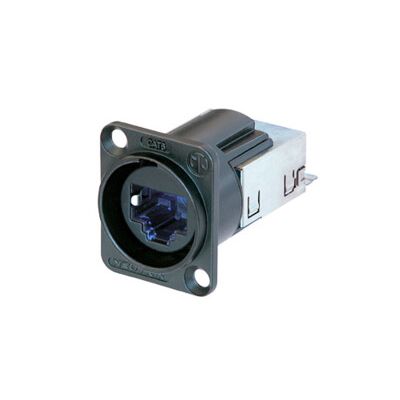

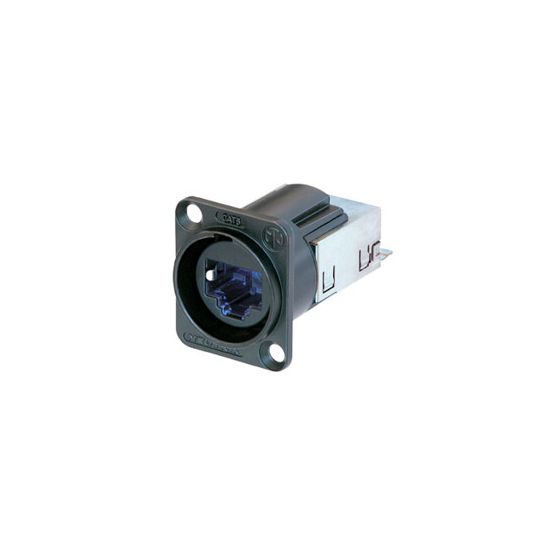

The etherCON CAT6 D-shape panel connectors with black metal housing and secure latching system offer a tool-free and gas-tight IDC termination, which makes cable assembly easy and fast.

Attention! Intermates ONLY with NE8MC6-MO, NKE6S-* and generic RJ45 connectors.
Not compatible with the etherCON cable connector carriers NE8MC*, NE8MX* and the CAT6A cable connectors NE8MX6*.

Features
  • CAT6 compliant - data rate up to 10 GBit/s
  • CAT6 performance - fast data transmission and high bandwidth applications
  • IP65 - Dust and waterproof in mated condition
  • Shielded system - high noise immunity and EMI protection
  • Push Pull mating - secure and proven locking system
  • Ground lead jumper on panel connector with selectable grounding option
  • Gas-tight IDC termination without tool
  • CAT6 / Class EA according to TIA/EIA 568C and ISO/IEC 11801
  • PoE type 4 class 8 (100W) acc. IEEE 802.3bt

Product: NE8FDY-C6-B
Gender: female

Electrical

  • Contact resistance: < 50 mΩ
  • Dielectric strength: 1 kVdc
  • Frequency range: 1 - 250 MHz
  • Insulation resistance: > 0.5 GΩ
  • Rated current per contact: 1,5 A
  • Rated voltage: ≤ 57 V
  • Transmission performance: CAT6A acc. to TIA/EIA 568C channel specifications
    CLASS EA acc. to ISO/IEC 11801 channel specifications
  • Power over Ethernet: PoE type 4 class 8 (100W) acc. IEEE 802.3bt

Mechanical

  • Insertion force: ≤ 40 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Panel thickness: max. 3 mm , 0.12''
  • Wiresize: solid: 0.205 - 0.324 mm² (AWG 24 – AWG 22)
  • Wiresize: stranded: 0.141 – 0.355 mm² (AWG 26/7 – AWG 22/7)
  • Locking device: Push-Pull
  • Chassis shape: D

Material

  • Contact plating: 0.7 µm Au over 1.2 µm Ni plating
  • Contacts: Bronze (CuSn8)
  • Insert: Polycarbonate
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black KTL
  • Strain relief: Stainless steel

Environmental

  • Flammability: UL 94 HB
  • Protection class: IP 65
  • Temperature range: -10 °C to +60 °C
  • Standard compliance: ISO/IEC 11801-1 Ed. 1.0 (2017-11)
    IEC 60603-7-3 Ed.2.0 (2010-04)
    IEC 60512-99-002 Ed.2.0 (2022-01)
    IEC 60512-9-3 (2011-06)
