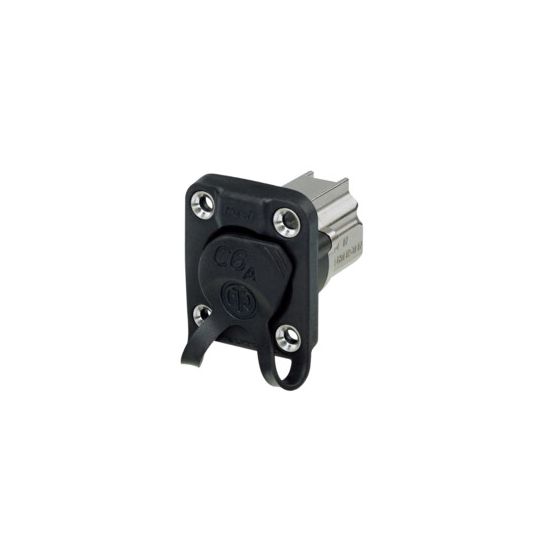

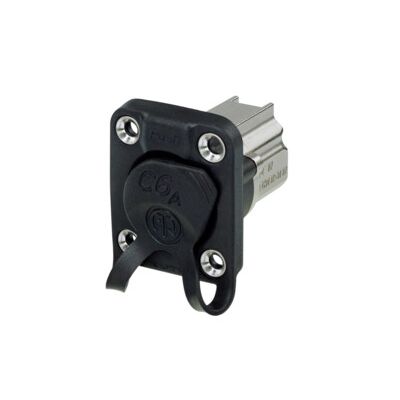

Neutrik | NE8FDX-Y6-W - etherCON CAT6A IDC chassis conn IP65

Neutrik | NE8FDX-Y6-W - Panel CAT6A Connector Female IP65

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

• Ruggedized connector with CAT6e / Class EA according to TIA/EIA 568C and ISO/IEC 11801
• PoE type 3 class 6 (60W) acc. IEEE 802.3bt
• Rugged latch lock system million fold proven
• IP65 ingress protection in mated condition and unmated when sealing cap is closed
• Intermateable with the existing etherCON CAT5 range
• Shielded system - high noise immunity and EMI protection

Product: NE8FDX-Y6-W
Gender: female

Electrical

• Dielectric strength: 1 kVdc
• Insulation resistance: > 0.5 GΩ
• Rated current per contact: 1.5 A
• Rated voltage: ≤ 57 V
• Transmission performance: CAT6A acc. to TIA/EIA 568C channel specifications
• CLASS EA acc. to ISO/IEC 11801 channel specifications
• Power over Ethernet: PoE type 3 class 6 (60W) acc. IEEE 802.3bt

Mechanical

• Lifetime: > 1000 mating cycles
• Wiresize: solid: AWG 26/1 - AWG 22/1
• Wiresize: stranded: AWG 26/7 - AWG 22/7
• Locking device: Latch lock
• Mounting direction: Front mounting
• Insulation diameter: 0.85 - 1.6 mm

Material

• Contact plating: Au
• Gasket: Rubber (EPDM)
• Shell: Zinc diecast (ZnAl4Cu1)

Environmental

• Flammability: UL 94 V-0
• EN 45545 R26
• Protection class: IP 65
• Temperature range: -40 °C to + 70 °C
• Standard compliance: ISO/IEC 11801-1 Ed. 1.0 (2017-11)
• IEC 60603-7-3 Ed.2.0 (2010-04)
• IEC 60512-99-002 Ed.2.0 (2022-01)
• IEC 60512-9-3 (2011-06)
• EN 45545-2:2020+A1:2023 (R26, clause 4.2, clause 4.3.2)
