Eurotruss | FD32

Eurotruss | FD32

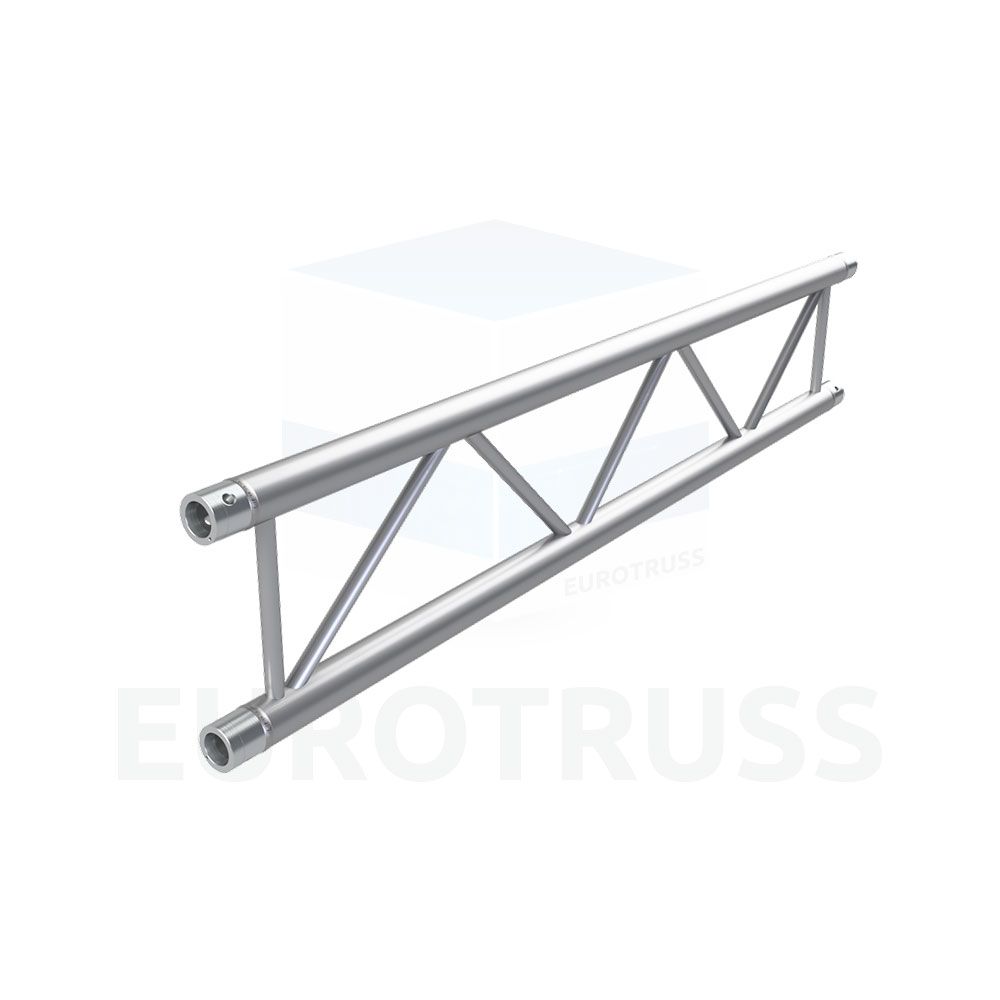

FD32 Ladder Truss, a truss for vertical and horizontal rigs, this truss made out of two main tubes combined with the eurotruss bracing pattern is already a great start.

Together with the tolerance free conical connector system the straight elements lend themselves perfectly to use a a span exposed to bending stress.

Combined with FD34 Truss they possess a broad range of applications.

Made with the fast CS1 connection system.

Facts

• TüV approved
• Also available in any non-standard length and shape
• Tolerance free conical connector system
• Compatible with FD34

• Product: Eurotruss
• Connection Type: CS1-CON
• Height: 290 mm (11.42 in)
• Width: 50 mm (1.97 in)
• Main Tube: 50 x 2 mm (1.97 x 0.08 in)
• Braces: 20 x 2 mm (0.79 x 0.08 in)
• Weight: ~3 kg/m (~2 lbs/ft)
• Pin Position: Diagonal
• Material: EN AW-6082 T6
