Eurotruss | FD34

Eurotruss | FD34

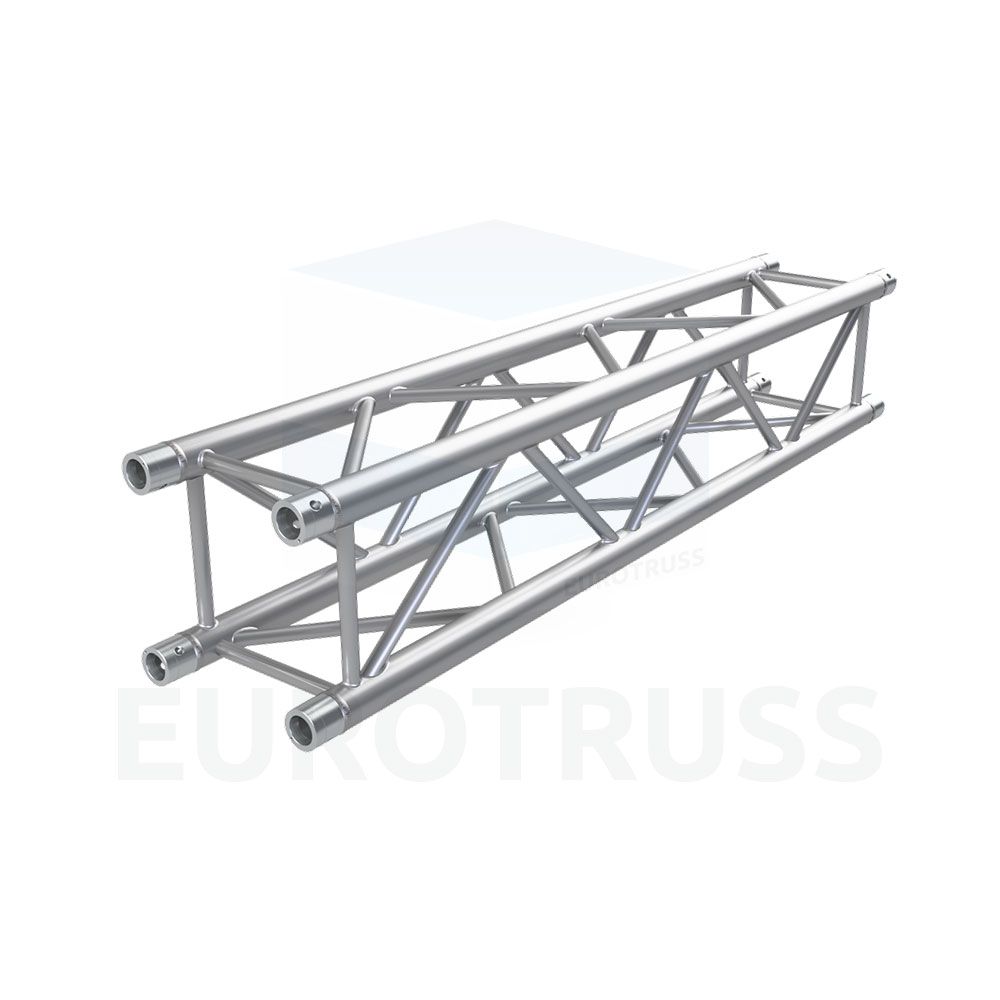

FD34 is the classic 29cm box truss that has proven itself over the years as the ultimate multipurpose truss. The straight elements lend themselves perfectly for spans up to 16m or as standard tower elements.

A wide variety of corners and accessories is available for this type of truss, such as Fixed Corners, Corner Blocks and Book Corners.

Designed for high frequency usage or installations, which demand higher loading. The perfect trussing system for rental, touring and exhibition companies.

Made with the fast CS1 connection system.

Features

• TüV approved
• Also available in any non-standard length and shape
• Tolerance free conical connector system
• FD34 is also available as a Tower Truss

• Height: 290 mm (11.42 in)
• Width: 290 mm (11.42 in)
• Main Tube: 50 x 2 mm (1.97 x 0.08 in)
• Braces: 20 x 2 mm (0.79 x 0.08 in)
• Weight: ~6 kg/m (~4 lbs/ft)
• Pin Position: Diagonal
• Material: EN AW-6082 T6
• Connection: CS1-CON
