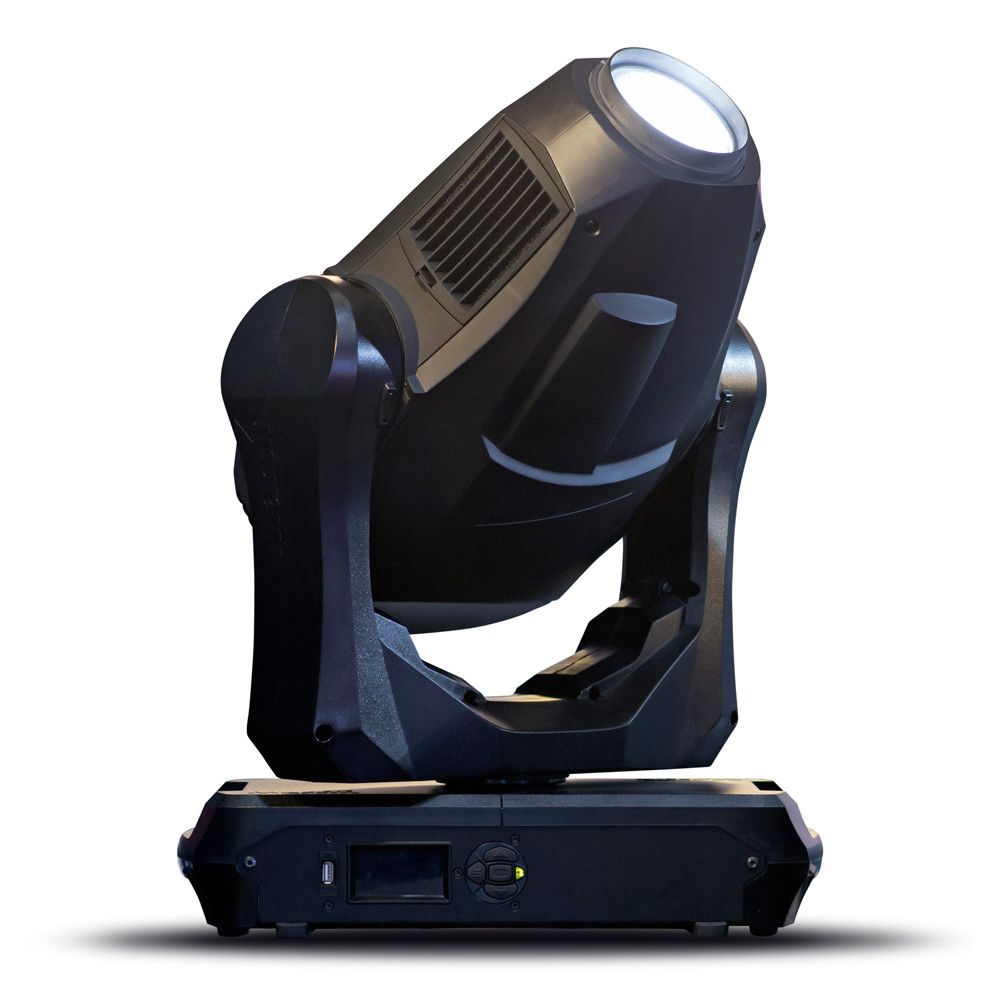

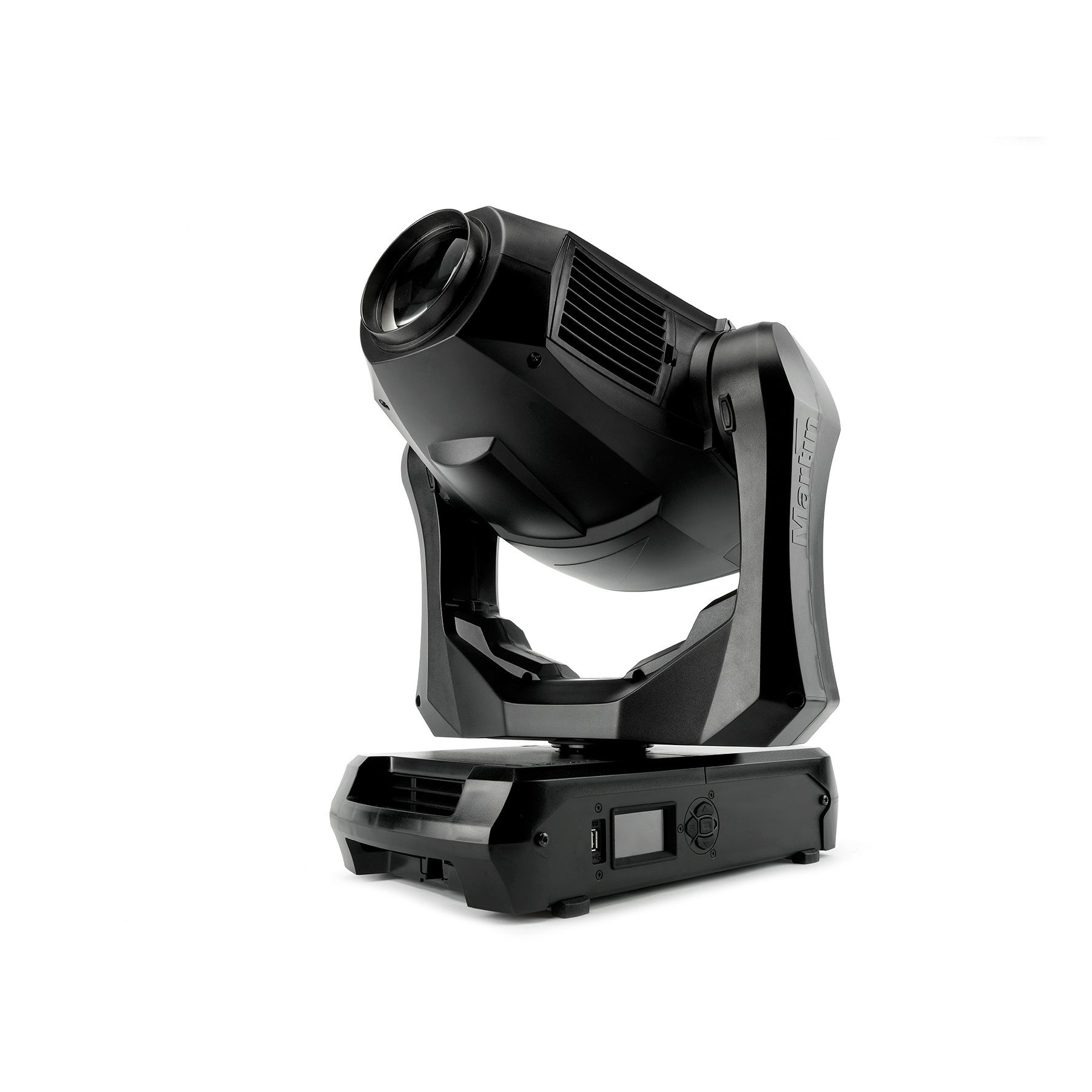

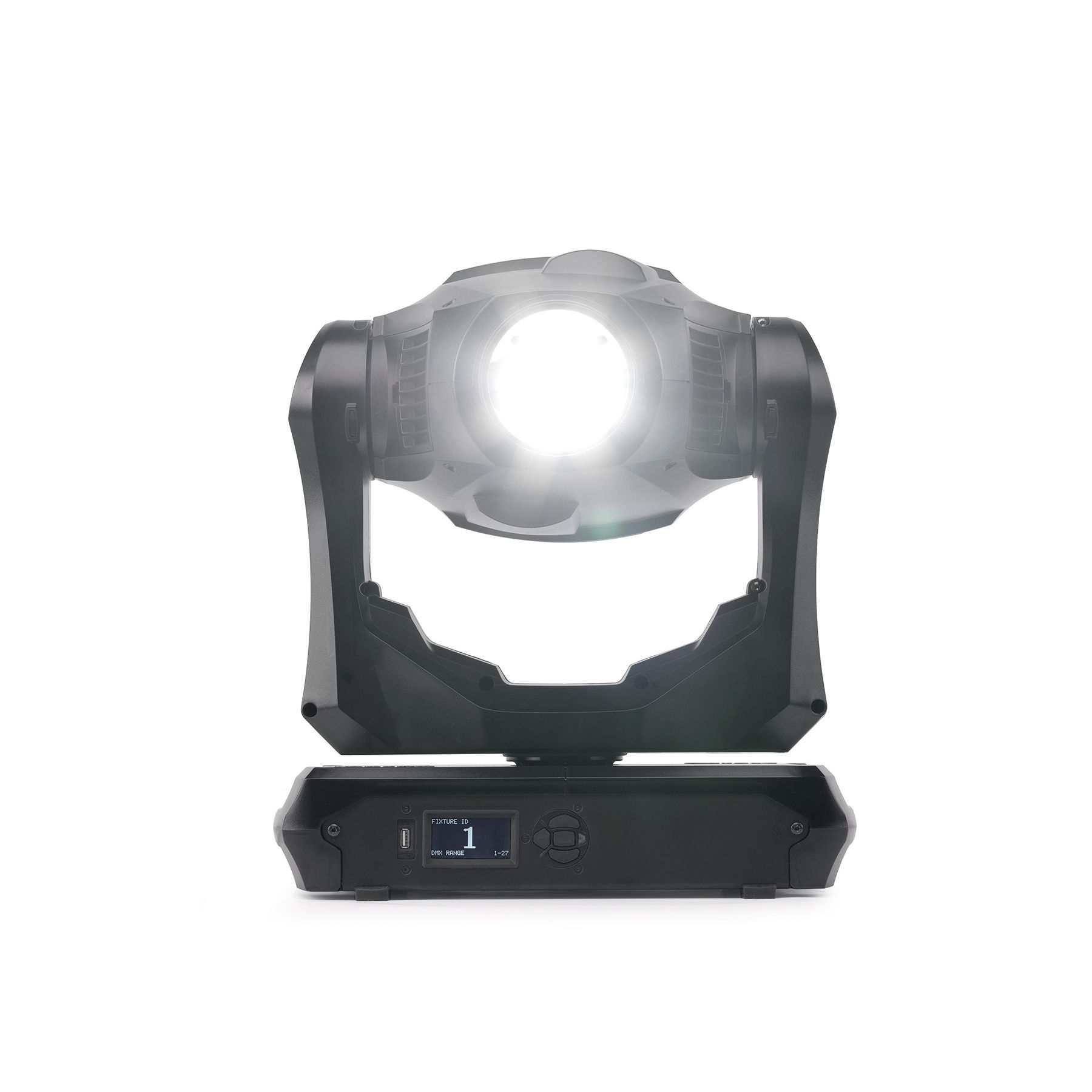

Martin - MAC Quantum Profile

Martin - MAC Quantum Profile

This extremely bright LED profile fixture combines top-quality white light with a fast, smooth CMY color mixing system and crisp gobo projection on surfaces as well as mid-air.

With all this and the new Animotion™ FX system that allows never-before seen beam animations, the market is now finally seeing the first real 700/800 W discharge lamp replacement in a profile fixture that effectively harnesses cutting-edge LED technology.

• First real alternative to a 700/800 watt HID fixture
• Flat field, crisp image, high contrast
• Full feature set including CMY color mixing and 1:3 zoom

Features

• First real alternative to a 700/800 watt HID fixture
• Flat field, crisp image, high contrast
• Full feature set including CMY color mixing and 1:3 zoom
• Very low weight and compact design
• Super high-speed movements and effects
• Consistent photometric performance via latest LED technology

Physical

• Length: 452 mm (17.8 in.)
• Width: 431 mm (17.0 in.) across yoke
• Height: 642 mm (25.3 in.) head straight up 648 mm (25.5 in.) maximum
• Weight: 23.2 kg (51.1 lbs.)

Dynamic Effects

• Electronic dimming: Four dimming curve options
• Color mixing: CMY, independently variable 0 - 100%
• Color wheel: 6 color filters plus open
• Beam effects: Rotating three-facet prism
• Rotating gobo wheel: 6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shake
• Static gobo wheel: 10 gobos plus open, wheel indexing, rotation and shake
• Shutter effect: Electronic, with variable speed regular and random strobe
• Iris: 0 - 100%, pulse effects
• Zoom: Motorized
• Focus: Motorized, with zoom-focus tracking
• Pan: 540°
• Tilt: 268°
• Pan and tilt speed: Adjustable via onboard control panel and DMX

Control and Programming

• Control systems: DMX
• RDM: Implemented
• Control resolution: 8-bit, with 16-bit control of dimming, gobo indexing, zoom, focus, pan and tilt

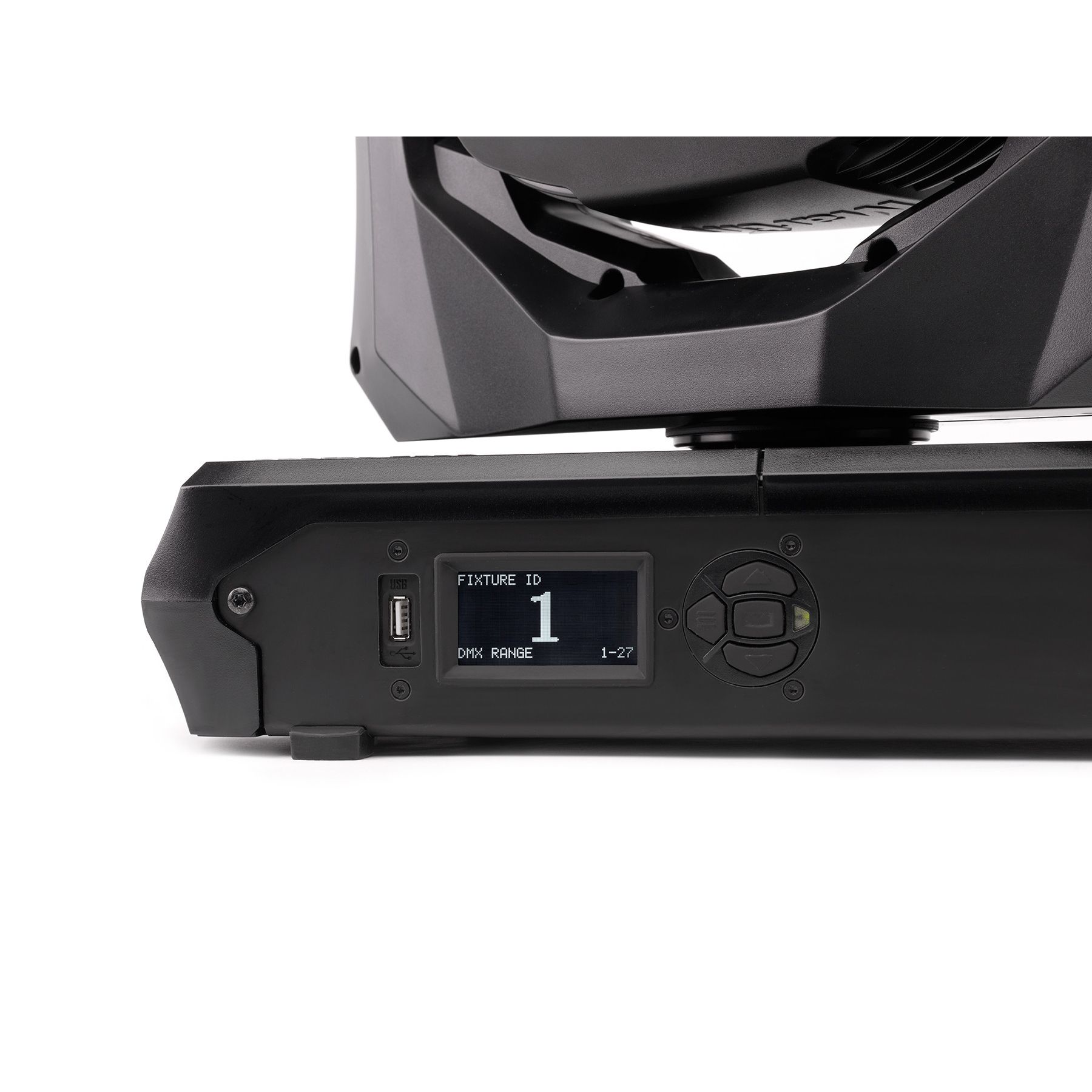

• Setting and addressing: Control panel with backlit graphic display
• DMX channels: 19/27
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• Transceiver: RS-485
• Fixture software update: Direct using USB memory stick or via DMX link using Martin USB Duo™ DMX Interface Box

Optics

• Zoom range: 12° - 36° (1:3)
• Light source: 475 W LED engine
• LED refresh rate: 3000 Hz
• Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
• Output: 12,700 lumens
• *Figure obtained under manufacturer´s test conditions

Construction

• Housing: High-impact flame-retardant thermoplastic
• Color: Black
• Protection rating: IP20

Installation

• Mounting points: 4 pairs of quarter-turn locks
• Location: Indoor use only, must be fastened to surface or structure
• Orientation: Any
• Minimum distance to combustible materials: 0.2 m
• Minimum distance to illuminated surfaces: 2.0 m

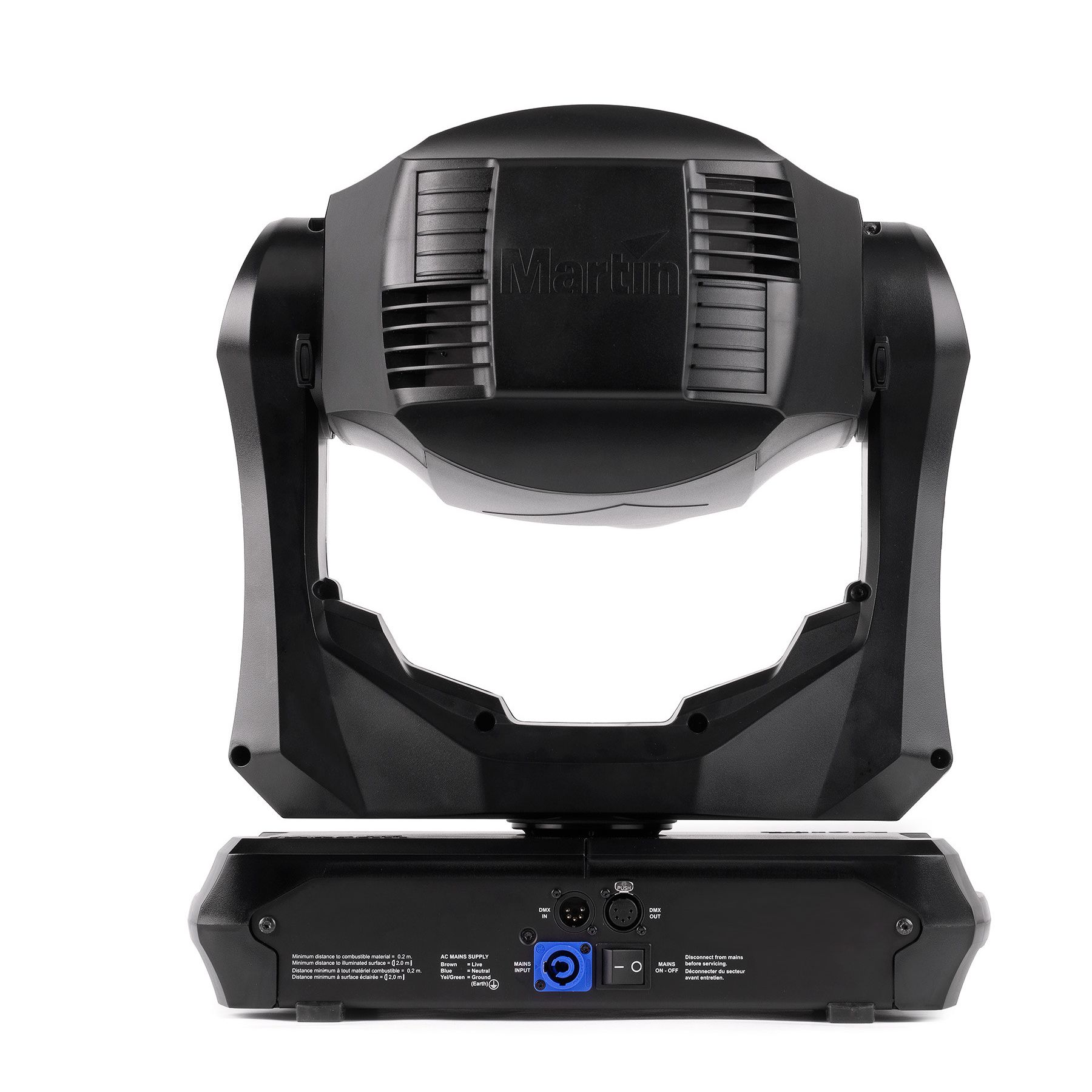

Connections

• AC power input: Neutrik PowerCon
• DMX and RDM data in/out: 5-pin locking XLR

Electrical

• AC power: 120-240 V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch mode
• Typical half-cycle RMS inrush current: 10.3 A
• Maximum total power consumption: 750 W
• Typical power consumption, all effects static, zero light output: Approx. 50 W
