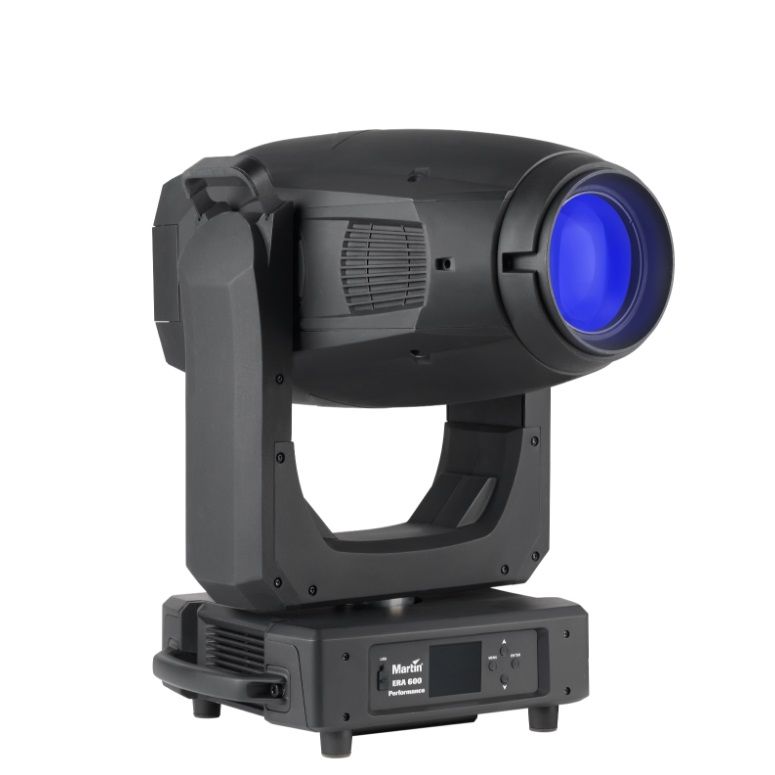

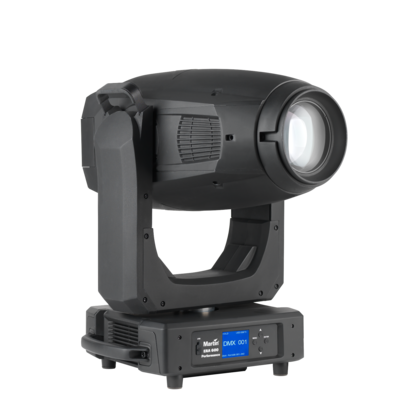

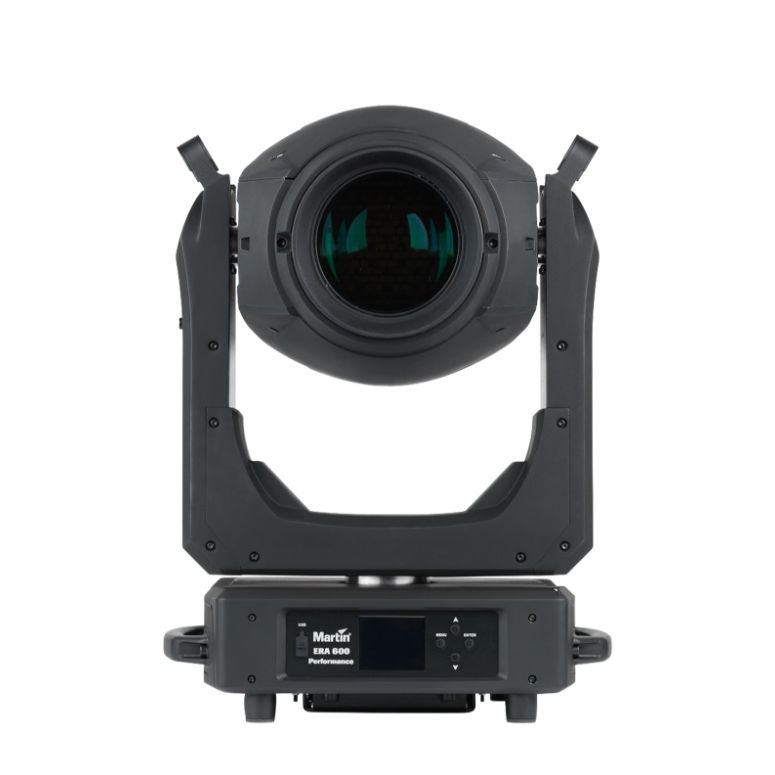

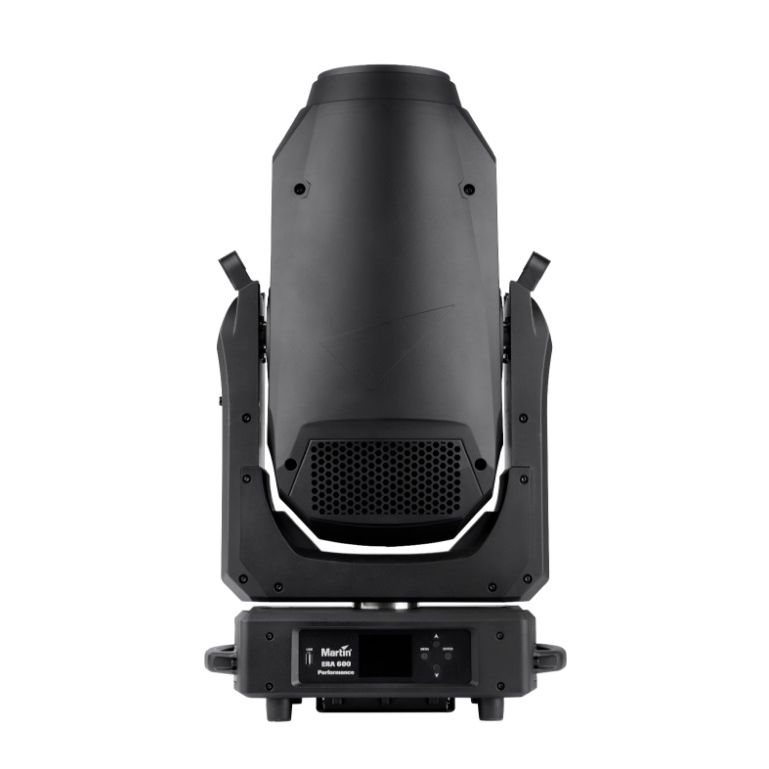

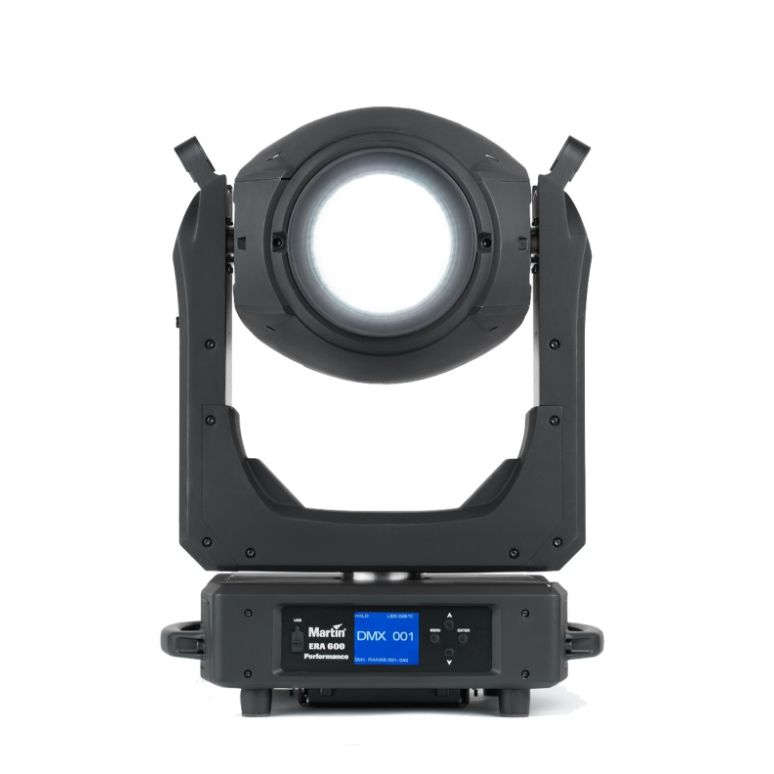

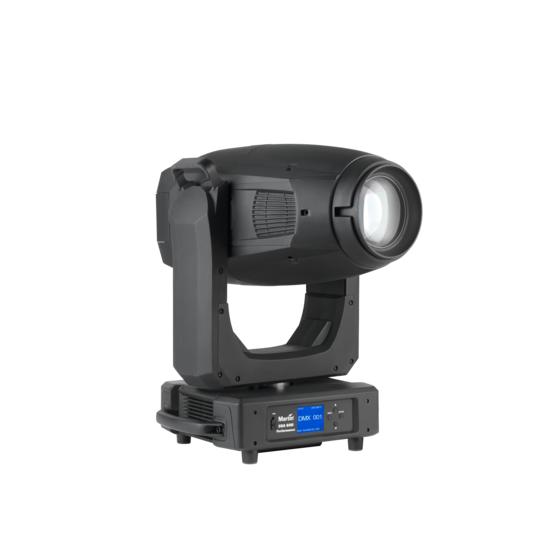

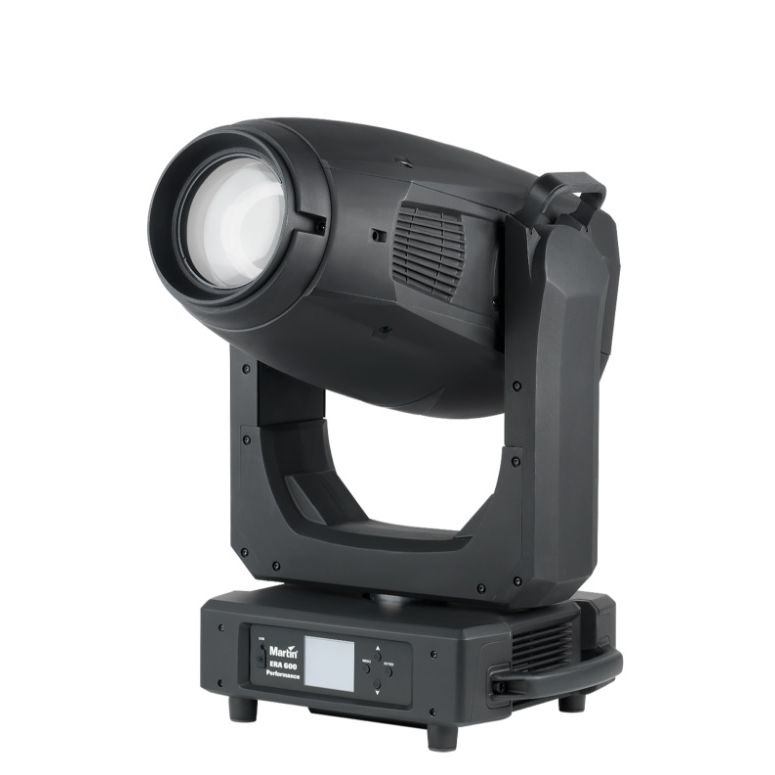

Martin - ERA 600 Performance

Designed to fulfill the demand for a bright, compact, tour-worthy moving head, the Martin ERA 600 Performance combines a feature-loaded, rugged, yet cost-efficient profile for entertainment and rental applications.

It features a highly efficient 550W white LED engine that produces a bright, sharp 6,500K image projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, full CMY color mixing and separate color wheel, variable color temperature control, animation wheel, iris for beam adjustment and fixed and rotating gobo wheels, loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the two included rotating prisms and soft frost filter.

The ERA 600 Performance includes a full curtain framing system which offers lighting designers a high degree of flexibility to achieve precise looks on stage.

Perfect for larger stage and live productions, the Martin ERA 600 Performance is ideal for a long list of scenarios, requiring a bright, yet truly versatile LED profile that offers near limitless design and usage potential.

Features:

  • Bright 550 watt / 6,500K LED light source
  • 19,000 lumen output
  • Crisp optics with flat field
  • 1:8 Fast zoom
  • CMY color mixing - Vibrant color mixing with a superior palette of colors matching the MAC range
  • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
  • 7-slot color wheel –for added color choice and split color effects
  • Full Curtain Framing blades with +/- 60° rotation of entire system for flexible shape generation
  • 7 rotating/indexing gobos – All renowned Martin glass gobos
  • 8 static gobos for great morphing effects
  • Animation wheel with continuous bi-directional rotation
  • Two prisms - 4-facet and linear – rotation and index control for dynamic effects
  • Soft frost – A light frost leaves gobo artwork visible with a beautiful soft edge.
  • Compact and low weight design

Physical

  • Length: 416 mm (16.4in.)
  • Width: 290 mm (11.4in.)
  • Height: 734 mm (28.9in.)
  • Weight: 30.0 kg (66.1lbs)

Dynamic effects

  • Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
  • Electronic dimming: 0 - 100%, four dimming curve options
  • Color mixing: CMY, independently variable 0-100%
  • Color temperature control: Variable 6500 - 2700 K
  • Color wheel: 7 color filters plus open
  • Gobo animation: Animation wheel, indexing, continuous rotation with variable speed and direction
  • Rotating gobo wheel: gobos plus open, wheel rotation, gobo rotation, indexing and shake
  • Static gobo wheel: 8 gobos plus open, wheel indexing, rotation and shake
  • Iris: 0-100%
  • Zoom: Motorized
  • Focus: Motorized
  • Framing: Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position.
  • Prism: 2 rotating/indexing prisms (4-facet circular prism and 6-facet linear)
  • Frost: Soft frost effect
  • Pan: 540°, coarse & fine control and speed
  • Tilt: 260°, coarse & fine control and speed

Control and programming

  • Control options: DMX
  • 16-bit control: Dimming, pan and tilt
  • Setting and addressing: Control panel with backlit LCD display
  • DMX channels: 41
  • DMX compliance: USITT DMX512/1990
  • RDM compliance: ANSI/ESTA E1.20
  • Transceiver: Opto-isolated RS-485

 Optics

  • SFront lens diameter: 120 mm
  • Zoom range: 6° - 45°
  • Light source: 550W LED engine
  • Minimum LED lifetime: 20000 hours (to >70% luminous output)*

*Manufacturer´s figure obtained under manufacturer´s test conditions

Photometric data

  • Light engine luminous output: 37000 lumens
  • Fixture luminous output: 19000 lumens
  • CRI (Color Rendering Index) : >70
  • CCT: 6500 Kelvin
  • LED refresh rate : 3600 Hz

Construction

  • Housing: High-impact flame-retardant thermoplastic
  • Color: Black
  • Protection rating: IP 20

Gobos

  • Gobo diameter: 23.0 mm +0/- 0.2 mm (0.91 in. +/- 0.008 in.)
  • Maximum image diameter: 19.0 mm (0.75 in.)
  • Gobo thickness, maximum: 1.1mm (0.04 in.)

Installation

  • Mounting points: Two quarter-turn brackets for rigging
  • Orientation: Any

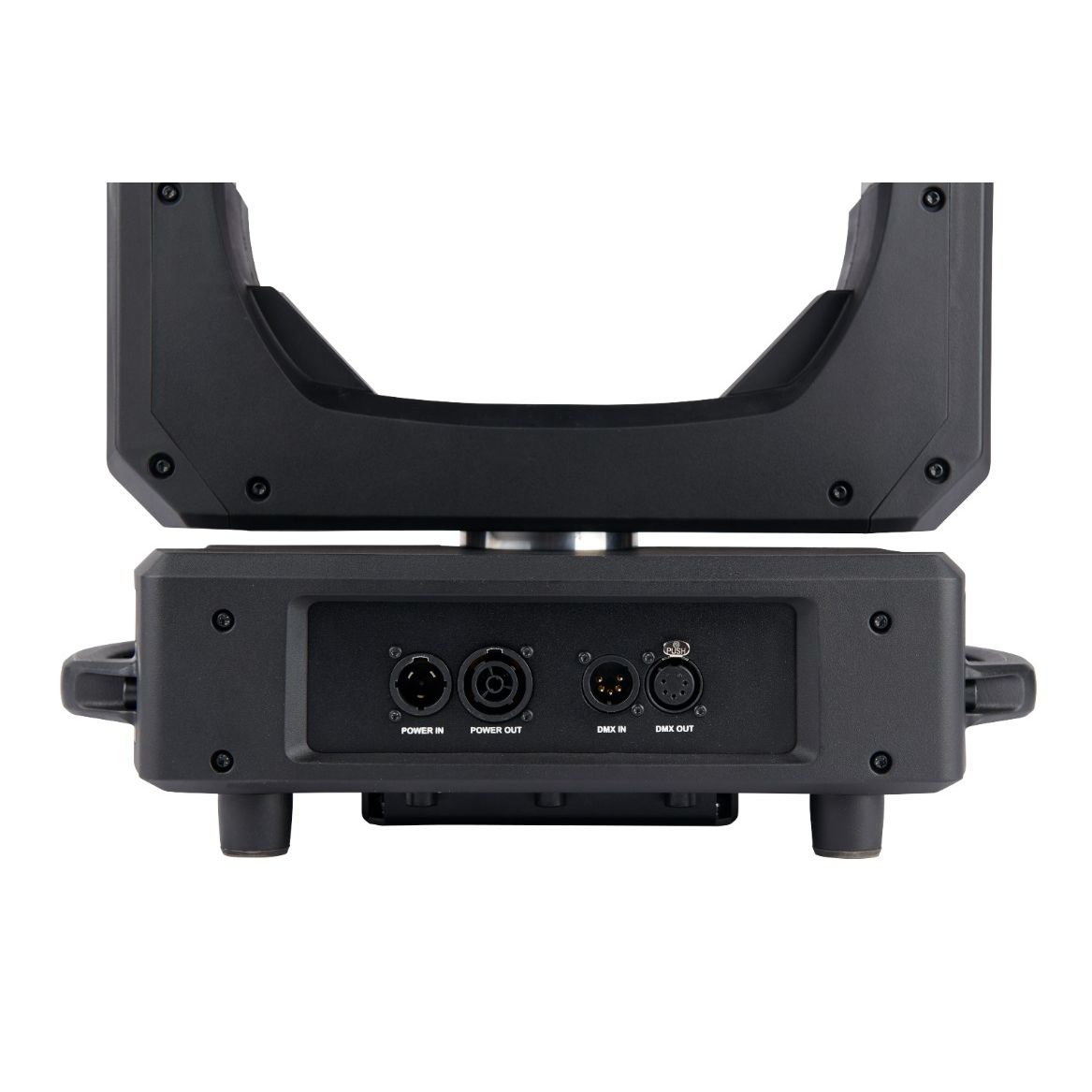

Connections

  • AC power in, thru: Neutrik powerCON TRUE1
  • DMX data in/out: 5-pin locking XLR

Electrical

  • AC power: 100-240V nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch mode
  • Idle Consumption: 85 W, all effects static, zero light output
  • Half-cycle RMS inrush current at 230 V, 50 Hz: 21.7 A

Typical power and current

  • 120 V, 60 Hz: 6.5A, 778W, PF 0.994
  • 230 V, 50 Hz: 3.15A, 760W, PF 0.967

Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.

Thermal

  • Cooling: Forced air (temperature regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C
  • Minimum ambient temperature (Ta min.): 0° C
  • Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)
  • Total heat dissipation (calculated, +/- 10%): 2660 BTU/hr

Approvals

  • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
  • EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547
  • US safety: UL 1573
  • US EMC: FCC Part 15 Class B
  • Canadian safety: CSA C22.2 No. 166
  • Canadian EMC: ICES-003 Class B, ICES-005 Class B
  • Australia/NZ: RCM
  • Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
