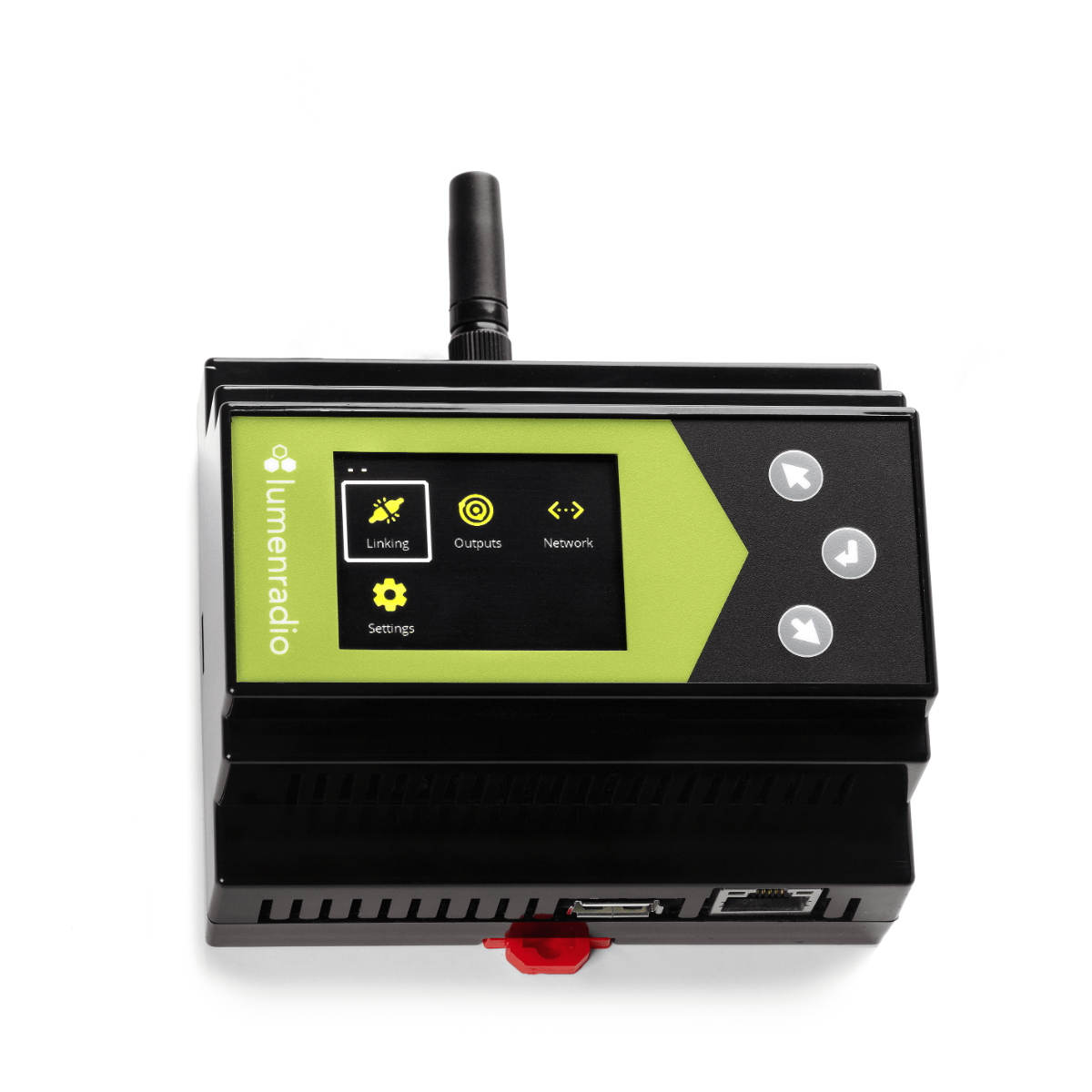

LumenRadio - Galileo MAX
Galileo MAX makes architectural lighting projects easier and cheaper than ever before by providing wireless DMX in a modular, installation-friendly form.
Multiple universe wireless DMX transmitter
Using a specially designed backboard, Galileo MAX can be connected to 3 standard Galileo transmitters to expand control to 4 universes and up to 8 if the fixtures have CRMX2 (to be released during 2024).
Cover large-scale projects
Build a network using one Galileo MAX linked to an unlimited number of receivers – either fixtures from our OEM partners or LumenRadio products
Reliable wireless technology
Based on LumenRadio’s trusted CRMX technology, you get a range and performance which allows your creativity to take center stage.
Remote monitoring
Connect to Galileo MAX remotely and use your browser to create addresses, complete set-up and perform system healthchecks.
Flexible mounting
By using either DIN rail cabinets or certified enclosures (IP65 or better), Galileo MAX is suitable for all indoor and outdoor installations, making it perfect for all types of architectural lighting projects.
Features
- Set up, monitor and check status remotely
- Suitable for all indoor and outdoor installations
- Reliable wireless technology
- Art-Net and streaming ACN support via Ethernet
- DMX512-A and RDM support
- 5ms fixed latency
- 128 bit encryption
- Radio link range covering hundreds of meters
- Quick and easy Bluetooth configuration via CRMX Toolbox app
- Compatible with all CRMX and W-DMX devices
- Power supply: 12-24 VDC +/- 10%
- Max. power consumption: 8.5W
- Self-healing fuse: Yes
- Rated wire size: 0.2 – 1.5mm2, 24-16 AWG
- IP rating: IP X0
- Dimensions (W x H x D): 107 x 93 x 58.7 [mm]
- Weight: 195g
- Antenna connector: RP-SMA
- Operating temp. range: -20 to +55°C
- Storage temp. range: -30 to +80°C
- Humidity: 0–90% non-condensing
- Frequency range: 2402 – 2480MHz (ISM band), 5170 – 5330MHz (ISM band), 5490 – 5590MHz (ISM band)
- Max. RF output power: 100mW (280 mW is US) at 2.4GHz, 50mW at 5GHz
- Supported protocols: Art-Net, Streaming ACN, RDM
- Supported RF protocols: CRMX, CRMX2, W-DMX G3 & G4S
- Ethernet: 10/100 Mbps via RJ45 connector
- PoE: IEEE 802.3af
- USB: Version 2.0 (only for software update)
