LumenRadio - DIN Rail IP67 enclosure kit

LumenRadio - DIN Rail IP67 enclosure kit

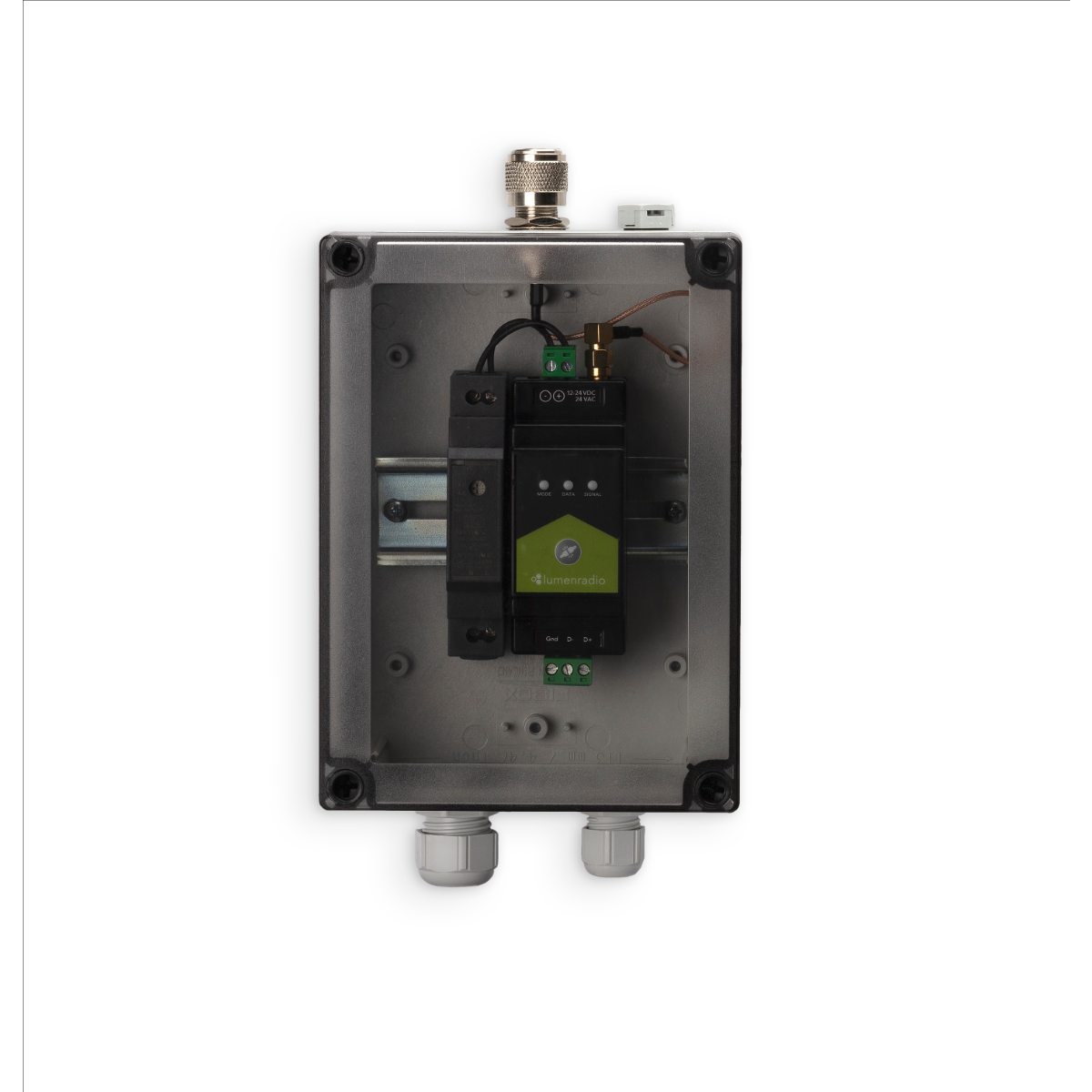

This IP67 enclosure kit is designed to be used with Lumen Radio’s DIN rail mounted products, such as WBACnet DIN rail, W-Modbus DIN rail, and the CRMX Galileo series. It has space for 6 DIN rail module units in width. This means that it can easily fit one of our 2 module wideunits together with a power supply unit, or it can fitone of our 6 module wide gateway units such as Galileo MAX. The enclosure comes with a vent for moisture as wellas cable glands for power and data cables. It also comes with a RF coax cable to connect the DIN rail unit’s antenna port to the N female connector.

Power supply, power cables and data cables are not included.

• Dimensions: 130 x 180 x 77 mm (5.1 x 7.1 x 3.0 in.)
• Dimensions (incl. connectors): 130 x 230 x 77 mm (5.1 x 9.1 x 3.0 in.)
• Number of DIN modules in width: 6
• Antenna connector (outer): N female
• Antenna connector (inner): RP-SMA male
• Impedance RF cable: 50 Ohms
• Cable gland size (M24): 7 – 13 mm (1/4 – 1/2 in.)
• Cable gland size (M24): 4.5 – 10 mm (1/6 – 3/8 in.)
• Material (enclosure): Polycarbonate
• IP rating: IP67
• Impact resistance: IK08
• UV resistance: UL 746C
• Flamability: UL94 V-0
