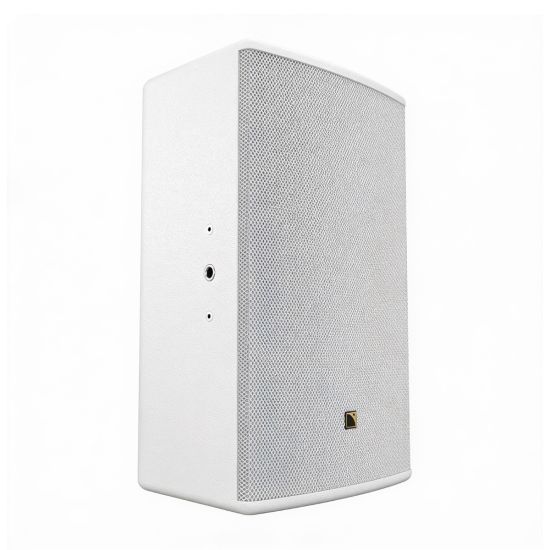

L-Acoustics | X8W - 2-way passive: 8'' LF + 1.5'' HF White
Prijs op aanvraag
Beschikbaarheid:
Op aanvraag
Op aanvraag
Art. code
LA-30.0230
L-Acoustics | X8W - 2-way passive: 8'' LF + 1.5'' HF White
The L-Acoustics X8W is a compact white coaxial loudspeaker designed for high-quality sound in professional fixed installations. Featuring an 8-inch low-frequency driver and a 1-inch high-frequency compression driver, it delivers clear and detailed audio with consistent coverage. Its versatile design makes the X8W suitable for a wide range of installation applications where reliable performance and discreet integration are essenti
Usable bandwidth (-10 dB): 60 Hz – 20 kHz (X8)
Maximum SPL: 129 dB (X8)
Nominal directivity (-6 dB): 100° axisymmetric
Monitor angle: 35°
Transducers: LF: 1 × 8″ cone driver / HF: 1 × 1.5″ diaphragm compression driver, neodymium
Acoustical load: LF: bass-reflex, L-Vents / HF: conical waveguide
Nominal impedance: 8 Ω
Connectors: IN: 1 × 4-point speakON / LINK: 1 × 4-point speakON
Rigging and handling: 1 handle / DIN580-compatible M8 threaded insert / 4 M10 threaded inserts / 1 35 mm pole socket
Dimensions: 250 mm (9.8 in) / 424 mm (16.7 in) / 164 mm (10.4 in)
Weight (net): 12 kg / 26.5 lb
Cabinet: premium grade Baltic beech and birch plywood
Front: Coated steel grill; Acoustically neutral 3D fabric
Finish: dark grey brown Pantone 426 C; pure white RAL 9010; custom RAL code on special order
IP: IP43
Maximum SPL: 129 dB (X8)
Nominal directivity (-6 dB): 100° axisymmetric
Monitor angle: 35°
Transducers: LF: 1 × 8″ cone driver / HF: 1 × 1.5″ diaphragm compression driver, neodymium
Acoustical load: LF: bass-reflex, L-Vents / HF: conical waveguide
Nominal impedance: 8 Ω
Connectors: IN: 1 × 4-point speakON / LINK: 1 × 4-point speakON
Rigging and handling: 1 handle / DIN580-compatible M8 threaded insert / 4 M10 threaded inserts / 1 35 mm pole socket
Dimensions: 250 mm (9.8 in) / 424 mm (16.7 in) / 164 mm (10.4 in)
Weight (net): 12 kg / 26.5 lb
Cabinet: premium grade Baltic beech and birch plywood
Front: Coated steel grill; Acoustically neutral 3D fabric
Finish: dark grey brown Pantone 426 C; pure white RAL 9010; custom RAL code on special order
IP: IP43
| Type | Fullrange |
|---|---|
| Installatie | Nee |
| Kleur | Wit |
| Series | X Series |
| Series | X Series |
| Merk | L-Acoustics |
