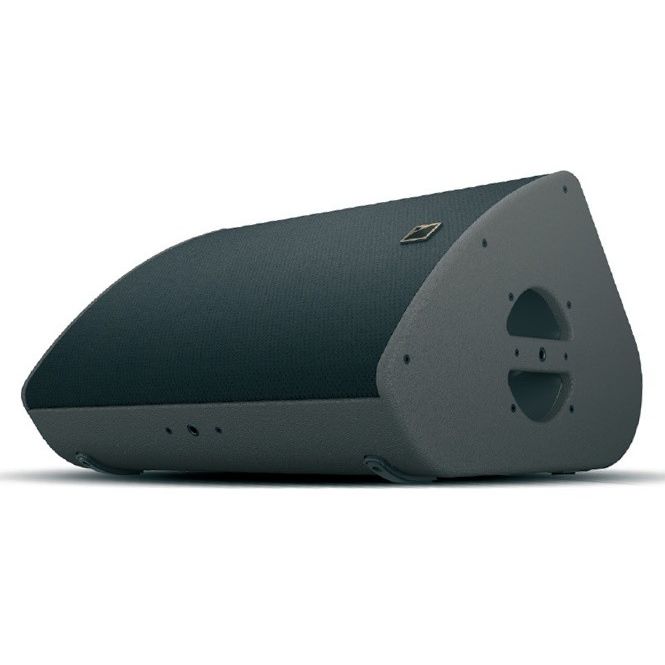

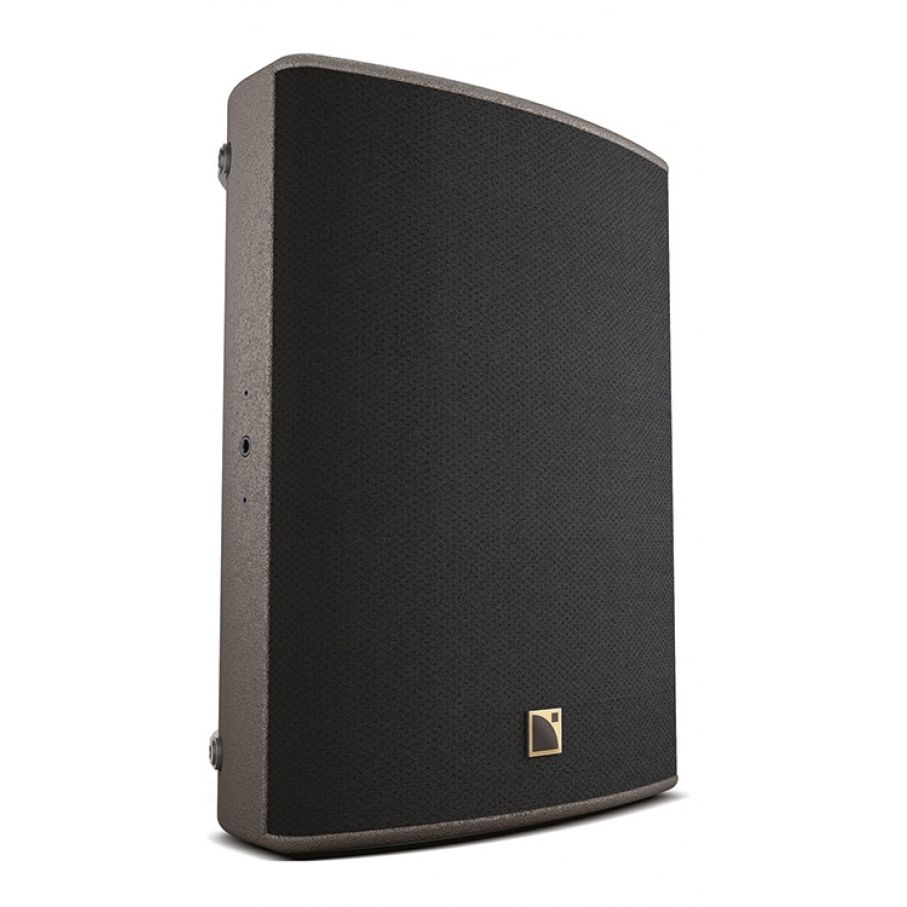

The X15 HiQ features a 3’’ diaphragm compression driver coaxially-loaded by a 15’’ low frequency transducer in a bass-reflex enclosure with laminar vents.

The coaxial transducer arrangement and its ellipsoid waveguide produces a 40° x 60° directivity pattern with a smooth tonal response free of secondary lobes over the entire frequency range. As a result, X15 HiQ boasts an exceptional immunity to feedback in stage monitoring situations.

The X15 HiQ provides a stage monitoring angle setting of 35° with regard to vertical or 55° thanks to its built-in risers. With a cabinet combining the properties of birch and beech plywood, X15 HiQ low weight and elegance makes for an easy integration into the set. Ergonomic handles for a solid grip and efficient handling. For special narrow fill applications, the X15 HiQ can be pole-mounted using the integrated socket or flown and tilted in various orientations using its rigging accessories.

The amplified controllers ensure the advanced crossover functions, time alignment, linearization and L-Drive protection of the transducers.

• Description: Active 2-way coaxial enclosure, controlled and amplified by LA4X / LA8
• Usable bandwidth (-10 dB): 55 Hz - 20 kHz ([X15] preset)
• Maximum SPL: 138 DB([X15] preset)
• Nominal directivity: Vertical: 60°
  Horizontal: 40°
• Monitoring angle: 35° without risers
  55° with risers
• Transducers: LF: 1 x 15" neodymium, bass-reflex, laminar vents
  HF: 1 x 3" neodymium compression driver, ellipsoid waveguide
• Nominal impedance: LF: 8 Ω
  HF: 8 Ω
• Connectors: IN: SpeakON^®
  LINK: SpeakON^®
• Rigging and handling: 2 x handles
  DIN580-compatible M8 threaded insert
  4 x M10 threaded inserts
  2 x 35 mm pole sockets
• Weight (net): 21 kg / 46.2 lbs
• Cabinet: First grade Baltic birch and beech plywood
• Finish: Dark grey brown Pantone^® 426C
  Custom RAL^® code on special order
• IP: IP43
