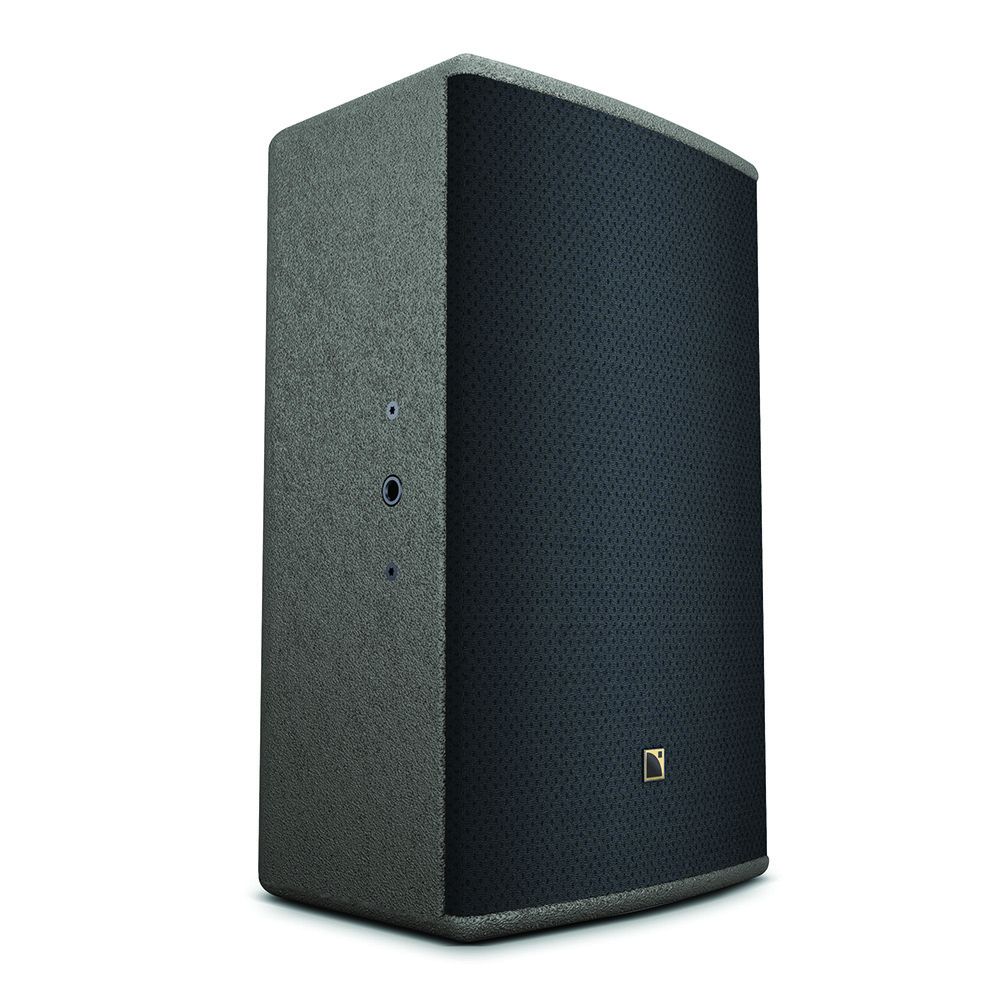

L-Acoustics - X8W

L-Acoustics X8 White

The X8 features a 1.5’’ diaphragm compression driver coaxiallyloaded by an 8’’ low frequency transducer in a bass-reflex enclosure with laminar vents. The internal passive crossover network uses custom filters.

The coaxial transducer arrangement and its partial horn produce a 100° axisymmetric directivity output with a smooth tonal response free of secondary lobes over the entire frequency range.

The X8 design makes it perfectly suited to live monitoring applications. With a cabinet combining the properties of birch and beech plywood, X8 low weight and elegance makes for an easy integration in any situation. It provides an angle setting of 35° with regard to vertical for stage monitoring.

The X8 can be pole-mounted using the integrated socket or flown and tilted in various orientations using its rigging accessories.

The amplified controllers L-Drive parameters ensure the linearization and protection of the transducers.

• Description: Passive 2-way coaxial enclosure, controlled and amplified by LA4X / LA8
• Usable bandwidth (-10 dB): 60 Hz - 20 kHz ([X8] preset)
• Maximum SPL: 129 dB ([X8] preset)
• Nominal directivity: Axisymmetric 100°
• Monitoring angle: 35°
• Transducers: LF: 1 x 8" bass-reflex, laminar vents
  HF: 1 x 1.5" neodymium compression driver
• Nominal impedance: 8 Ω
• Connectors: IN: SpeakON^®
  LINK: SpeakON^®
• Rigging and handling: 1 x handle
  DIN580-compatible M8 threaded insert
  4 x M10 threaded inserts
  35 mm pole socket
• Weight (net): 12 kg / 26.5 lbs
• Cabinet: First grade Baltic birch and beech plywood
• Finish: Dark grey brown Pantone^® 426C
  Pure white RAL^® 9010
  Custom RAL^® code on special order
• IP: IP43
