L-Acoustics | KIVA II - 2-way: 2 x 6.5'' LF + 1.75 HF

L-Acoustics | KIVA II - 2-way: 2 x 6.5'' LF + 1.75 HF

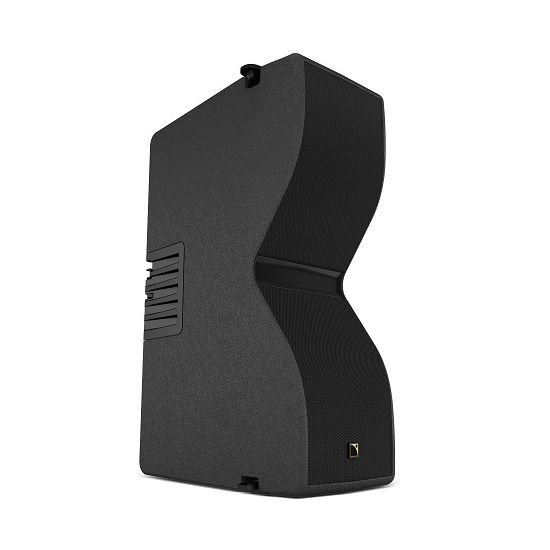

The L-Acoustics KIVA II is a compact 2-way line source element designed for professional sound reinforcement applications. Featuring two 6.5-inch low-frequency drivers and a 1.75-inch diaphragm compression driver, it delivers clear, powerful and consistent sound with controlled directivity. Its compact design and flexible rigging options make the KIVA II ideal for touring, live events and fixed installations where high performance and discreet integration are required.




Usable bandwidth (-10 dB): 70 Hz – 20 kHz (KIVA II)
Maximum SPL: 138 dB (KIVA II) with LA2Xi (bridge mode) / LA4X / LA8 / LA12X; 133 dB (KIVA II) with LA2Xi
Nominal directivity (-6 dB): horizontal: 100° symmetrical / vertical: 15° (single), depending on the number of elements and array curvature
Transducers: LF: 2 × 6.5″ neodymium cone driver / HF: 1 × 1.75″ neodymium diaphragm compression driver
Acoustical load: LF: bass-reflex / HF: DOSC waveguide, L-Fins
Nominal impedance: 16 Ω
Connectors: 2 × 4-point speakON
Rigging and handling: flush-fitting 3-point rigging system; inter-enclosure angles: 0°, 1°, 2°, 3°, 4°, 5°, 7.5°, 10°, 12.5° or 15°; 2 handles
Dimensions: 525 mm (20.5 in) / 202 mm (8 in) / 357 mm (14 in)
Weight (net): 14 kg / 31 lb
Cabinet: composite sandwich structure
Front: composite grill with anti-corrosion coating; acoustically neutral 3D fabric
Rigging components: high grade steel
Finish: dark grey brown Pantone 426 C; pure white RAL 9010; custom RAL code on special order
IP: IP55
