Epson | EV-115

Epson - EV-115 - Digital lighting projector

Add movement and life to retail displays, hospitality events, visitor experiences, galleries, museums, corporate environments or exhibitions, with a low visual noise projector that blends into any environment. The EV-115 brings lighting and projection together, and perfectly combines high design, high image quality and installation flexibility.

Features

• Experiential projection

Create borderless content, lighting effects and blended displays with ease

• Sensor-based content

GPI function for simple sensor-based experiences

• Flexible installation

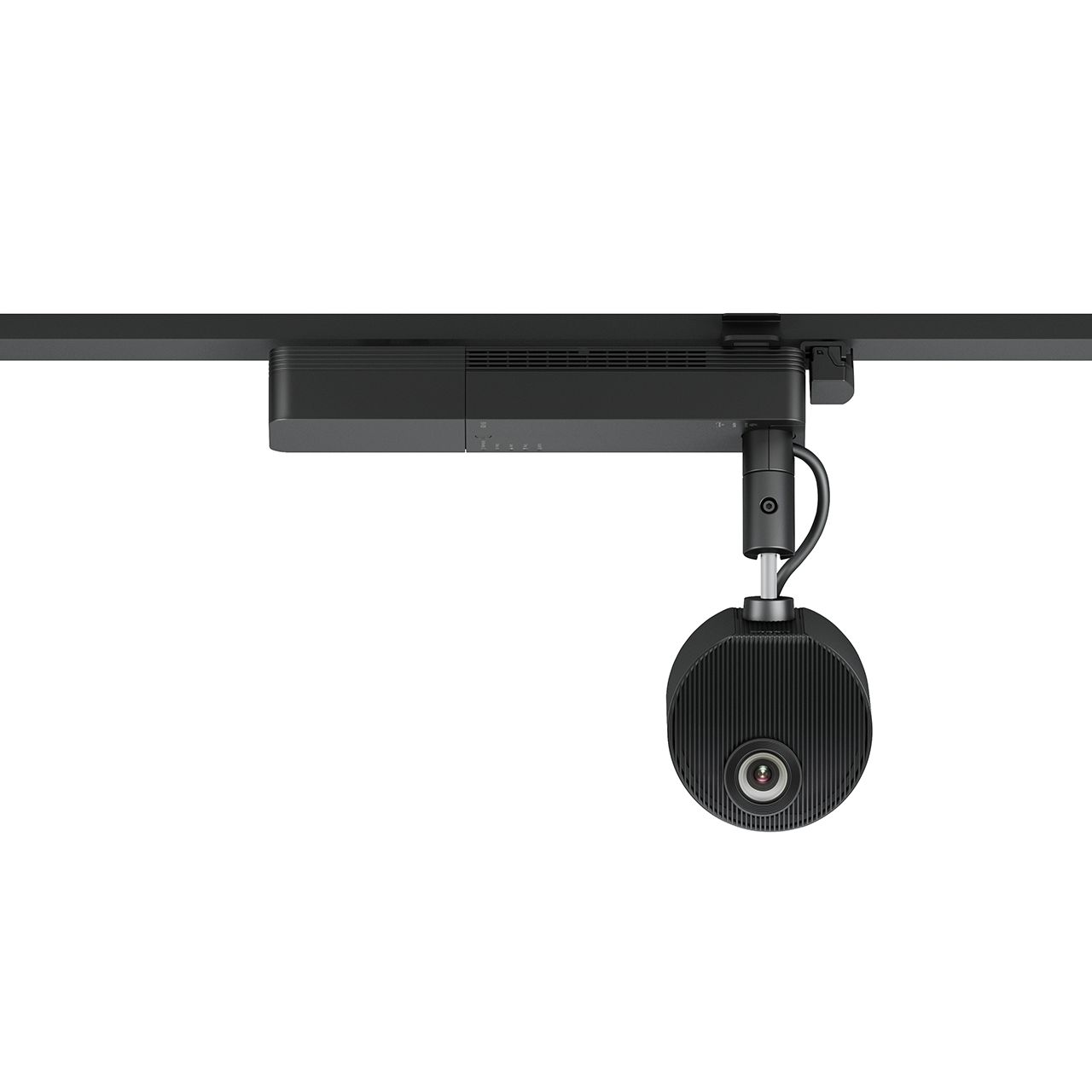

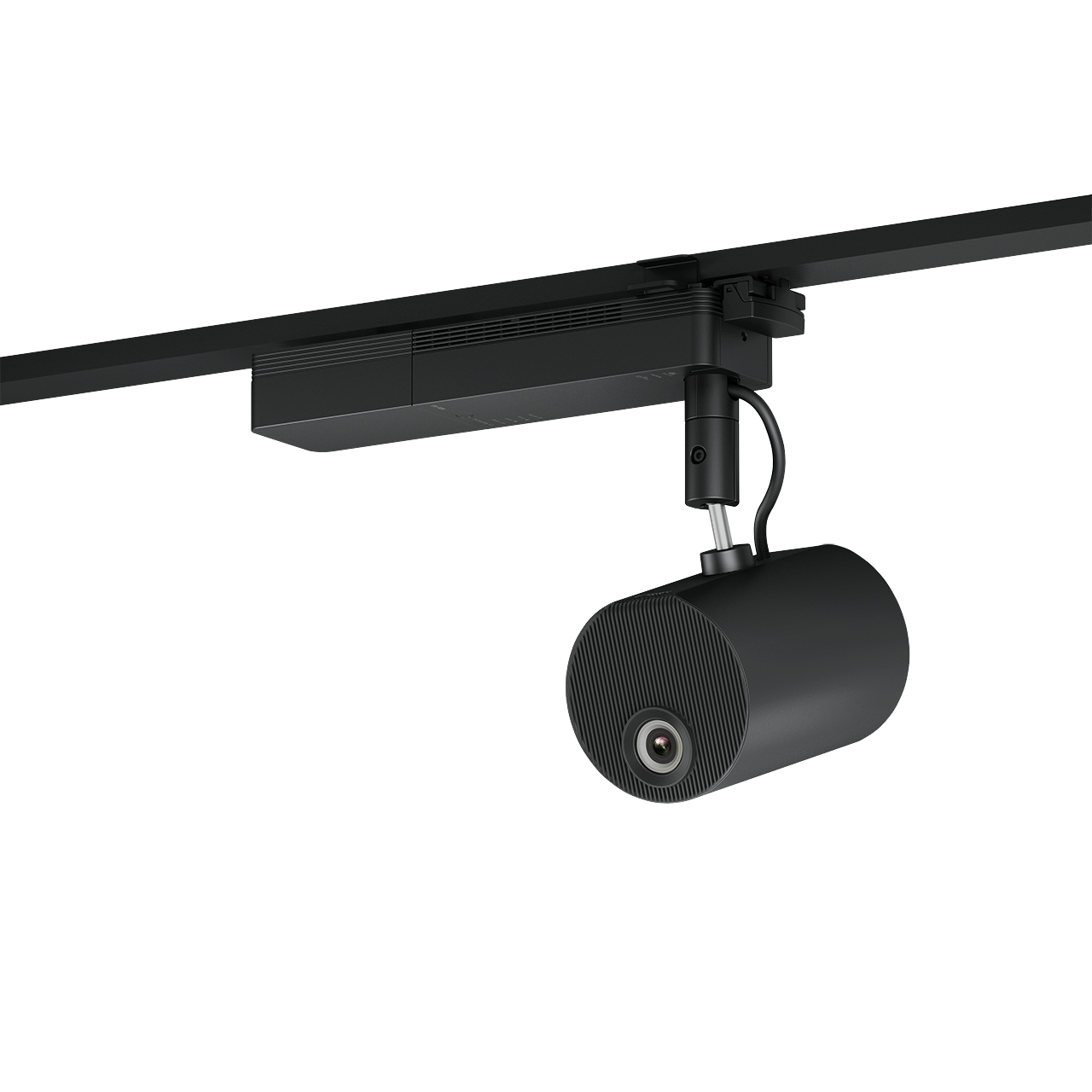

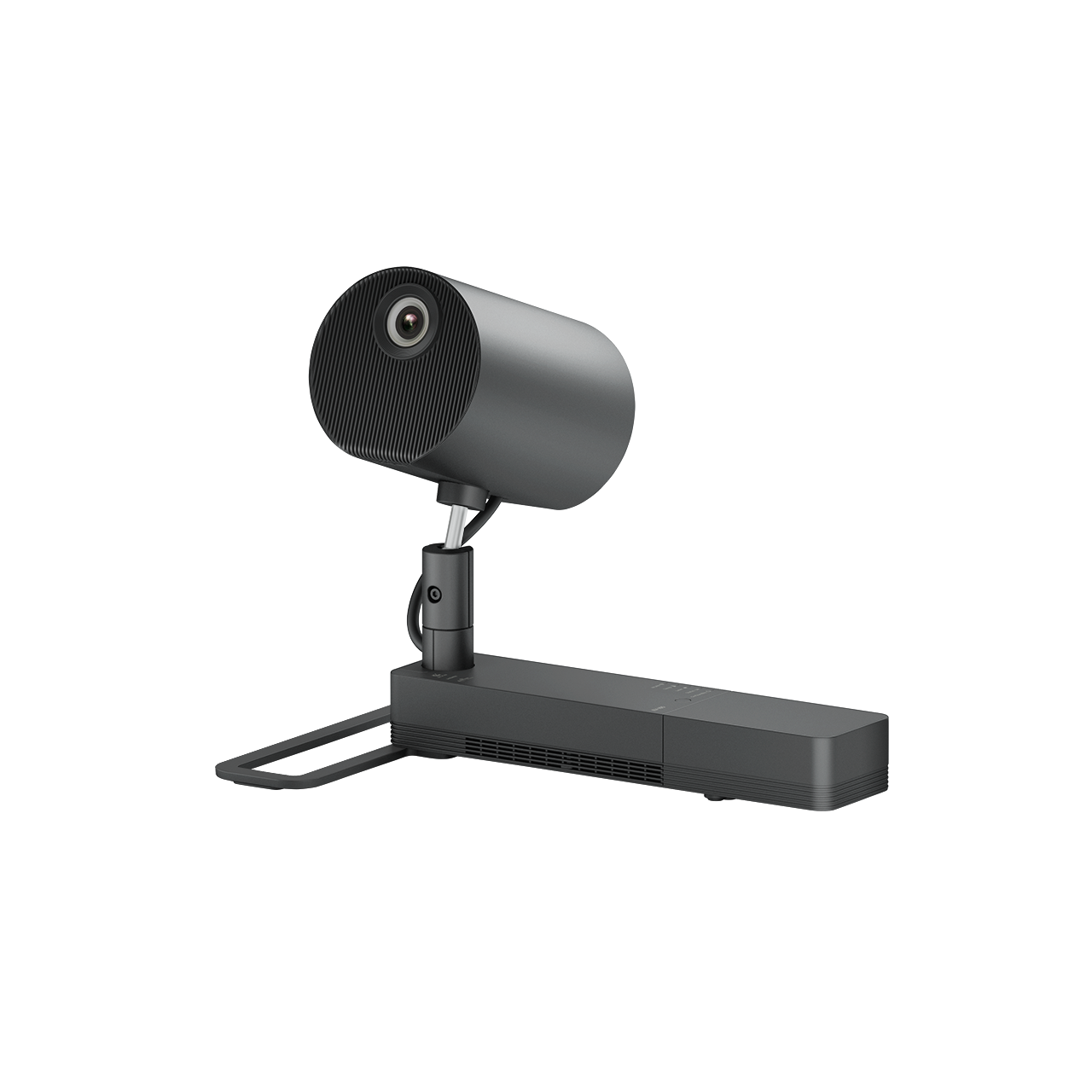

Can be ceiling-mounted, freestanding or attached to a lighting track

• Signage-ready

Built-in media player and simple CMS integration

• Fit and forget reliability

Durable Epson laser technology supported by a five-year warranty

Technology

• Projection System: 3LCD Technology
• LCD Panel: 0,59 inch with C2 Fine


• Color Light Output: 2.200 Lumen- 1.100 Lumen (economy)
• White Light Output: 2.200 Lumen - 1.100 Lumen (economy)
• Resolution: WXGA, 1280 x 800, 16:10
• Aspect Ratio: 16:10
• Contrast Ratio 2.500.000 : 1
• Native Contrast: 2.000 : 1
• Light source: Laser
• Laser Light source: 20.000 hours Durability High, 30.000 hours Durability Eco
• Keystone Correction: Manual vertical: ± 45 °, Manual horizontal ± 40 °
• Colour Reproduction: 16.77 million colours

Optical

• Throw Ratio: 1,38 - 2,19:1
• Zoom: Motorized, Factor: 1 - 1,58
• Lens: Optical
• Screen Size: 30 inches - 150 inches
• Projection Distance Wide: 0,9 m - 4,5 m
• Projection Lens F Number: 1,51 - 1,92
• Projection Lens Focal Length; 18,2 mm - 28,4 mm
• Projection Lens Focus: Motorized

Connectivity

• Interfaces: USB 2.0 Type A, USB 2.0 Type B (Service Only), Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN b/g/n (2.4GHz), HDMI in, Stereo mini jack audio out, SD Card Slot, SD Card playback, Wireless LAN a/n (5GHz)
• Network Protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features

• Security: Wireless LAN security, Password protection
• Other features: A/V mute, Auto Power On, Digital zoom, Edge Blending, Horizontal and vertical keystone correction, Image Shift, Long light source life, Quick Corner, Web Control, Web Remote
• Video Color Modes: Dynamic, Normal
• Projector control: via: Crestron, Crestron Integrated Partner, Crestron RoomView

General

• Power consumption: 149 Watt, 112 Watt (economy), 0,4 Watt (standby)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product dimensions (default position): 530‎ x 470 x 250 mm (Width x Depth x Height)
• Dimensions: Projection Unit: Ø175‎ x 260 mm (Depth)
• Dimensions: Power Supply: 361‎ x 110 x 65 mm (Width x Depth x Height)
• Product weight: 5 kg
• Noise Level: Normal: 34 dB (A) - Economy: 22 dB (A)
• Supported Temperature: Operation 5° C - 40° C, Storage -10° C - 60° C
• Supported Humidity: Operation 20% - 80%, Storage 10% - 90%
• Included Software: Content DIY App, Epson Projector Content Manager
• Options: Floor stand, Lighting track mount
• What's in the box: Cable cover, Direct mount unit, HDMI Cable Clamp, Hexagon wrench, Power cable, Remote control incl. batteries, Safety wire set, User's Manual Set
• Room Type / Application: Projection Mapping, Signage / Retail, Visitor Attraction
• Positioning: Ceiling Mounted, Floor, Lighting Track, Wall Mounted
• Colour: White

Other

• Warranty: 60 months Carry in or 12.000 h
