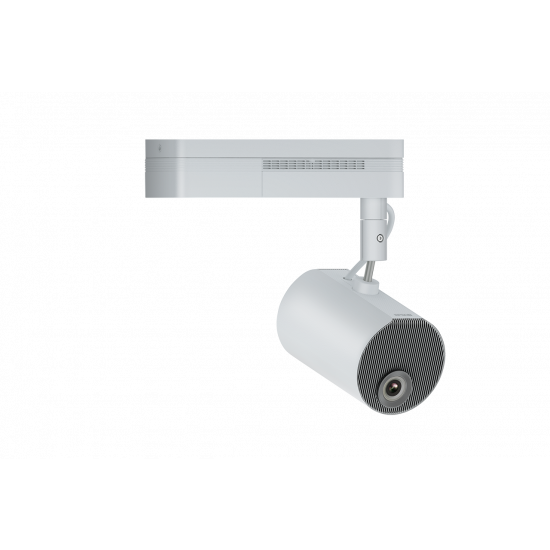

Epson - EV-110 Epson - EV-110 Epson - EV-110 Epson - EV-110
Epson - EV-110

Epson - EV-110

€ 2.008,35 Excl. BTW
Beschikbaarheid:
Op voorraad
Art. code
EP-62.0098

Digital lighting projector


The EV-110 is an innovative and versatile 2,200 lumens laser projection solution for creating experiential displays and digital signage.

  • White digital lighting projector
  • 2,200-lumen WXGA
  • GPI sensor

Add movement and life to retail displays, hospitality events, visitor experiences, galleries, museums, corporate environments or exhibitions, with a low visual noise projector that blends into any environment. The EV-110 brings lighting and projection together, and perfectly combines high design, high image quality and installation flexibility.

Overview
Minimalist design - maximum impact
The LightScene EV-110 allows users to unlock their creativity and project instantly appealing visuals, with sharp WXGA resolution and 2,200 lumens brightness. Thanks to its discreet design, it can be used where a traditional projector may stand out. A black version is also available.

Simple, flexible implementation
A lightweight, adaptable design means the EV-110 can be installed in a variety of ways, from a traditional ceiling mount to a freestanding floor mount, or attached to a lighting track, including recessed lighting tracks.

Signage-ready
Featuring a built-in media player with wireless content upload, allowing playlists to be loaded onto an SD card and played directly from the projector1. The EV-110 also features HDMI connectivity for simple integration into content management systems without specialist installation.

Advanced installations made easy
The GPI function supports direct sensor connectivity for creating dynamic experiences that can adapt to situational changes without the need for costly external hardware. The EV-110 also uses advanced techniques such as edge blending to achieve stunning results in larger spaces that require multiple unit installations.

Fit and forget reliability
A five-year warranty, combined with Epson's reliable laser light source technology and sealed optical engine, means that the EV-110 does not require regular maintenance.

Key Features

  • Experiential projection
  • Create borderless content, lighting effects and blended displays with ease
  • Sensor-based content
  • GPI function for simple sensor-based experiences
  • Flexible installation
  • Can be ceiling-mounted, freestanding or attached to a lighting track
  • Signage-ready
  • Built-in media player and simple CMS integration
  • Fit and forget reliability
  • Durable Epson laser technology supported by a five-year warranty

Technology

  • Projection System: 3LCD Technology
  • LCD Panel: 0,59 inch with C2 Fine


  • Color Light Output: 2.200 Lumen- 1.100 Lumen (economy)
  • White Light Output 2.200 Lumen - 1.100 Lumen (economy)
  • Resolution: WXGA, 1280 x 800, 16:10
  • Aspect Ratio: 16:10
  • Contrast Ratio: 2.500.000 : 1
  • Native Contrast: 2.000 : 1
  • Light source: Laser
  • Laser Light source: 20.000 hours Durability High, 30.000 hours Durability Eco
  • Keystone Correction: Manual vertical: ± 45 °, Manual horizontal ± 40 °
  • Colour Reproduction: 16.77 million colours

Optical

  • Throw Ratio: 1,38 - 2,19:1
  • Zoom: Motorized, Factor: 1 - 1,58
  • Lens: Optical
  • Screen Size: 30 inches - 150 inches
  • Projection Distance Wide: 0,9 m - 4,5 m
  • Projection Lens F Number: 1,51 - 1,92
  • Projection Lens Focal Length: 18,2 mm - 28,4 mm
  • Projection Lens Focus: Motorized

Connectivity

  • Interfaces: USB 2.0 Type A, USB 2.0 Type B (Service Only), Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN b/g/n (2.4GHz), HDMI in, Stereo mini jack audio out, SD Card Slot, SD Card playback, Wireless LAN a/n (5GHz)
  • Network Protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features

  • Security: Wireless LAN security, Password protection
  • Other features: A/V mute, Auto Power On, Digital zoom, Edge Blending, Horizontal and vertical keystone correction, Image Shift, Long light source life, Quick Corner, Web Control, Web Remote
  • Video Color Modes: Dynamic, Normal
  • Projector control: via: Crestron, Crestron Integrated Partner, Crestron RoomView

General

  • Power consumption: 149 Watt, 112 Watt (economy), 0,4 Watt (standby)
  • Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
  • Product dimensions (default position): 530‎ x 470 x 250 mm (Width x Depth x Height)
  • Dimensions: Projection Unit: Ø175‎ x 260 mm (Depth)
  • Dimensions: Power Supply: 361‎ x 110 x 65 mm (Width x Depth x Height)
  • Product weight: 5 kg
  • Noise Level: Normal: 34 dB (A) - Economy: 22 dB (A)
  • Supported Temperature: Operation 5° C - 40° C, Storage -10° C - 60° C
  • Supported Humidity: Operation 20% - 80%, Storage 10% - 90%
  • Included Software: Content DIY App, Epson Projector Content Manager
  • Options: Floor stand, Lighting track mount
  • What's in the box: Cable cover, Direct mount unit, HDMI Cable Clamp, Hexagon wrench, Power cable, Remote control incl. batteries, Safety wire set, User's Manual Set
  • Room Type / Application: Projection Mapping, Signage / Retail, Visitor Attraction
  • Positioning: Ceiling Mounted, Floor, Lighting Track, Wall Mounted
  • Colour: White

Other

  • Warranty: 60 months Carry in or 12.000 h
Meer informatie
Conditie Nieuw
Merk Epson
EAN 8715946689326
