Shure - QLXD4 Shure - QLXD4
Shure - QLXD4

Shure - QLXD4

Starting at

€749.00 Excl. Tax

Availability:
View options
Art. code
SU-37.QLXD4
Grouped product items
Product Name Qty
Shure | QLXD4E - K51 (606-670 MHz) - Wireless Receiver

Availability:
In stock

€749.00 Excl. Tax
Shure | QLXD4E - G51 (470-534 MHz) - Wireless Receiver

Availability:
In stock

€749.00 Excl. Tax
Shure | QLXD4E - H51 (534-598 MHz) - Wireless Receiver

Availability:
In stock

€749.00 Excl. Tax

Shure - QLXD4

In the box: PS24 Power supply, 2 1/2 Wave Antenna, 2 BNC Cable, 2 BNC Bulkhead Adapter, Rackmount Kit, Rackmount Bracket-Long, Rackmount Bracket-Short, Link plate & 4 Receiver Rubber Feet.

Digital wireless receiver combines professional features with streamlined set-up and operation. Features include Automatic Channel scan, Networked Channel Scan, digital predictive switching, and AES 256 encryption for security.

  • Automatic Channel Scan quickly finds clear frequencies; Networked Channel Scan then shares open frequencies between multiple receivers over Ethernet, with one touch syncing
  • Digital Predictive Switching Diversity ensures a stable RF connection
  • Highly efficient RF spectrum usage – up to 22 transmitters per 8 MHz channel
  • Secure AES 256 bit encryption of all wireless transmissions
  • Shure Wireless Workbench® software allows remote control from PC or Mac
  • ShurePlus™ Channels mobile app allows remote control from iOS devices
  • Half rack format with detachable ½ wave antennas
  • Up to 60 dB of adjustable audio gain
  • Up to 72 MHz tuning bandwidth (region dependent)
  • More than 60 pre set compatible channels per frequency band (region dependent)

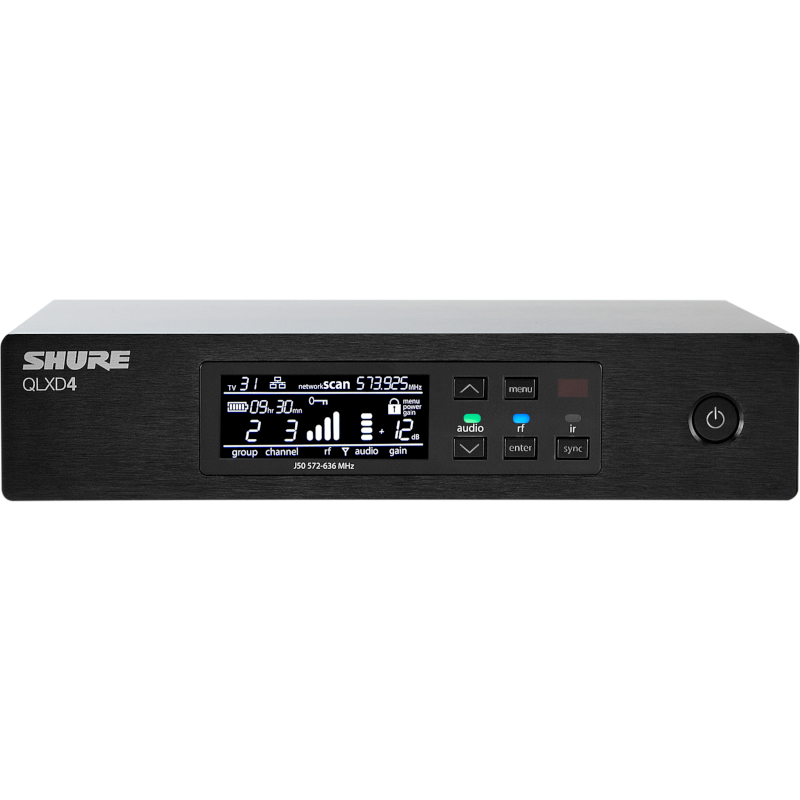

  • High contrast LCD menu and controls with lockout feature, plus Audio and RF LED meters with peak indicator

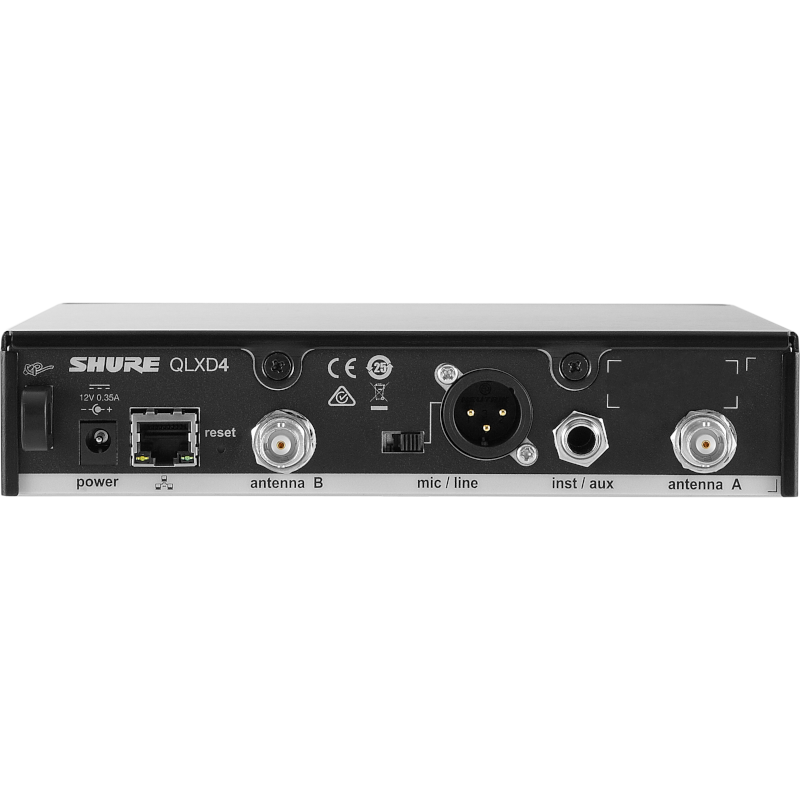

  • Mic / line switchable XLR output, and 6.3 mm instrument output
  • Durable aluminium construction with brushed finish

Product series: QLX-D
Usage Environments: Theater Stage
Optional Accessories: UA221
Bias Via BNC: no
Dante Audio Network Interface: no
Network Ability: DHCP, link-local, static
Antenna Cascade: no
Line Mic Switch: yes
Image Rejection: 70
Phantom Power Protection: yes
Media Control System Connection: no
Receiver Types: single
Weight: 777 g
Width: 197 mm
Height: 41 mm
Depth: 151 mm
Component: wireless_receiver
Color: black
Logic output: false
Frequency band: G51(470-534mhz), H51 (534-598 MHz) or K51 (606-670 MHz)
Included power supply: EU
On/Off switch: true
Mute switch: false
Status indicator: LED
Connector: 3 Pin XLR
