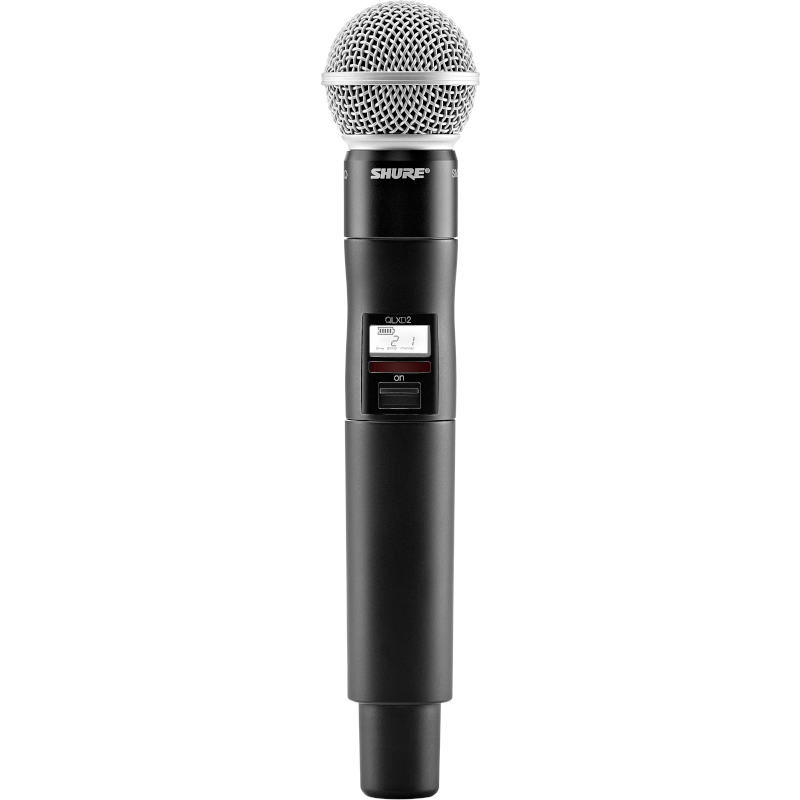

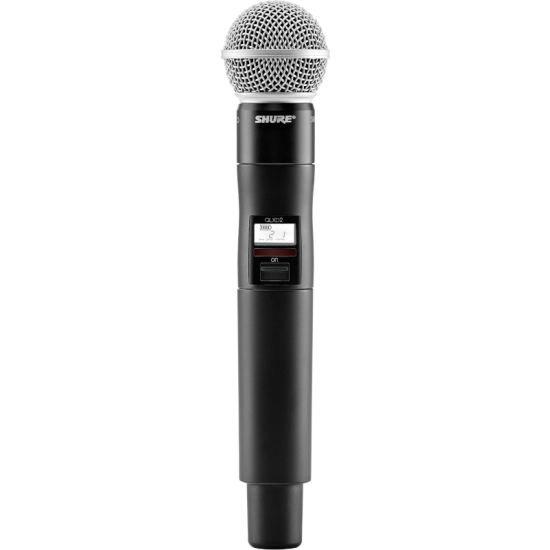

Shure | QLXD2/SM58

Shure | QLXD2/SM58

Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD2 handheld transmitter is ideal for wireless vocals in presentation spaces, music venues, and houses of worship. Easy to use, the QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.

• 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
• Interchangeable Shure microphone capsules, including the legendary SM58®
• AES 256-bit encryption for secure transmission
• Over 120 dB of dynamic range – no transmitter gain adjustment needed
• 1, 10 mW selectable RF output power
• Up to 9 hours continuous use with 2 x AA alkaline batteries
• Optional Shure lithium ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
• External charging contacts for docked charging
• Backlit LCD with easy to navigate menu and controls
• Selectable display mode showing group/channel, frequency, or battery runtime
• 100 meter (330 ft.) line-of-sight operating range
• Rugged metal construction
• Frequency and power lockout

• Product series: QLX-D
• Usage environments: Theater Stage
• Optional accessories: RPW118
• Battery life (Lithium): Up to 10 h
• Battery life (Alkaline): Up to 9 h
• Battery life note: Frequency band and power output dependent
• Charger options: Docking Charger
• Audio mute: Yes
• Detachable antennas: No
• Switchable RF power: Yes
• Frequency diversity: No
• High density mode: No
• Interchangeable handheld capsule: Interchangeable
• Form factor: Handheld
• Operating range: N/A
• Encryption: Yes, AES-256
• Transmission: Digital in VHF, UHF, 900 MHz ISM, 1.5 GHz, 1.8 GHz
• Frequency band: G51 (470–534 MHz), H51 (534-598 MHz) or K51 (606-670 MHz)
• Component: Wireless transmitter
• Color: Black
• Logic output: False
• On/Off switch: Yes
• Mute switch: No
• Status indicator: LED
• Weight: 347 g
• Width: 51 mm
• Height: 256 mm
• Depth: 51 mm
