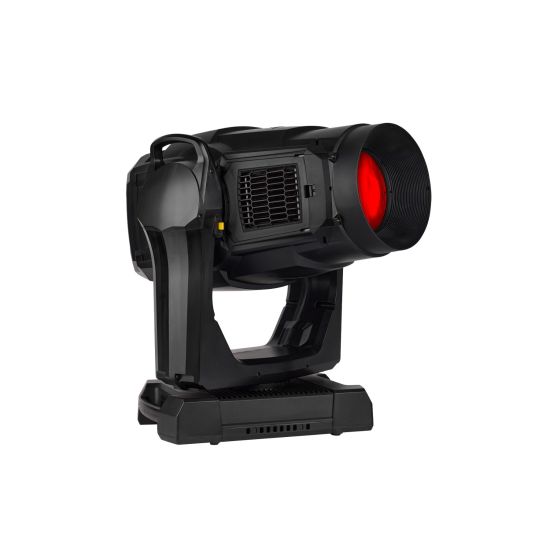

Martin | MAC Encore Two (in EPS)

Martin | MAC Encore Two (in EPS)

Physical

• Width (across yoke): 479 mm (18.9 in.)
• Width (base): 429 mm (16.9 in.)
• Height (head straight up): 758 mm (29.8 in.)
• Height (maximum): 776 mm (30.6 in.)
• Length (head): 596 mm (23.5 in.)
• Depth (base): 275 mm (10.8 in.)
• Minimum center-to-center distance in side-by-side installation: 720 mm (28 in.)
• Weight: 36.8 kg (81.1 lbs.)

Dynamic Effects

• Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
• Dimming options: Choice of four dimming curves
• Color Mixing: CMY, independently variable 0 - 100%
• Physical Color Temperature Control: Variable 5,600 – 2,600 K
• Virtual Color Temperature Control: Variable 2,000 – 12,850 K
• Virtual Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
• Color Wheel: 5 dichroic filters (incl. Spectral Enhancement Filter) + open, indexing, shake, continuous wheel rotation & random color
• Rotating Gobo Wheel: 7 interchangeable gobos + open, indexing, shake, continuous rotation, continuous wheel rotation & random gobo
• Static Gobo Wheel: 11 gobos + open, indexing, shake, continuous wheel rotation & random gobo
• Gobo Color Temperature Correction: Automatic
• Animation Wheel: Interchangeable animation wheel, indexing, shake, bounce, continuous rotation & variable wheel insertion angle
• Light Frost: Variable 0 - 100%
• Heavy Frost: Variable 0 - 100%
• Prism: 4 Facet, indexing, shake & continuous rotation
• Iris: Variable 0 - 100%, opening and closing pulse effects
• Zoom: Motorized with 1:10 zoom ratio
• Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity, including focus tracking
• Framing: Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 - 100%
• Pan: Motorized 540°
• Tilt: Motorized 268°
• P3 Mix: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control
• PixelMapping: Individual control of each of the 6 LED Segments
• Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
• LED Frequency control: Variable LED PWM control

Control and Programming

• Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3 (additional protocols, incl. wireless, available via Universal Connect Module)
• Protocol Detection: Automatic
• DMX Modes: Basic, Extended & Ludicrous
• DMX Channels: 52, 62 & 68
• Multi-Universe Overflow: Yes, in all DMX Modes
• 16-bit Controllable Parameters: Dimming, Color Mixing, CTO, Gobo Indexing and Rotation, Animation Wheel Indexing and Rotation, Prism Indexing and Rotation, Iris, Zoom, Focus, Framing Insertion and Angle, Framing Rotation, Pan and Tilt
• Setting and Addressing: Display Menu, NFC, RDM, RDM over Art-Net or Martin P3
• Local User Interface: Backlit LCD Display with battery-powered operation and integrated NFC antenna
• Fixture identification: User-settable ID number
• DMX Compliance: USITT DMX512-A
• RDM Compliance: ANSI/ESTA E1.20
• Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
• sACN Compliance: ANSI E1.31 - 2018
• Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
• DMX/RDM Transceiver: Galvanic-isolated RS-485
• DMX/RDM Daisy-Chain Limit: 32 fixtures
• Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
• Ethernet Daisy-Chain Limit Recommendation: 50 fixtures
• Firmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller

Optics

• Front Lens Diameter: 150 mm (5.9 in.)
• Zoom Range: 1:10
• Full Zoom Range at Tenth Peak (Field Angle): 5.7° - 54.0°
• Light Source: 55 x 18 W High Light Quality White LED in a custom Martin engine
• Max. Total LED Engine Power: 760 W
• Minimum LED lifetime: > 50.000 hours (to > 80% luminous output) / > 20.000 hours (to > 90% luminous output)*
• *Figure obtained under manufacturer's test conditions

Photometric Data

• Light Engine Luminous Output: 57,000 lumens
• Without Spectral Enhancement Filter
• Fixture Luminous Output Wide: 21,000 lumens
• Peak Luminous Intensity Narrow: 2,000,000 cd
• CCT: 5,600 K (+/- 300 K)
• CRI (Color Rendering Index): 90 (+/- 3)
• CQS (Color Quality Scale): TBC
• TM-30 Rf (IES TM-30-15 Fidelity Index): 90 (+/- 3)
• TM-30 Rg (IES TM-30-15 Gamut Index): 100 (+/- 3)
• TLCI (Television Lighting Consistency Index): 90 (+/- 3)
• With Spectral Enhancement Filter
• Fixture Luminous Output Wide: 13,600 lumens
• Peak Luminous Intensity Narrow: 1,300,000 cd
• CCT: TBC
• CRI (Color Rendering Index): 95 (+/- 3)
• CQS (Color Quality Scale): TBC
• TM-30 Rf (IES TM-30-15 Fidelity Index): 95 (+/- 3)
• TM-30 Rg (IES TM-30-15 Gamut Index): TBC
• TLCI (Television Lighting Consistency Index): 95 (+/- 3)
• LED Refresh Rate: 2,400 Hz with fine adjustment (+/- 2%) and Hybrid mode (DMX controllable)
• Binning: Tight color and flux binning
• Calibration: Full Gamut Color Calibration
• Color Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode
• * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
• * All Photometric Data measured at 5,600 K white

Construction

• Housing: High-impact flame-retardant thermoplastic
• Color: Black
• Protection rating: IP20

Gobos

• Maximum image diameter: 22 mm (0.866 in.)
• External diameter: 27.1 mm +0 / -0.2 mm (1.067 in. +/ - in.)
• Maximum gobo thickness: 1.1 mm (0.04 in.)
• Coating: Heavy matted aluminum
• Material: Borofloat 33

Installation

• Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
• Location: Dry location only, must be fastened to surface or structure
• Orientation: Any
• Minimum distance to combustible materials: 0.2 m (8 in.)
• Minimum distance to illuminated surfaces: 3.25 m (10.7 ft.)

Connections

• AC mains power in/thru: Neutrik Rean powerCON TRUE1
• DMX and RDM data in/thru: Neutrik 5-pin locking XLR
• Ethernet (Art-Net, sACN and Martin P3) in/thru, including fail-safe bypass: Neutrik etherCON
• Firmware from flash memory: USB 2.0 type C port
• Accessory Plug-In: Universal Connect Module Slot

Electrical

• AC power: 100-240 V AC nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch mode
• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17 A
• Typical earth-leakage current: 0.7 mA
• Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V , 0.98 @ 240 V
• Max current draw: 11.0 A @ 100 V / 120 V , 5.2 A @ 208 V , 4.6 A @ 230 V / 240 V
• Typical current draw: 9.5 A @ 100 V , 7.8 A @ 120 V , 4.4 A @ 208 V , 4.0 A @ 230 V , 3.9 A @ 240 V *

Power Consumption

• Maximum: 1040 W
• Typical: 945 W *
• Idle: 68 W *
• Hibernation: 6 W *
• * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
• Typical: full output white, no effects moving, regulated fan speed.
• Idle: no output, no effects moving, regulated fan speed.
• Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

Thermal

• Cooling: Forced air (temperature regulated, low noise, user-definable levels)
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): 5° C (41° F)
• Maximum surface temperature, steady state, at 40° C ambient: 80° C (176° F)
• Total heat dissipation (calculated, +/- 10%): 3550 BTU/hr.

Acoustic Data

• Sound Pressure Level (LpA) @ 1 m (regulated high fan mode, full output): 36.2 dB(A)
• Sound Pressure Level (LpA) @ 1 m (regulated medium fan mode): 31.7 dB(A)
• Sound Pressure Level (LpA) @ 1 m (regulated low fan mode): 27.6 dB(A)
• Sound Pressure Level (LpA) @ 1 m (regulated ultra-low fan mode): 27.2 dB(A)

Warranty

• Fixture: 2 years
• Light Engine: 5 years

Environmental

• RoHS: Compliant
• REACH: Compliant
• WEEE: Compliant
• Proposition 65: Compliant
• Packaging: FSC Certified cardboard outer packaging & Recycled EPS inner packaging
• Efficacy (max output): 22.2 lm/w
• LWR*: 580 lm/kg (262 lm/lbs.)
• * LWR = Lumen-to-Weight Ratio

Approvals

• Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
• EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
• EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
• US safety: UL 1573
• US EMC: FCC Part 15 Class B
• Canadian safety: CSA C22.2 No. 166
• Canadian EMC: ICES-003 Class B, ICES-005 Class B
• Australia/NZ: RCM
• United Kingdom: UKCA
• Thailand: TIS

Included Items

• Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
• Multi-langugage Safety and Installation Manual

Related Items

• Martin Companion Cable (for firmware update over DMX): P/N 91616091
• Martin Companion Software (for firmware update over DMX/Ethernet and fixture setup/configuration via NFC): Free download from www.martin.com, app store and play store

Accessories

• Optical - MAC Viper XIP / Encore Two Hotspot Filter (Gobo Replacement): P/N MAR-91614065HU

Transport and Storage

• Flightcase for 1 x MAC Viper XIP / MAC Encore Two: P/N MAR-91515060
• Flightcase for 2 x MAC Viper XIP / MAC Encore Two: P/N MAR-91515061
• Additional SiP Foam Flightcase Insert for MAC Encore Two: MAR-91611866HU

Consumables

• Air filter, MAC Quantum / Ultra / Viper XIP / Encore Two, set of 12: P/N 50400765
• CR123A 3-volt lithium battery: P/N 05801011

Power Input Cables

• Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
• Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173

Power Linking Cables

• Power relay cable, H07RN-F, 2.5 mm2, TRU
