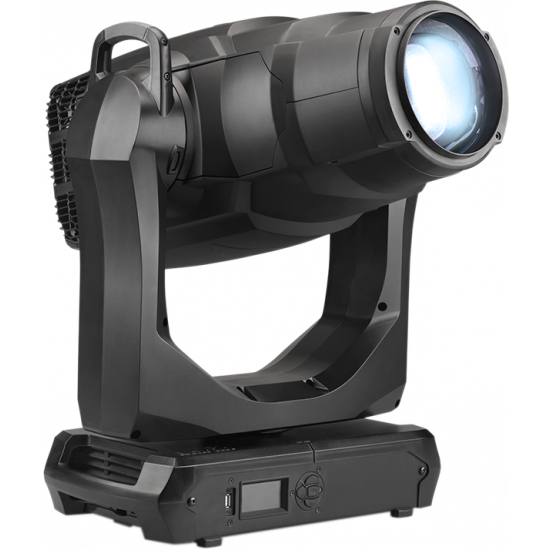

Martin - MAC Encore Performance CLD

MAC Encore™ Performance CLD integrates cutting-edge LED technology with a proprietary and innovative light engine carefully engineered to generate pristine, full spectrum light with ultra-high color rendition. The feature-packed moving head offers unparalleled 6000 K crisp, neutral daylight. Its advanced color mixing system delivers the full palette from smooth and subtle pastels to rich and vibrant saturated colors. Moreover, it offers a fully variable color correction to tungsten/orange.

  • Unparalleled 6000 K cold white light quality
  • Super silent cooling and effects operation
  • Best-in-class size/weight/performance ratio

NEW LED TECHNOLOGY
Designed for real life applications, its pure white 6000 K CCT offers the most comprehensive spectrum available to date in a soft edge LED moving head. High CRI, TM-30 and R9 values, ensure that skin tones, costumes, set pieces, and more will render their true colors naturally. Carefully chosen LED refresh rates ensure flicker-free operation in camera applications.

WHISPER-SILENT
This is the most silent, soft edge moving head we've ever built. All motorized effect operations—cooling fans, barndoors, iris, zoom, pan and tilt—are engineered for applications where strict noise levels are a necessity. Even while running at maximum operation mode, MAC Encore Wash WRM is still a stealth operator.

COLOR PALETTE
Precise color temperature control with variable color temperature correction (CTB) that stays true to the black body curve without green or magenta shifts. Accurate control and smooth adjustment options to match the color temperature of other light sources on the set or stage. Vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries.

OPTICS
A diffused wash field optical system with no color temperature variation while zooming or dimming ensures even light and color temperature distribution across the beam from high to low intensity for perfect control. Its Fresnel lens offers Gaussian diffusion and its ultra-fast, precise, and super silent 1:4 zoom allows for both high and low ceiling usage that spans from tight beams to wide coverage. A PC lens with 1:5 zoom ratio for tighter beam and longer throw is available as an optional accessory.

DYNAMIC EFFECTS
Five rotating glass gobos offer designers a great choice of patterns for projection and mid-air effects and the patented Animotion™ FX system adds 3D effect options. Slim focal separation enables you to run gobos simultaneously with animation wheel and framing, while its precise and tight iris allows you to define crisp and sharp beams.

STURDY, LIGHTWEIGHT DESIGN

With its best-in-class compact design and premium build-quality, MAC Encore Wash WRM lives up to Martin's tour-proven standards. Its slick form factor offers the highest lumen per kg/lb ratio of its class. Combined, you get the lightest and finest fixture on the market (28.5 kg/62.9 lbs.)

Physical

  • Length: 452 mm (17.8 in.)
  • Width: 480 mm (18.9 in.) across yoke
  • Height: 740 mm (29.2 in.) maximum 731 mm (28.8 in.) head straight up
  • Weight: 31 kg (68.4 lbs.)
  • Minimum center-to-center distance in side-by-side installation: 700 mm (27.6 in.)

Dynamic Effects

  • Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
  • Color mixing: CMY, independently variable 0 - 100%
  • Color temperature control: Variable 6000 - 2700 K
  • Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
  • Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable speed and direction
  • Rotating gobo wheel: 5 x interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake
  • Framing: Rotatable framing module, +/- 55°, 4 x individually controllable blades with variable angle and position
  • Iris: Variable 0 - 100%
  • Frost: Variable 0 - 100%
  • Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
  • Dimming options: Choice of four dimming curves
  • Zoom: Motorized
  • Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
  • Pan: 540°
  • Tilt: 268°
  • Position correction system: Absolute position monitoring

Control and Programming

  • 16-bit control: Dimming, rotating gobos, zoom, focus, pan and tilt
  • Movement control options: Tracking and vector
  • Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
  • DMX channels: 38
  • Fixture Identification: User-settable ID number
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • Transceiver: Opto-isolated RS-485
  • Fixture software update: USB memory device or over DMX link

Optics

  • Zoom range: 12° - 48° one-tenth peak (1:4)
  • Light source: 6000 K white LEDs
  • CRI (Color Rendering Index): >90
  • Total LED engine power: 468 W
  • Minimum LED lifetime: 50,000 hours (to >80% luminous output)*
  • *Figure obtained under manufacturer's test conditions

Photometric Data

  • Light engine luminous output: ≥ 31,500 lumens
  • Fixture luminous output: 9200 lumens
  • CQS (Color Quality Scale): >90
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >90
  • TM-30 Rg (IES TM-30-15 Gamut Index): >98
  • TLCI (Television Lighting Consistency Index): >90

Construction

  • Housing: High-impact flame-retardant thermoplastic
  • Color: Black
  • Protection rating: IP20

Installation

  • Mounting points: 4 pairs of 1/4-turn locks
  • Location: Dry location only, must be fastened to surface or structure
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (8 in.)
  • Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)

Connections

  • AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
  • DMX and RDM data in/out: 5-pin locking XLR

Electrical

  • AC power: 120-240 V nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch-mode
  • Power Consumption: 64 W, all effects static, zero light output
  • Half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
