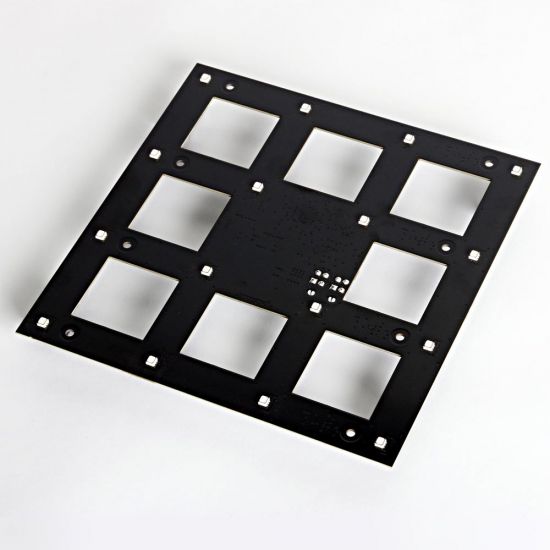

Martin - VC-Grid 4x4 60 RGB

The VC-Grid 60 is an ultra-light-weight LED video module with a 60 mm pixel pitch. Useful in creating customized LED video solutions with maximum artistic flexibility and a minimum of effort, the VC-Grid’s compact size makes it extremely suitable for integration into stage designs, set elements, creative ceilings, lobbies and much more. Used with or without a front diffuser, multiple VC-Grids can be combined in a countless variety of ways for ultimate design freedom. A combined power/data cable allows VC-Grids to be daisy-chained for easy setup and less cabling.

Features

• Wide range of pixel pitches to suit every application
• Easy cabling, mapping and configuration
• Bright and fully calibrated for optimal consistency

Physical

• VC-Grid 4x4 60™:

  • Length: 240 mm (9.5 in.) *
  • Width: 240 mm (9.5 in.) *
  • Height: 15 mm (0.6 in.)
  • Weight: 123 g (0.3 lbs.)*Including 40 mm (1.6 in.) board-to-board gap

Control and Programming

• Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
• Control options: Martin P3™ System Controller (via Martin P3 PowerPort™) or DMX
• Protocol detection: Automatic
• Setting and addressing: Martin P3™ System Controller or RDM-compliant controller
• Color and intensity calibration: Pixel-level
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• Firmware update: Via Martin P3™ System Controller
• Control modes, direct DMX control: Module and Pixel
• DMX channels, direct DMX control: 3/48/192
• Control modes, DMX via P3: P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap
• DMX channels, DMX via P3: Wide range of options from 1 to 195

Control/User Interface

• Device status: Multi-color visual indication
• Device test and reset: Pushbutton to call up local test patterns and reset device

Optics

• Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
• Binning: Tight color and flux binning
• Calibration: Full Gamut Pixel Calibration
  *Figure obtained under manufacturer's test conditions.

Photometric Data

• Color resolution: 16 bits per color (48 bits per pixel)
• Viewing angle: 120° x 120° (half-peak)
• Pitch (pixel center-to-center): 60.00 mm
• Total output, calibrated mode: 750 nits (fixtures placed in continuous surface)
• Luminous output, calibrated mode: 2250 lumen per square meter
• LED Array VC-Grid 60 8x8: 8 x 8
• LED Array VC-Grid 60 4x4: 4 x 4

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

P3 Video Processing

• Brightness control
• Gamma correction and control
• Color temperature control
• Color space control
• Calibration processing
• Synchronization

Signal Protocol

• Martin P3 (via Martin P3™ PowerPort) or DMX (direct)

Construction

• Base: Black FR4 circuit board
• Transparency through module (unmasked area): 8x8 models 49%, 4x4 models 53%
• Protection rating: IP20
• RoHS compliant
