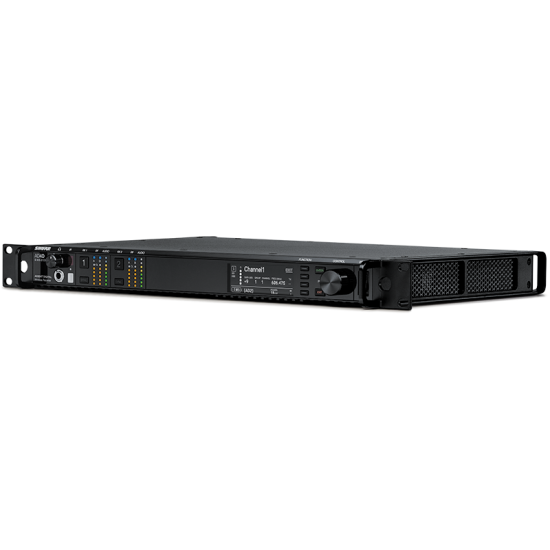

Shure - AD4D

Shure - AD4D

Compatible with all AD series and ADX series transmitters.

• Works with Axient® Digital Wireless Systems
• Features networked control and signal routing options, plus mobile monitoring and control capabilities
• Available with or without accessories
• Wide tuning range up to 184 MHz
• True digital diversity reception per channel for drop-out resistance
• Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
• Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
• Configurable Ethernet switch for redundant Dante or AES67 digital output
• AES3 output
• Channel Quality meter displays RF signal-to-noise
• Locking AC connectors
• DC module version available to support redundant power
• Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.
• The AD4D Two-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments.
• Networked control, AES3 + AES67 + Dante™ output, and signal routing options bring a new level of management and flexibility to your entire workflow.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

• Product Series: Axient Digital
• Usage Environments: Theater Stage
• Optional Accessories: AD610

Wireless & Transmission

• Bias Via BNC: Yes
• Dante Audio Network Interface: Yes
• Network Ability: DHCP, Link-local, Static
• Antenna Cascade: Yes
• Operating Range: 100m

Audio & Connectivity

• Line Mic Switch: Yes
• Phantom Power Protection: Yes
• Receiver Types: Dual
• Media Control System Connection: No
• Connector: 3-Pin XLR

Physical Specs

• Weight: 4800 g
• Dimensions: 483 mm (Width) × 44 mm (Height) × 333 mm (Depth)
• Component: Wireless Receiver
• Color: Black

Controls & Features

• Logic Output: False
• Frequency Band: A (470-636 MHz) or B (606-810 MHz)
• Included Power Supply: EU
• On/Off Switch: True
• Mute Switch: False
• Status Indicator: LED
