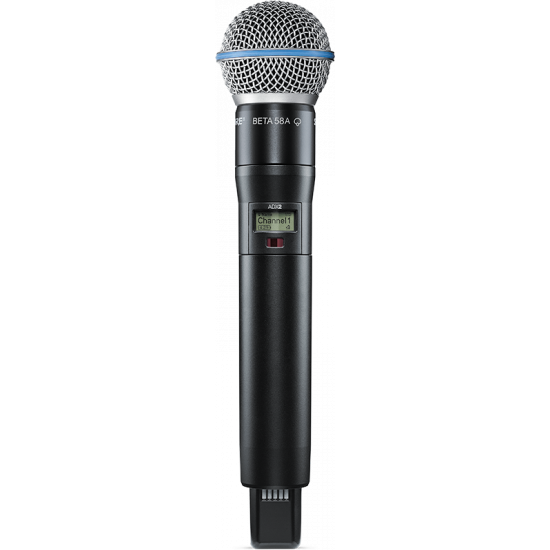

Shure - ADX2/B58

Shure - ADX2/B58

ADX2/B58, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

Features

• Ability to transmit RF signal on two discrete carriers
• Optional 50mW High Power mode for driving increased power on a single frequency
• Durable, moisture-resistant, lightweight metal case in black finish
• Up to 6.5 hours of runtime with SB920A rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
• External contacts for docked charging with optional fully covered radome
• Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
• Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
• Encryption-enabled, secure transmission

• Product series: Axient Digital
• Usage Environments: Theater Stage
• Optional Accessories: SB913
• Battery Life Lithium: 9 h (up to)
• Audio Mute: yes
• Detachable Antennas: no
• Switchable RF Power: yes
• Frequency Diversity: no
• High Density Mode: yes
• Interchangeable Handheld Capsule: Interchangeable
• Form Factor: Handheld
• Charger Options: Docking Charger
• Operating Range: n/a
• Battery Life Note: NOTE: Frequency band and power output dependent
• Encryption: yes, AES-256
• Transmission: Digital in UHF
• Weight: 179 g
• Width: 51 mm
• Height: 254 mm
• Depth: 51 mm
• Component: wireless_transmitter
• Color: black
• Logic output: false
• Frequency band: G56 (470-636 MHz) or K55 (606-694 MHz)
• On/Off switch: true
• Mute switch: false
• Status indicator: LED
