Shure - AD1

Shure - AD1

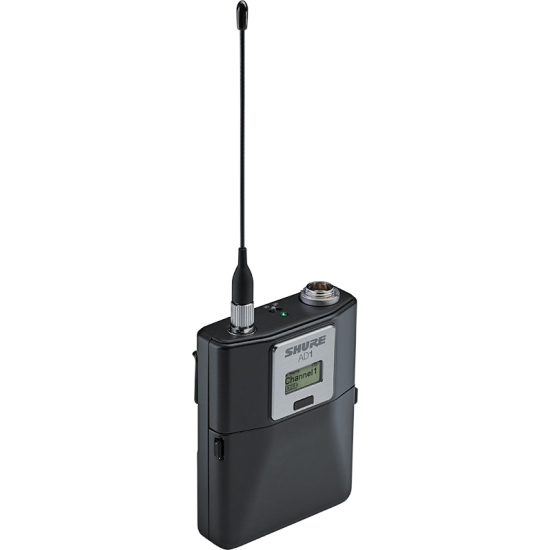

AD1 delivers impeccable audio quality and RF performance with wide-tuning, High Density mode, and encryption. Features durable metal construction, optional rechargeable power with dockable charging, and TA4 and LEMO3 connector options.

• Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
• Encryption-enabled, secure transmission
• Two connector options: TA4 and LEMO3
• Detachable ¼-wave antenna
• AA or SB900B lithium-ion rechargeable batteries for convenient power options
• External contacts for docked charging
• The AD1 is a wireless bodypack transmitter compatible with Axient® Digital Wireless Systems.

With breakthrough RF performance and wide tuning up to 184 MHz, the AD1 puts professional-quality wireless digital audio within reach.

When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

• Product Series: Axient Digital
• Usage Environments: Theater Stage
• Optional Accessories: SB900B

Battery & Power

• Battery Life (Lithium): Up to 9 hours
• Battery Life (Alkaline): Up to 8 hours
• Battery Life Note: Frequency band and power output dependent
• Battery Status: Multi-Color LED, HH:MM (Hours and minutes)
• Charger Options: USB Charger

Wireless & Transmission

• Audio Mute: Yes
• Detachable Antennas: Yes
• Switchable RF Power: Yes
• Frequency Diversity: No
• High Density Mode: Yes
• Encryption: Yes, AES-256
• Transmission: Digital in UHF
• Operating Range: N/A

Physical Specs

• Form Factor: Bodypack
• Weight: 155 g
• Dimensions:
  • Width: 66 mm
  • Height: 86 mm
  • Depth: 23 mm
• Color: Black

Connectivity & Controls

• Component: Wireless Transmitter
• Logic Output: False
• Frequency Band: K55 (606-694 MHz) or G56 (470-636 MHz)
• Connector: TQG (TA4F, 4-Pin Mini)
• On/Off Switch: Yes
• Mute Switch: No
• Status Indicator: LED
