Shure - AD3 Shure - AD3 Shure - AD3 Shure - AD3 Shure - AD3
Shure - AD3

Shure - AD3

Price on Request
Availability:
View options
Art. code
SU-37.AD3
Grouped product items
Product Name Qty
Shure | AD3 - G56 (470-636 MHz) - Plug-On Transmitter

Delivery:
Ca. 2 weeks*

Price on Request
Shure | AD3 - K55 (606-694 MHz) - Plug-On Transmitter

Delivery:
Ca. 2 weeks*

Price on Request

Shure - AD3

Gather and report news. Capture audio for film and television. Secure all the comments from the interview. But do so with impeccable audio quality and RF performance while taking advantage of wide-tuning and encryption with an Axient Digital plug-on microphone transmitter. Take any wired microphone and make it wireless for any number of reasons and purposes. Axient Digital AD3 plug-on wireless transmitter. Portable, professional quality.

  • Axient Digital plug-on wireless transmitter
  • Patent-pending locking XLR connector for secure, wobble-free connection
  • OLED display with easy-to-navigate menu and controls
  • Rugged metal construction that is resistant to dust and moisture
  • Automatic input staging optimizes gain setting
  • AES 256-bit encryption-enabled for secure transmission
  • 300 feet (100 meter) line-of-sight operating range
  • Selectable modulation modes optimize performance for spectral efficiency
    • Standard – Optimal coverage, low latency
    • High density – Dramatic increase in max system channel count
  • Switchable power levels (2/10/35 mW, region dependent)
  • AA battery (included) or Shure SB900B rechargeable battery (sold separately) options
  • Optional Shure SB900B lithium-ion rechargeable battery option provides up to 8 hours of continuous use, precision metering, and zero memory effect
  • External power and charging option over USB-C port
  • Switchable phantom power (off, +12V, +48V)
  • Included: 2 x AA alkaline batteries, USB-A to USB-C cable, belt clip/pouch, and zippered bag for storag

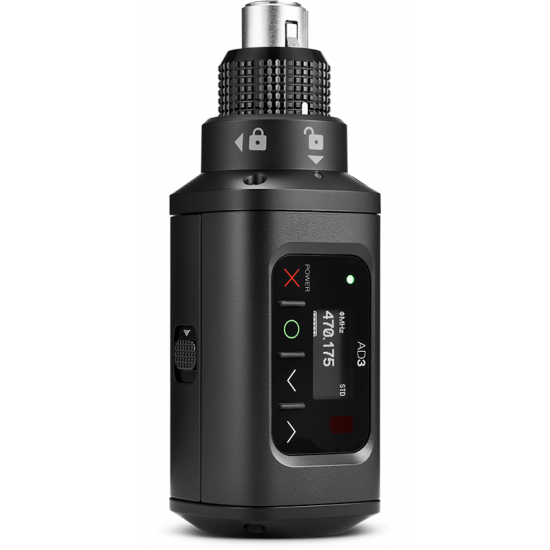

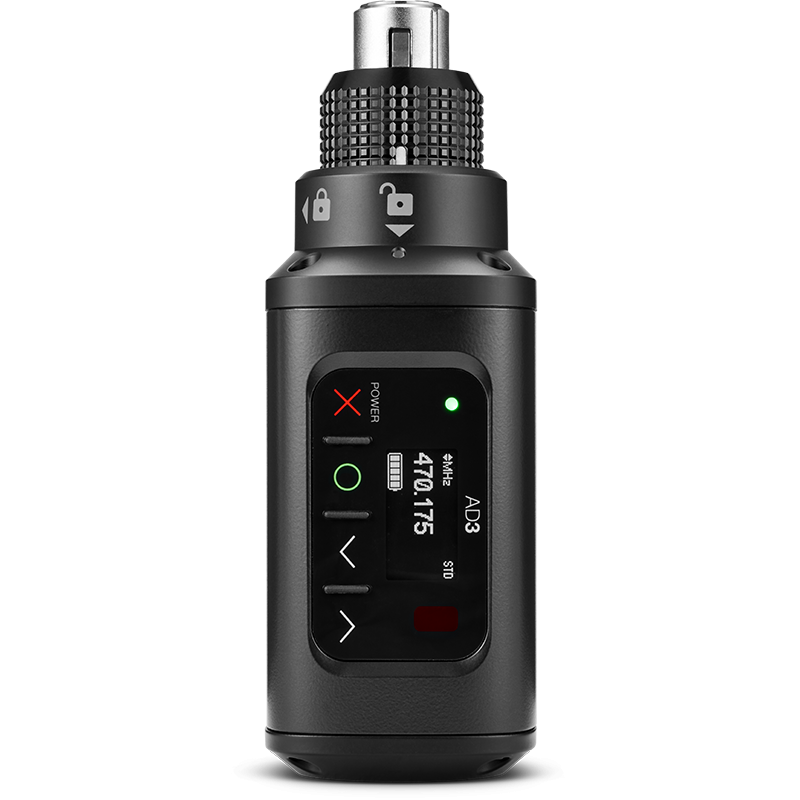

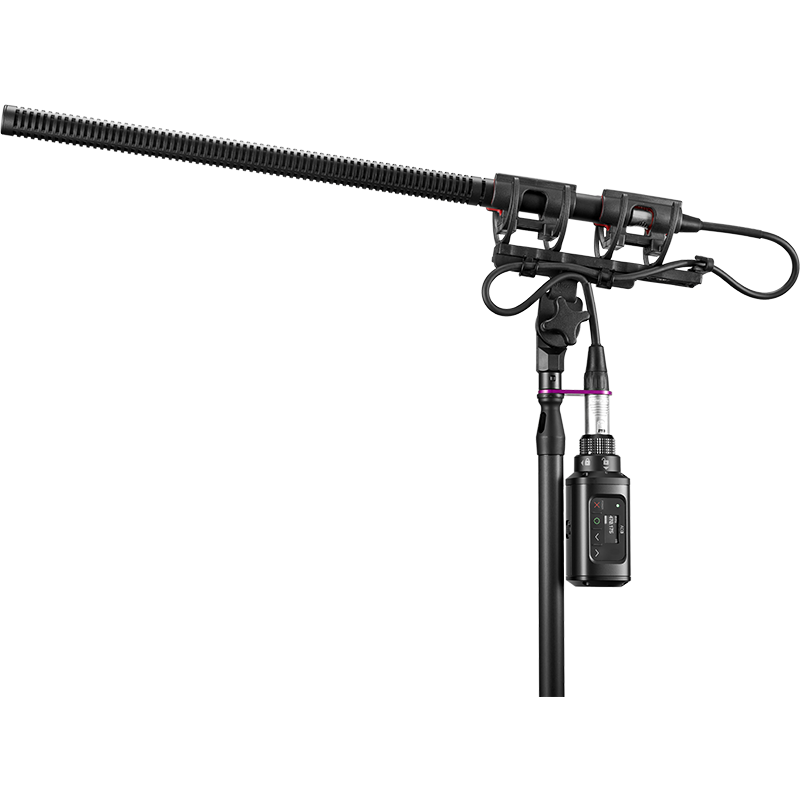

The Axient Digital AD3 plug-on wireless transmitter transforms any microphone into an advanced, portable Axient Digital AD Series wireless microphone, delivering impeccable audio quality and RF performance, wide-tuning, and encryption features. Compatible with Axient Digital AD4D and AD4Q receivers in Standard or High Density modes, AD3 plug-on microphone transmitter features a custom, fast, and secure XLR connector design, support for both AA and Shure SB900-series rechargeable battery options, and simple, user-friendly controls and menus. The AD3 is housed in a lightweight, rugged, metal chassis and is designed to resist sweat, moisture, and debris.

  • Product Series: Axient Digital
  • Optional Accessories: RPW120

Battery & Power

  • Battery Life (Lithium): Up to 8 hours
  • Battery Life (Alkaline): Up to 7 hours
  • Battery Life Note: Frequency band and power output dependent
  • Battery Status: Multi-Color LED, HH:MM (Hours and minutes)
  • Charger Options: Networked Charger

Wireless & Transmission

  • Audio Mute: Yes
  • Switchable RF Power: Yes
  • Encryption: Yes, AES-256
  • Transmission: Digital in UHF
  • Operating Range: N/A

Physical Specs

  • Form Factor: Plug-on
  • Weight: 240 g
  • Dimensions: 44.50 mm (Width) × 126 mm (Height) × 44.50 mm (Depth)
  • Component: Wireless Transmitter
  • Color: Black

Connectivity & Controls

  • Logic Output: False
  • Frequency Band: G56 (470-636 MHz) or K55 (606-694 MHz)
  • On/Off Switch: False
  • Mute Switch: False
  • Connector: 3-Pin XLR
