L-Acoustics - LA2Xi

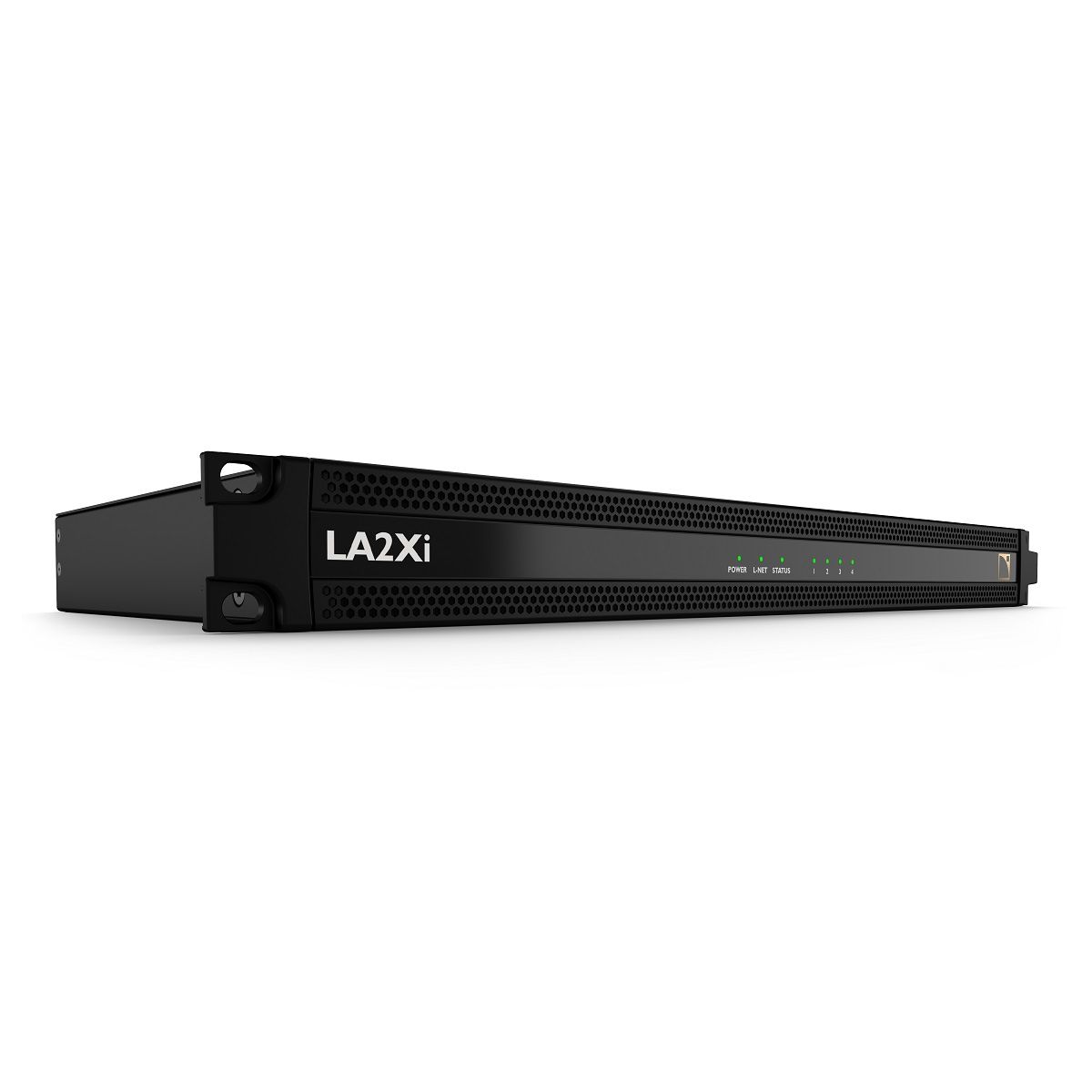

Primarily designed to power L-Acoustics compact loudspeakers, the bridgeable 4 x 4 channel LA2Xi offers anywhere from four to one output, allowing to also drive medium and large format loudspeakers, in full or reduced SPL, for various types of applications. Packaged in a 1U chassis for optimized rack space, LA2Xi is the ideal choice to power background music in leisure installations, distributed fill systems in performing arts centers, studio monitors, private auditoriums and more.

Underneath the streamlined front panel lies the same DSP engine as the flagship touring LA12X amplified controller, including features for loudspeaker management, protection and monitoring as well as a comprehensive set of tools for system adjustment and calibration. In addition to AES and analog inputs, the Milan-certified LA2Xi supports AVB with seamless network redundancy, ensuring utmost reliability. Tailor-made for integration applications, LA2Xi provides four user-assignable GPIO and a 24 V DC backup power for the DSP card, all on terminal blocks, enabling external control and monitoring, and ensuring fast recovery in case of power loss.

Amplification and power supply

  • Amplification class: High efficiency class D
  • Output power, all channels loaded:

Peak output power 12 dB Crest Factor, Sine Burst, 1kHz, 2 ms

  • 4 channels at 4 Ω: 710 W
  • 4 channels at 8 Ω: 370 W
  • 4 channels at 16 Ω: 190 W
  • 2 channels at 8 Ω: 1400 W
  • 1 channel at 4 Ω: 2750 W

Output power 200 ms, Sine burst, 1 kHz, 200 ms, < 1 % THD 640 W 360 W 190 W 1260 W 2550 W

  • 4 channels at 4 Ω: 640 W
  • 4 channels at 8 Ω: 360 W
  • 4 channels at 16 Ω: 190 W
  • 2 channels at 8 Ω: 1260 W
  • 1 channel at 4 Ω: 2550 W
  • Power supply model: Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC)
  • Mains rating: 100 V - 240 V ~ ±10%, 50-60 Hz

Audio specifications

  • Frequency response (20 Hz - 20 kHz, 8 Ω load, 60 W output power): ± 0.25 dB
  • Distortion THD+N (20 Hz - 10 kHz, 8 Ω load, 60 W output power) < 0.1%
  • Output dynamic range (20 Hz - 20 kHz, 8 Ω, A-weigthed, Digital input): > 117 dB
  • Noise level (20 Hz - 20 kHz, 8 Ω, A-weigthed, Digital input): < - 81 dBV

DSP

  • Digital Signal Processor (DSP) Gen.4 Dual SHARC 32-bit, floating point, 96 kHz sampling rate
  • I/O routing: 4x4 routing and summation matrix
  • Per output channel:
    • Built-in EQ station with 8 IIR, 3 FIR EQ filters
    • Array morphing (LF contour, zoom factor), Air absorption compensation filters
    • Internal IIR and FIR EQ algorithms for speaker phase linearization and improved impulse responses
    • L-DRIVE advanced system protection (excursion, temperature and over-voltage)
    • Output delay from 0 to 1000 ms

Circuits protection

  • Mains and power supply: Over and under voltage / over temperature / overcurrent / inrush current protection
  • Power outputs: Over current limiting / DC / short circuit / over temperature

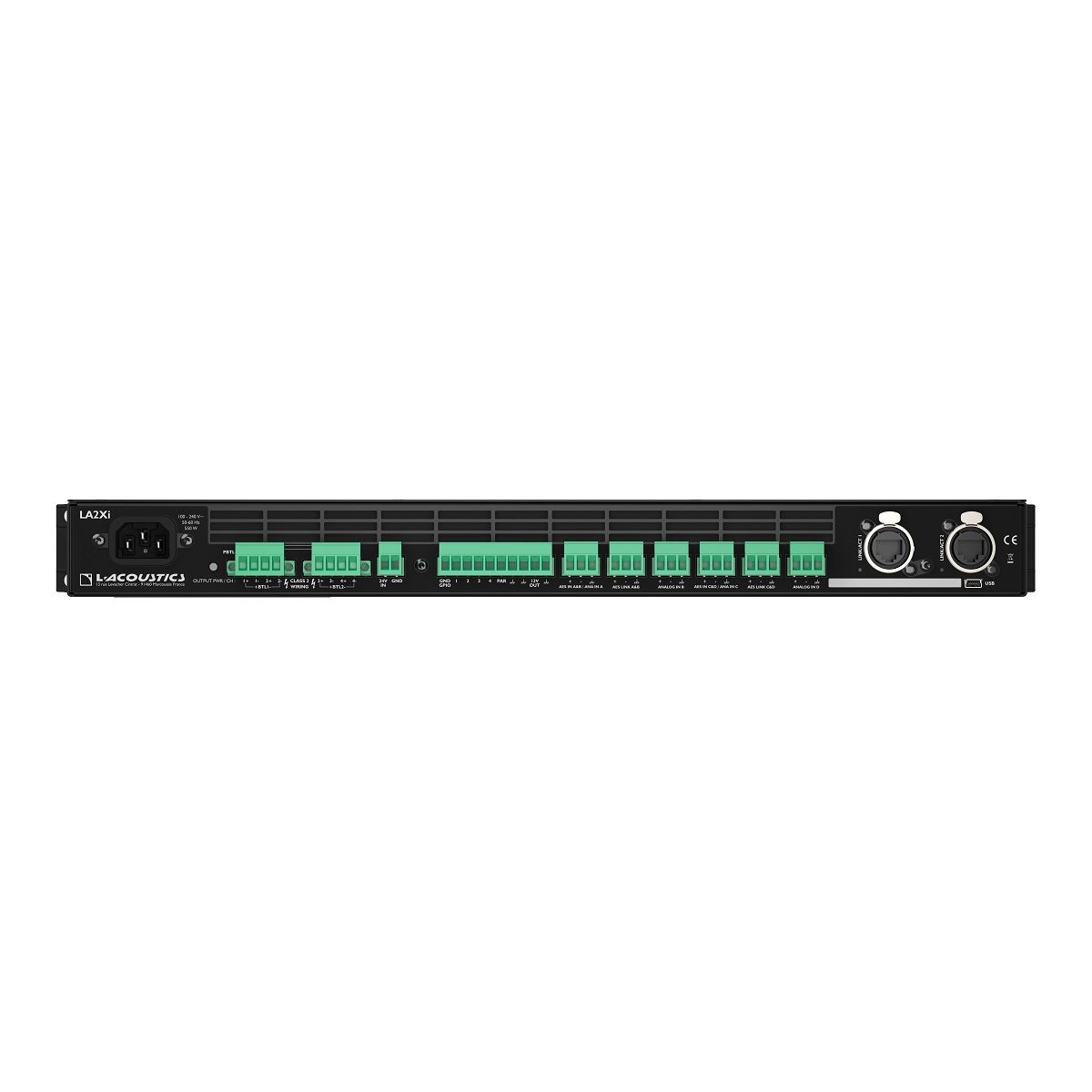

Inputs / Outputs

  • Analog input: 4 channels, 3-pin Phoenix Euroblock
  • AES / EBU input: 4 channels (2xAES3), 3-pin Phoenix Euroblock (44.1 - 192 kHz sampling rate) With active link and bypass relay
  • AVB input with support of Milan seamless dual networking: 4 channels 48kHz / 96 kHz from 1 stream of up to 8 channels
  • Loudspeaker output: 2 x 4-pin Phoenix Euroblock

Remote control and monitoring

  • Network connection: Dual-port Ethernet Gigabit interface
  • General Purpose Inputs / Outputs (GPIO): 4 GPIO, isolated optocoupler inputs, isolated relays contacts
  • External DSP backup voltage input: 24 V DC, 2-pin Phoenix Euroblock
  • Third-party management solutions: QSC® / SNMP / Extron® / Crestron®

Operating conditions

  • Temperature: Room temperature from 0º C / 32º F to +50º C / 122º F

Physical data

  • Height: 1U
  • Weight: 4.40 kg / 9.70 lb
