Neutrik | NO2-4FDW-A - Chassis Connector Female IP65

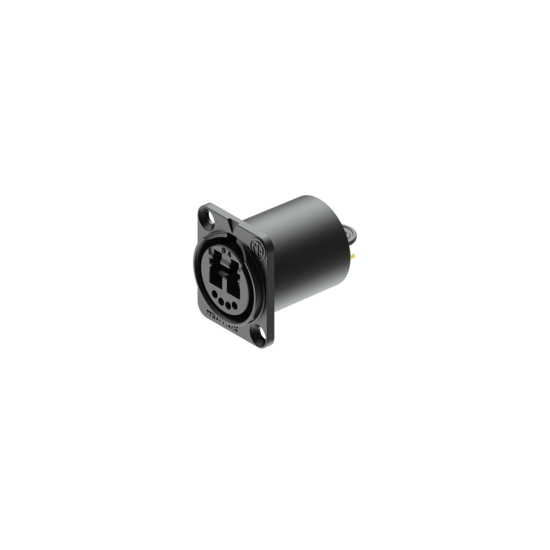

Chassis connector with black chromium plating, 4 solder contacts and 1 LC-Duplex feedthrough socket, waterproof acc. to IP65 ingress protection in mated condition with SCDP-*.

The chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

Features
  • Suggested OEM equipment connector due to LC front compatibility
  • Designed as feedthrough with automatic sealing shutter
  • Shutter with silicone gasket protects optical connection from dust and dirt
  • Accommodates standard LC connectors on the rear for simple installation
  • Connection on the front side either by rugged opticalCON or standard LC connector
  • The low cost of the chassis connector makes it a viable alternative to traditional connectors in fixed installations
  • IP65 ingress protection in mated condition with SCDP-*
  • Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard:
    • Multimode - black
    • Single mode PC - blue
    • Single mode APC - green

Product: NO2-4FDW-A
Connection Type: LC-Duplex Feedthrough
Gender: female

Electrical

  • Contact resistance: < 7 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GΩ (initial)
  • Rated current per contact: 6 A
  • Rated voltage: < 50 V (1)

Mechanical

  • Insertion force: < 45 N
  • Withdrawal force: < 45 N
  • Lifetime (typ.): 5000 mating cycles
  • Locking force: 1000 N
  • Locking device: Push-Pull
  • Mounting direction: Front mounting
  • Chassis shape: D

Material

  • Contacts: Bronze (CuSn6)
  • Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium
  • Split sleeve: ceramics

Environmental

  • Temperature range: -40 °C to +75 °C
  • Protection class: IP65 in mated condition in combination with SCDP-*

Optical

  • Insertion loss: < 0.4 dB / connection
  • Optical connector: LC-Duplex Feedthrough
